4 Multirange Inputs
Four analog input channels support current, voltage, thermocouple, RTD, and resistance signals for flexible measurement integration.
Schneider

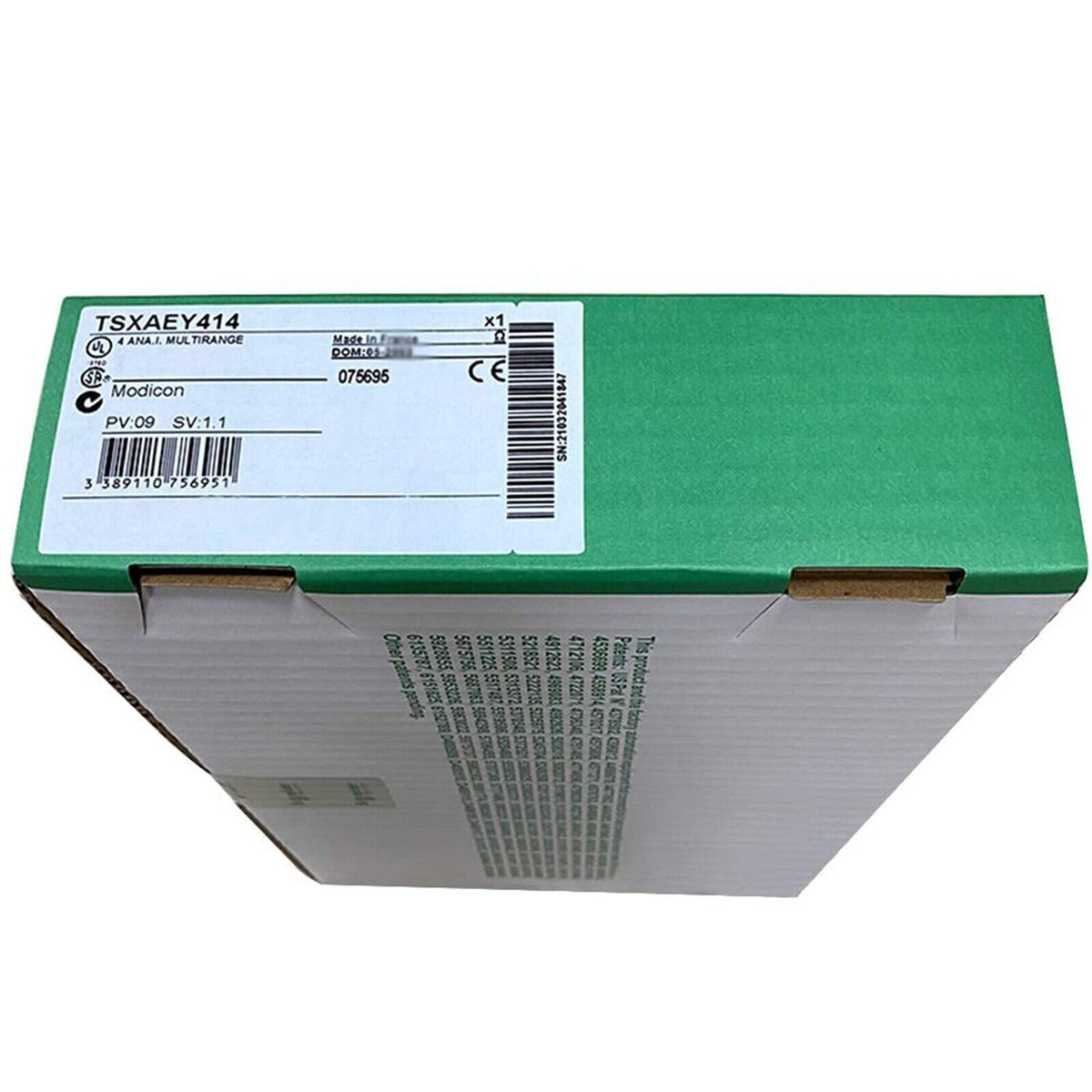

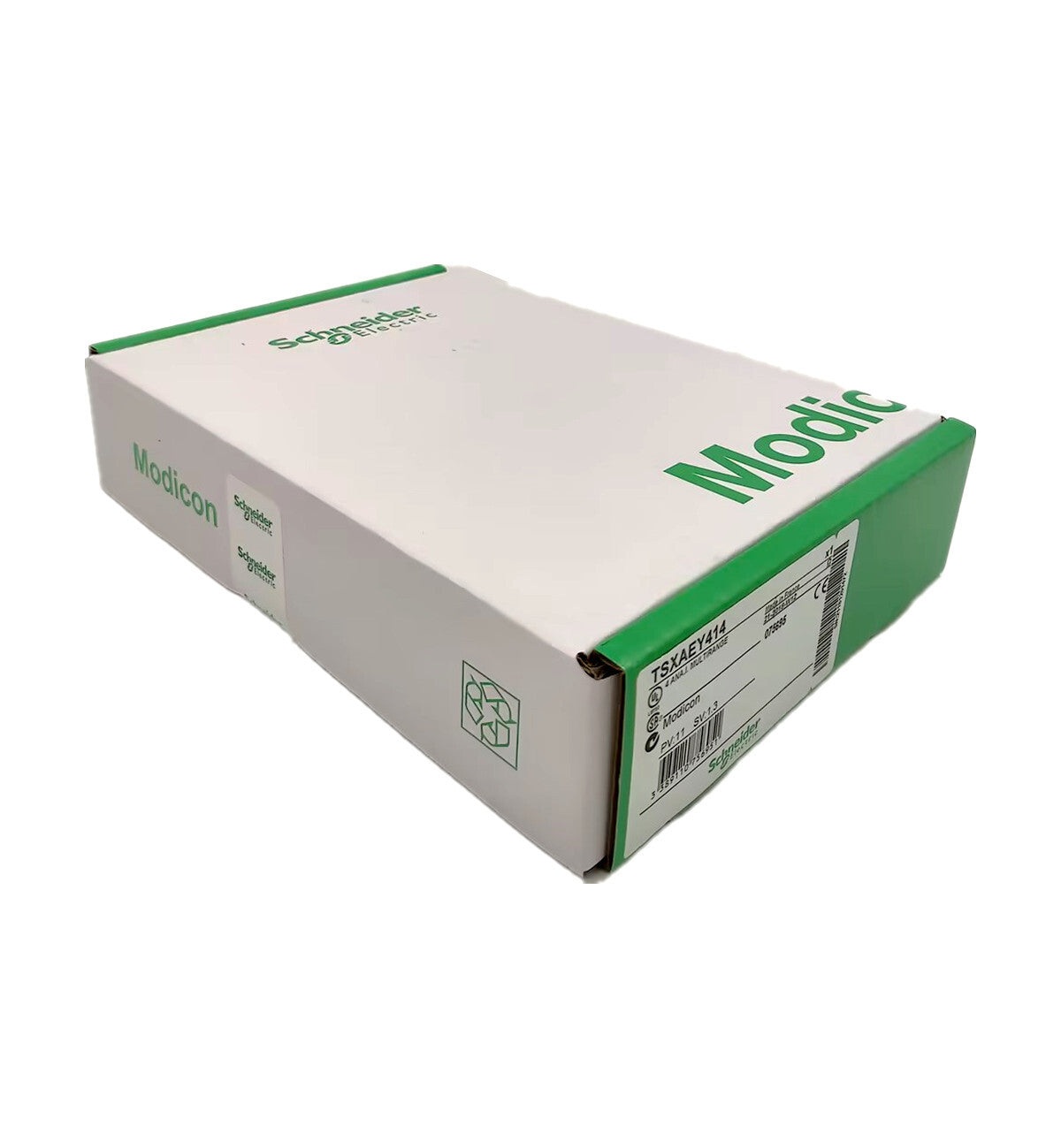

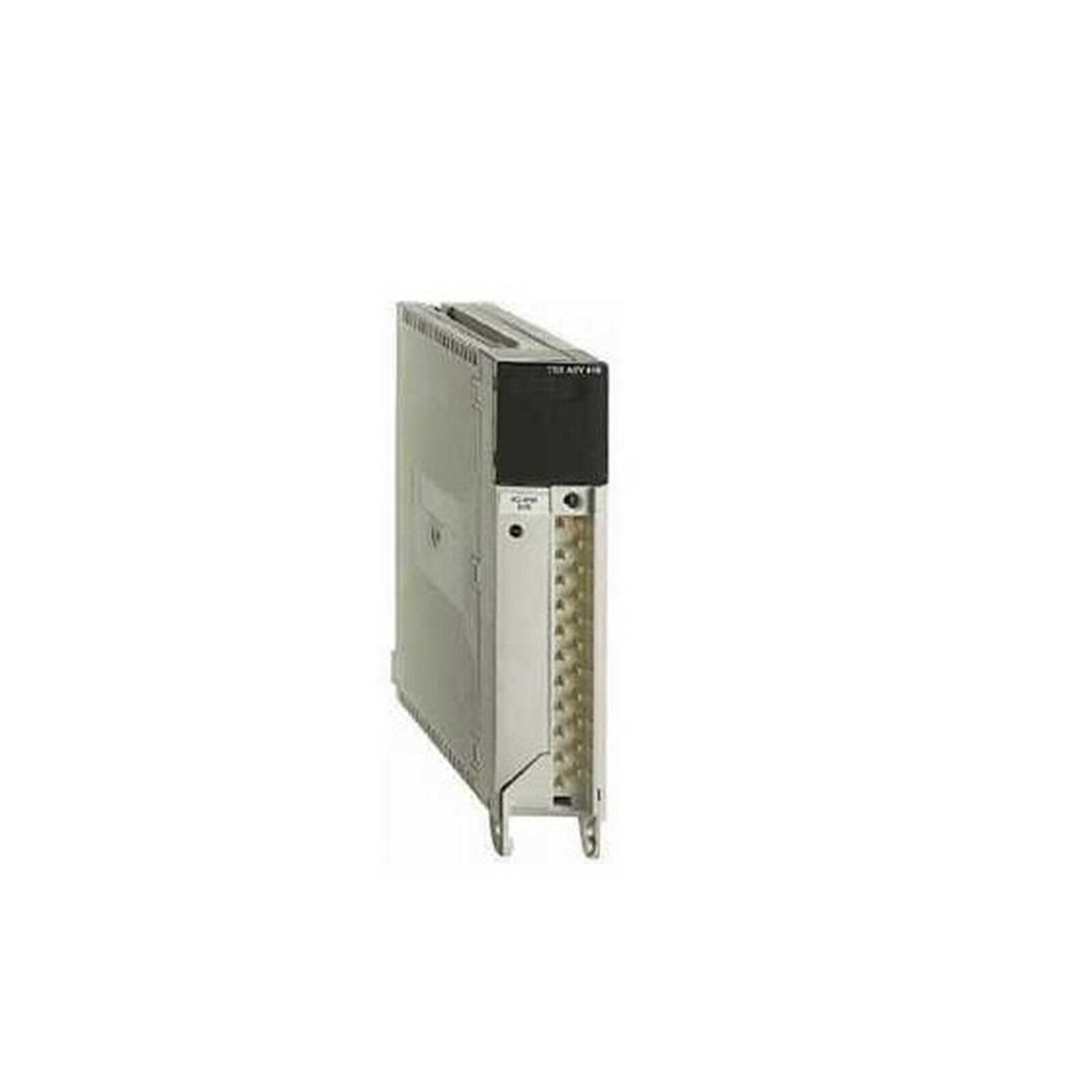

Schneider TSXAEY414 Analog Input Module 4 Channels 4-20mA 0-10V
$162.23
Available
PRODUCT GALLERY
01 / 4
Product images for part identification
Schneider
Schneider TSXAEY414 Analog Input Module 4 Channels 4-20mA 0-10V
PRODUCT PRICE
USD
$162.23
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Schneider |
| Model Number | TSXAEY414 |
| Product Category | Analog Input Module |
| Product Family | Modicon Premium |
| Number of Analog Inputs | 4 |
| Input Signal Types | Current 4-20 mA; Voltage +/-10 V, 0-10 V, 0-5 V, 1-5 V; Thermocouple; RTD; Resistance |
| Analog/Digital Conversion | 16 bits |
| Nominal Read Cycle Time | 550 ms |
| Isolation (Channels to Bus) | 1780 Vrms |
| Current Consumption at 5 VDC | 660 mA |
| Operating Temperature | 0°C to +60°C |
Key Features
16-Bit Conversion
Provides 16-bit analog-to-digital conversion resolution for precise signal measurement across supported ranges.
4-20 mA and 0-10 V
Supports common industrial current and voltage signal ranges including 4-20 mA and 0-10 V.
Channel-to-Bus Isolation
Offers 1780 Vrms isolation between input channels and the bus for noise immunity in industrial environments.
Thermocouple and RTD Support
Accepts multiple thermocouple types and Pt100/Pt1000/Ni1000 temperature probes for temperature measurement applications.
Applications
- Process signal acquisition in Modicon Premium systems
- Temperature measurement via thermocouples and RTDs
- 4-20 mA transmitter input integration
- 0-10 V analog sensor interfacing
- Industrial automation data acquisition
- SCADA and monitoring system input expansion
- Flow, pressure, and level signal monitoring
Purchase Information
We support online purchase of the Schneider TSXAEY414 Analog Input Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Schneider TSXAEY414? The TSXAEY414 is a Modicon Premium analog input module with 4 multirange input channels and 16-bit conversion.
How many input channels does it have? It has 4 analog input channels.
What signal types are supported? It supports current 4-20 mA, voltage +/-10 V, 0-10 V, 0-5 V, 1-5 V, thermocouple, RTD, and resistance signals.
What is the resolution? The analog-to-digital conversion resolution is 16 bits.
What is the nominal read cycle time? The nominal read cycle time is 550 ms.
What is the isolation rating? Isolation between channels and the bus is 1780 Vrms.
What is the current consumption? The module consumes 660 mA at 5 VDC.
What should be checked before ordering? Verify the required signal type and range, channel count, module compatibility with the existing Premium rack, and wiring configuration for your application.
Need help confirming a model?
Send us your part number and technical requirements.
