4 mm Sensing Distance
Provides a nominal sensing distance of 4 mm for non-contact detection of metal targets in industrial automation.
Schneider
Schneider XS612B1PAM12 Inductive Proximity Sensor 12mm PNP NO M12
$14.20
Available
PRODUCT GALLERY
01 / 2

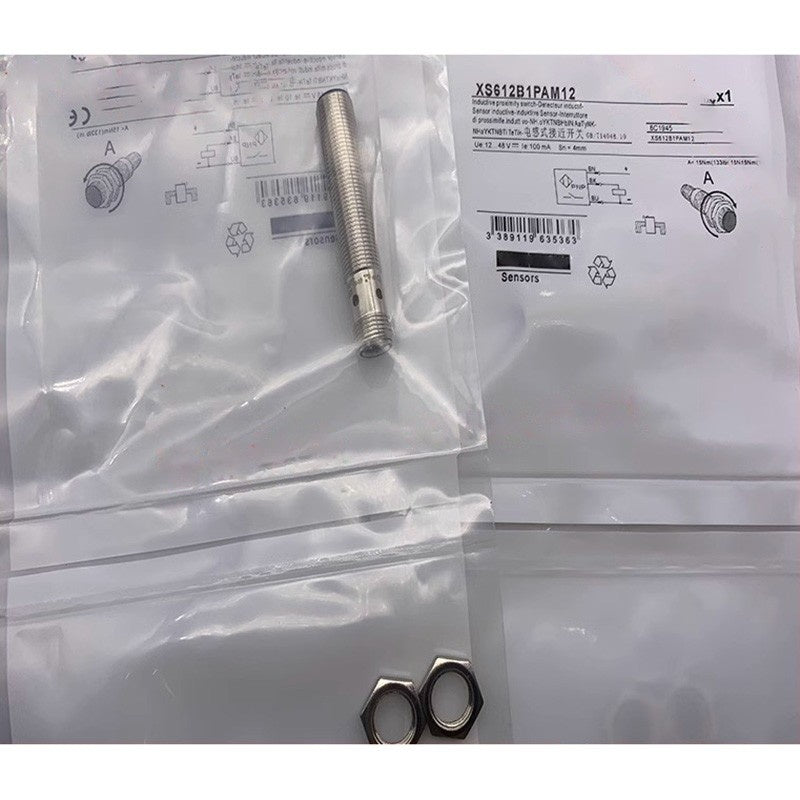

Product images for part identification
Schneider
Schneider XS612B1PAM12 Inductive Proximity Sensor 12mm PNP NO M12
PRODUCT PRICE
USD
$14.20
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Schneider |
| Model Number | XS612B1PAM12 |
| Product Category | Inductive Proximity Sensor |
| Product Family | OsiSense XS 612 Series |
| Sensing Method | Inductive, non-contact |
| Nominal Sensing Distance | 4 mm |
| Output Type | PNP, NO (Normally Open), 3-wire |
| Supply Voltage | 12 to 48 V DC |
| Switching Current | <= 200 mA DC |
| Connection | M12 4-pin male connector |
| Body Material | Nickel-plated brass |
| IP Degree of Protection | IP67, IP69K |
| Operating Temperature | -25°C to +70°C |
| Switching Frequency | <= 2500 Hz |
Key Features
PNP NO Output
PNP normally open output configuration for compatibility with common PLC and control input circuits.
M12 Connector
Equipped with an M12 4-pin male connector for quick and secure electrical connection.
IP67 / IP69K Protection
Rated IP67 and IP69K for protection against dust, water immersion, and high-pressure cleaning.
Nickel-Plated Brass Body
Nickel-plated brass housing provides mechanical robustness in demanding industrial environments.
Applications
- Metal part presence detection
- Conveyor position sensing
- Machine tool end-of-stroke detection
- Assembly line part counting
- Automotive manufacturing fixtures
- Packaging machinery position feedback
- Robotics and automation gripper sensing
Purchase Information
We support online purchase of the Schneider XS612B1PAM12 Inductive Proximity Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Schneider XS612B1PAM12? The XS612B1PAM12 is an inductive proximity sensor in the OsiSense XS 612 series with a 4 mm nominal sensing distance and PNP NO output.
What is the sensing distance? The nominal sensing distance is 4 mm.
What is the output type? The output is PNP, normally open (NO), 3-wire.
What is the supply voltage range? The supply voltage range is 12 to 48 V DC.
What is the connection type? It uses an M12 4-pin male connector.
What is the IP rating? The sensor is rated IP67 and IP69K.
What is the operating temperature range? The operating temperature range is -25°C to +70°C.
What switching frequency does it support? It supports a switching frequency of up to 2500 Hz.
What should be checked before ordering? Verify the sensing distance required for the target material, output logic compatibility with the PLC input, connector type, and environmental protection requirements.
Need help confirming a model?
Send us your part number and technical requirements.
