2.2kW Motor Rating
Specified for 2.2 kW / 3 hp asynchronous motor applications.

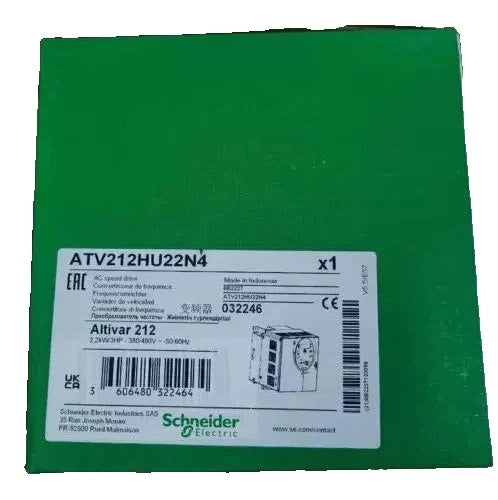

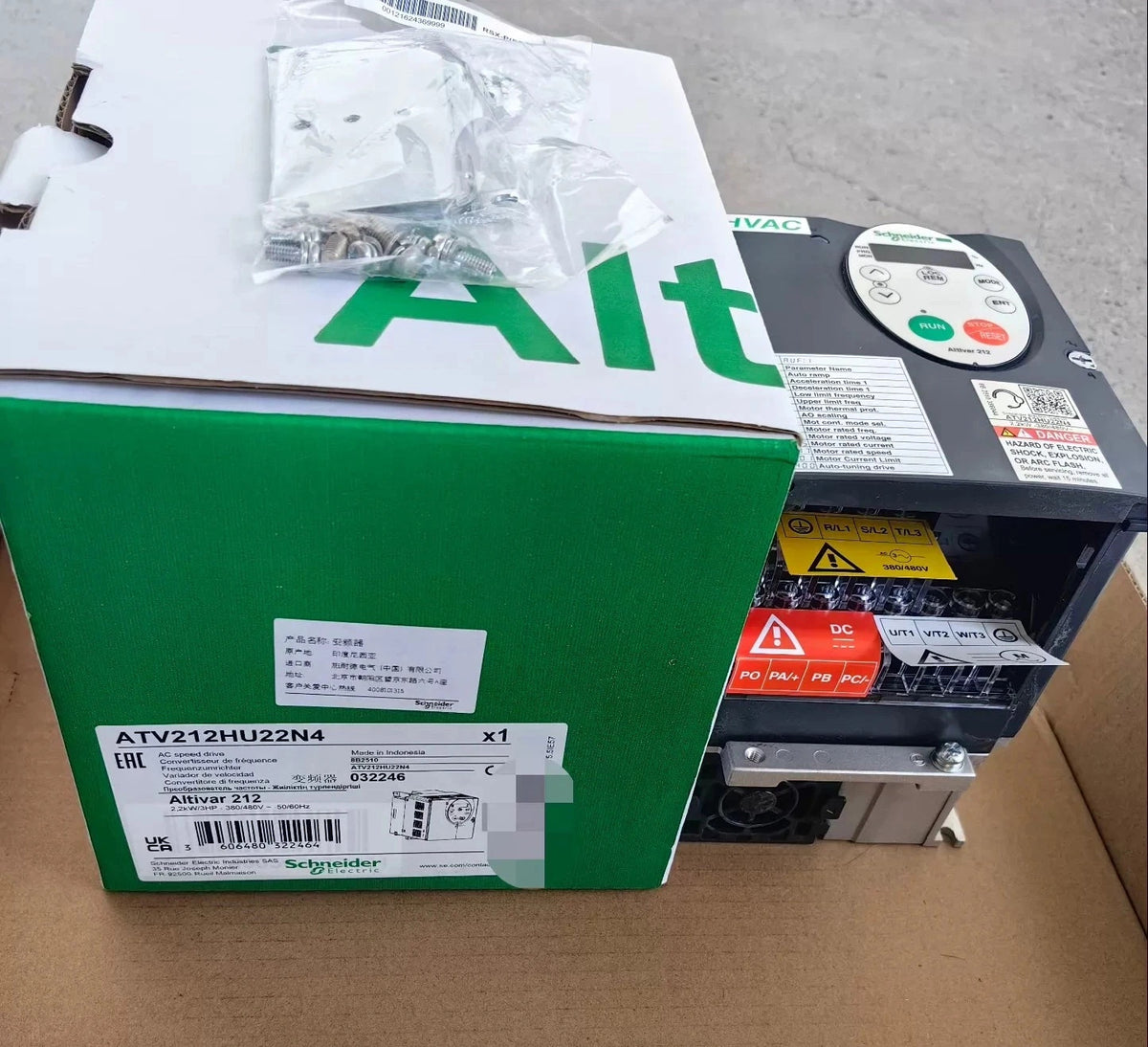

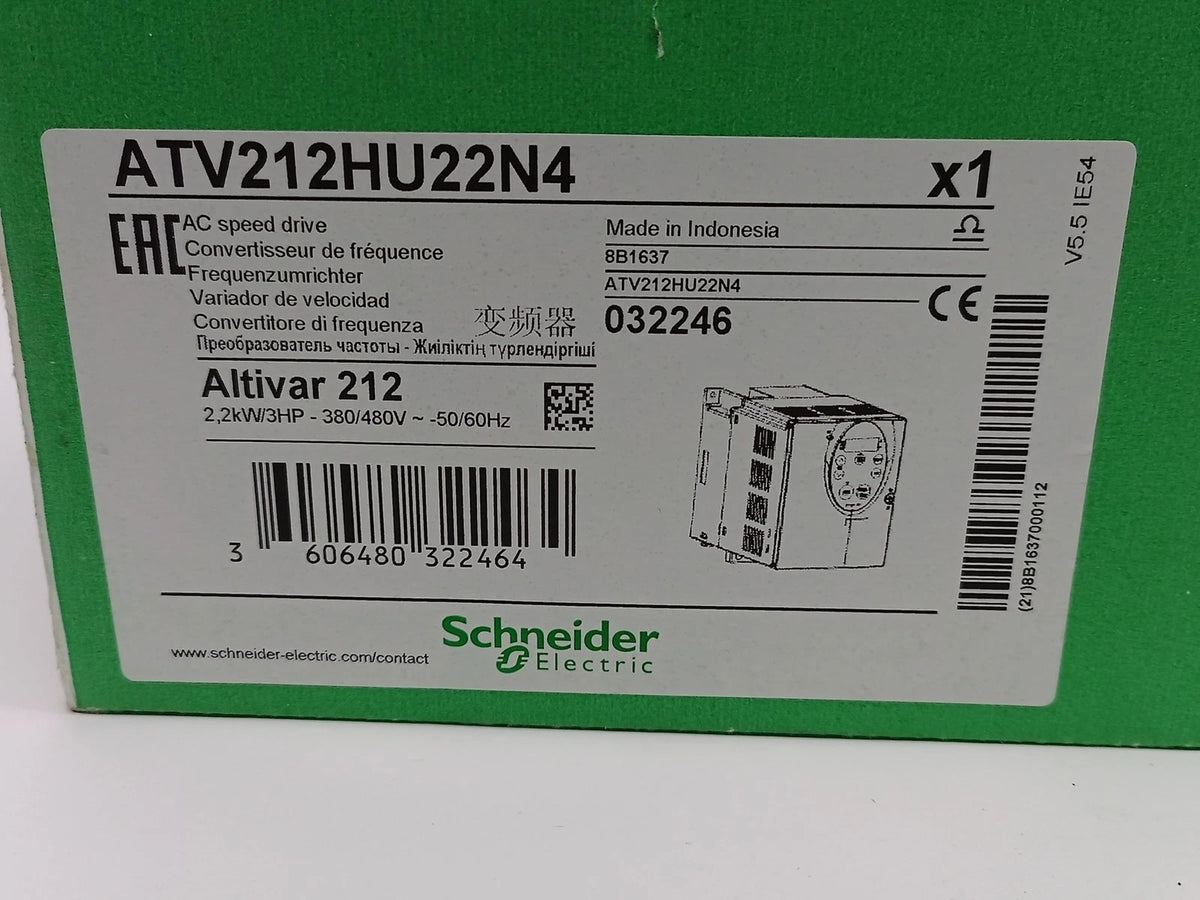

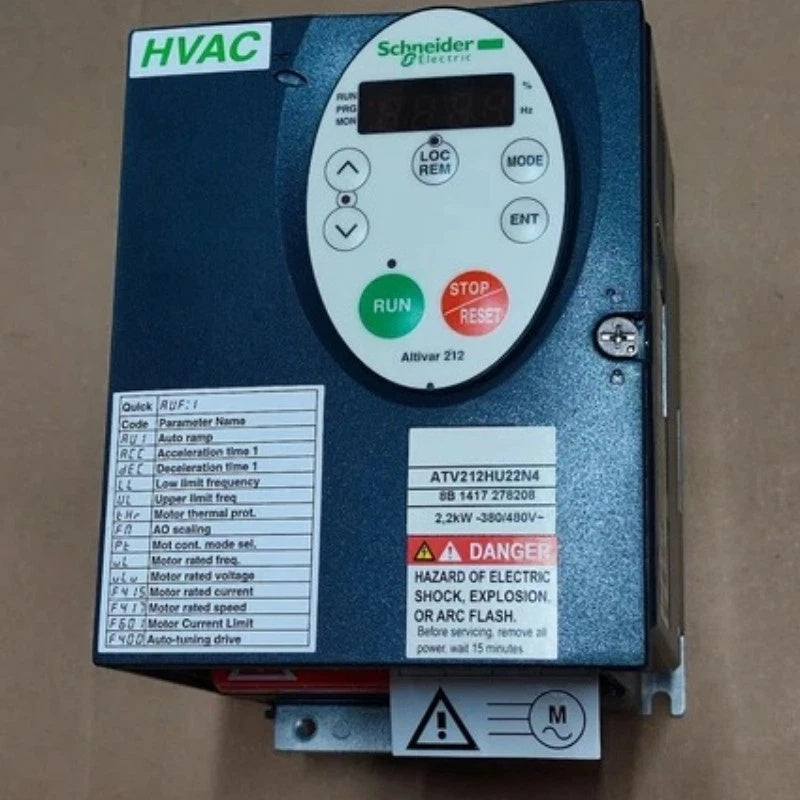

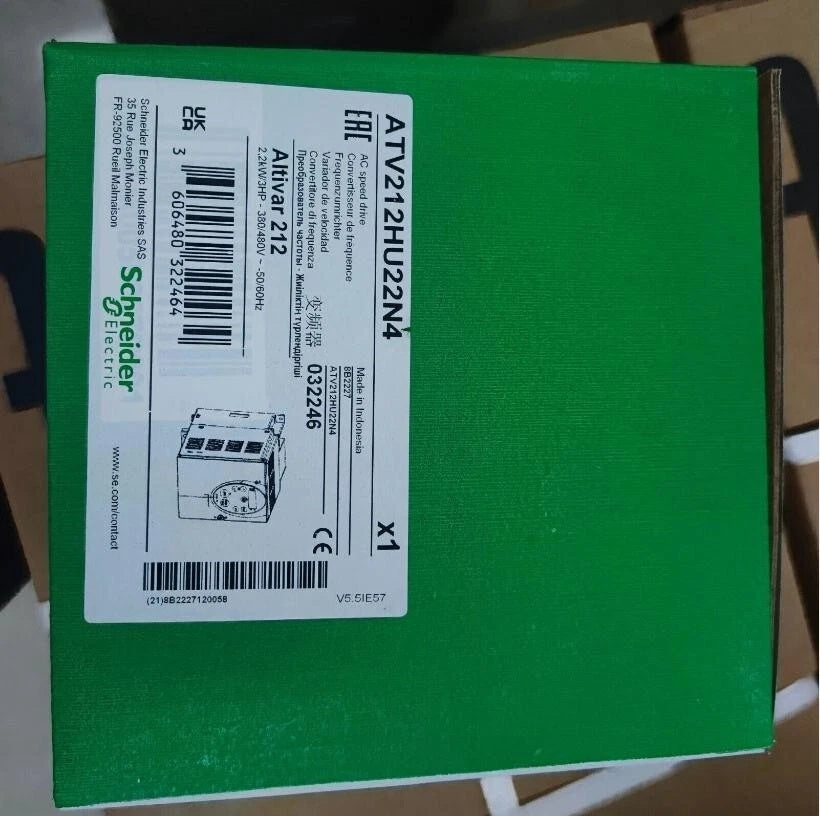

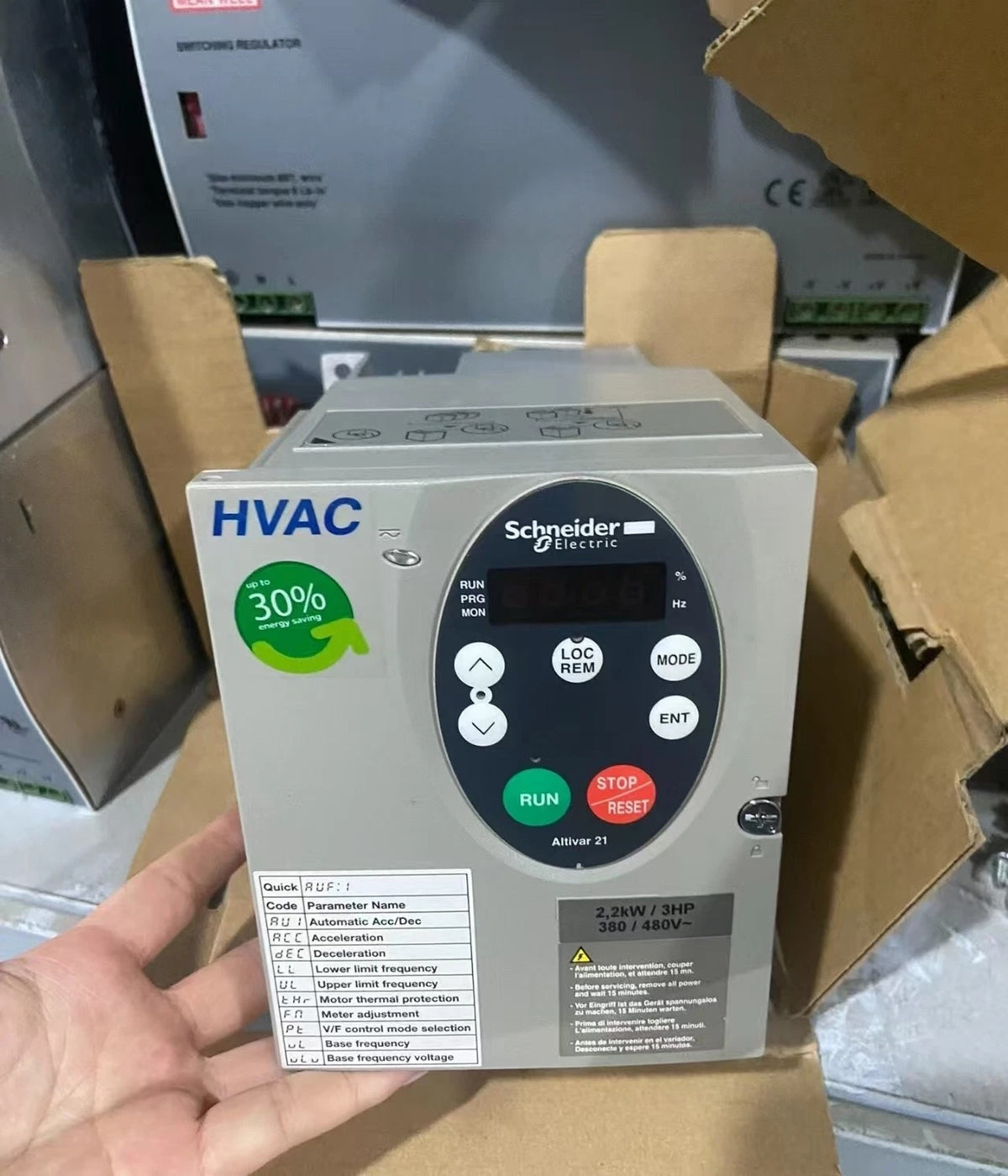

Schneider ATV212HU22N4 Variable Frequency Drive 2.2kW 480V 3-Phase
Available in stock (400)
Regular price
$296.25
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | ATV212HU22N4 |
| Product Category | Variable Frequency Drive |
| Product Range | Altivar 212 |
| Product Type | Variable Speed Drive |
| Product Destination | Asynchronous Motors |
| Specific Application | Pumps and Fans in HVAC |
| Motor Power | 2.2 kW / 3 hp |
| Power Supply Voltage | 380-480 VAC (-15% to +10%) |
| Network Phases | 3-Phase |
| Supply Frequency | 50-60 Hz (-5% to +5%) |
| Line Current | 3.6 A at 480 V / 4.6 A at 380 V |
| Continuous Output Current | 5.1 A at 380/460 V |
| Output Frequency | 0.5-200 Hz |
| EMC Filter | Integrated Class C2 |
| Protection Rating | IP21 |
| Dimensions | 107 × 143 × 150 mm |
| Product Weight | 2 kg |
| Operating Temperature | -10°C to +40°C without derating |
Key Features
380-480VAC Supply
Designed for a three-phase 380-480 VAC power supply with the documented voltage tolerance.
HVAC Pump and Fan Use
The Altivar 212 product data identifies pumps and fans in HVAC as the specific application.
0.5-200Hz Output
The documented speed-drive output frequency range is 0.5-200 Hz.
Integrated C2 EMC Filter
The product data specifies an integrated Class C2 EMC filter.
IP21 Protection
The drive is specified with an IP21 degree of protection under the documented IEC and EN standards.
Applications
- HVAC pump speed control
- HVAC fan speed control
- Building ventilation systems
- Air handling equipment
- Commercial HVAC systems
- Variable-flow pumping applications
- Mechanical ventilation control
- HVAC motor control projects
Purchase Information
We support online purchase of the Schneider ATV212HU22N4 Variable Frequency Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider ATV212HU22N4?
Schneider ATV212HU22N4 is an Altivar 212 variable speed drive specified for asynchronous motors, with pumps and fans in HVAC identified as its specific application.
What motor power is specified for ATV212HU22N4?
The documented motor power rating is 2.2 kW, equivalent to 3 hp.
What supply voltage does ATV212HU22N4 use?
The specified power supply voltage is 380-480 VAC with a documented tolerance of -15% to +10%.
How many supply phases are required?
The product data specifies a three-phase network supply.
What supply frequency is specified?
The specified supply frequency is 50-60 Hz with a tolerance of -5% to +5%.
What is the continuous output current?
The documented continuous output current is 5.1 A at 380/460 V.
What output frequency range is specified?
The documented speed-drive output frequency range is 0.5-200 Hz.
Does ATV212HU22N4 include an EMC filter?
Yes. The product data specifies an integrated Class C2 EMC filter.
What protection rating is specified?
The documented degree of protection is IP21.
What applications can ATV212HU22N4 be considered for?
The manufacturer identifies pumps and fans in HVAC as the specific application. System electrical, motor and installation requirements should be checked before use.
What are the dimensions of ATV212HU22N4?
The documented dimensions are 107 mm wide, 143 mm high and 150 mm deep.
What should be checked before ordering?
Check the complete model number, 380-480 VAC three-phase supply, 2.2 kW motor requirement, current ratings, enclosure requirements, control requirements and installation documentation against the intended system.
