Slot-type Design
5 mm slit width slot-type photomicrosensor for detection of passing objects.

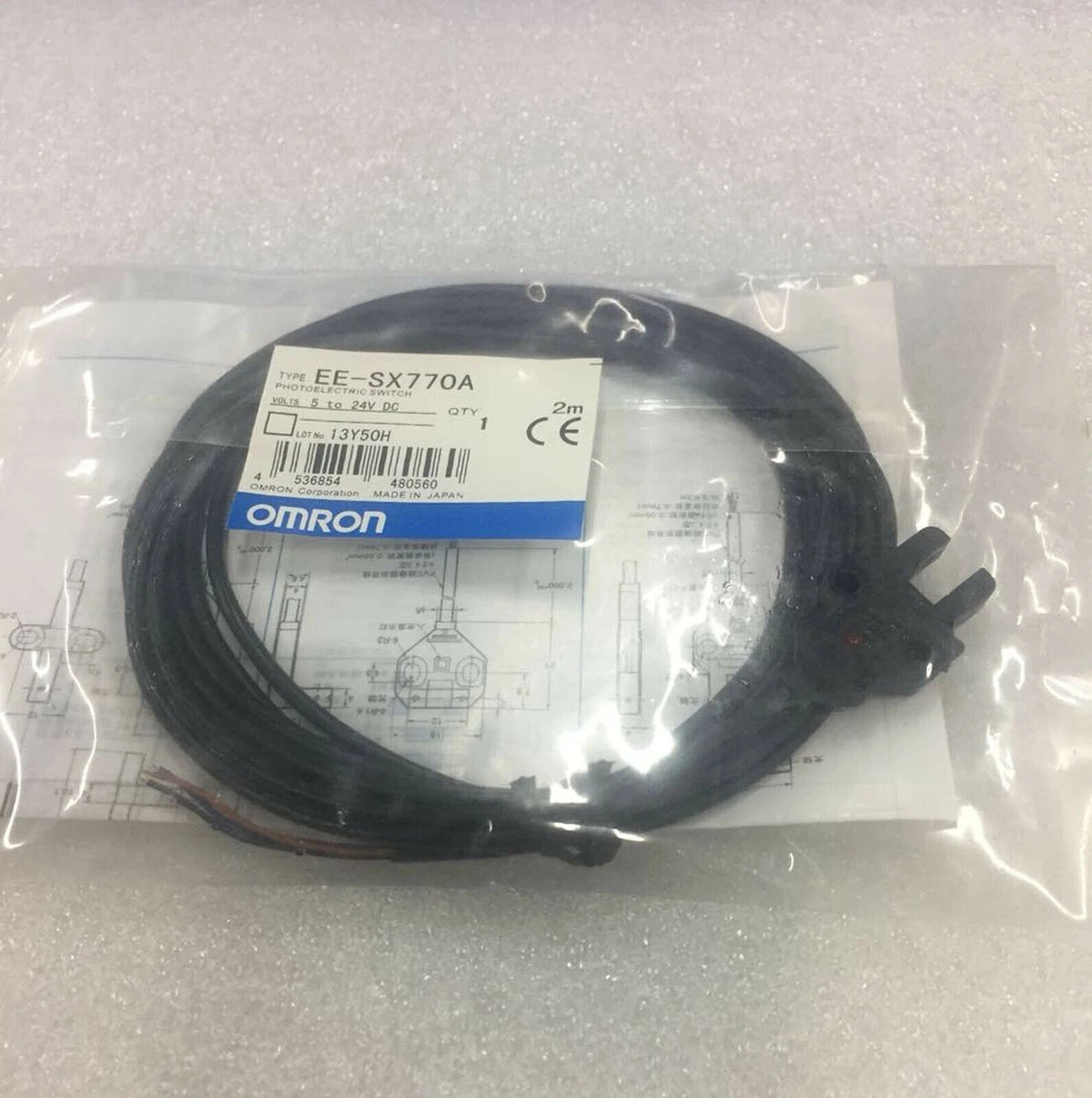

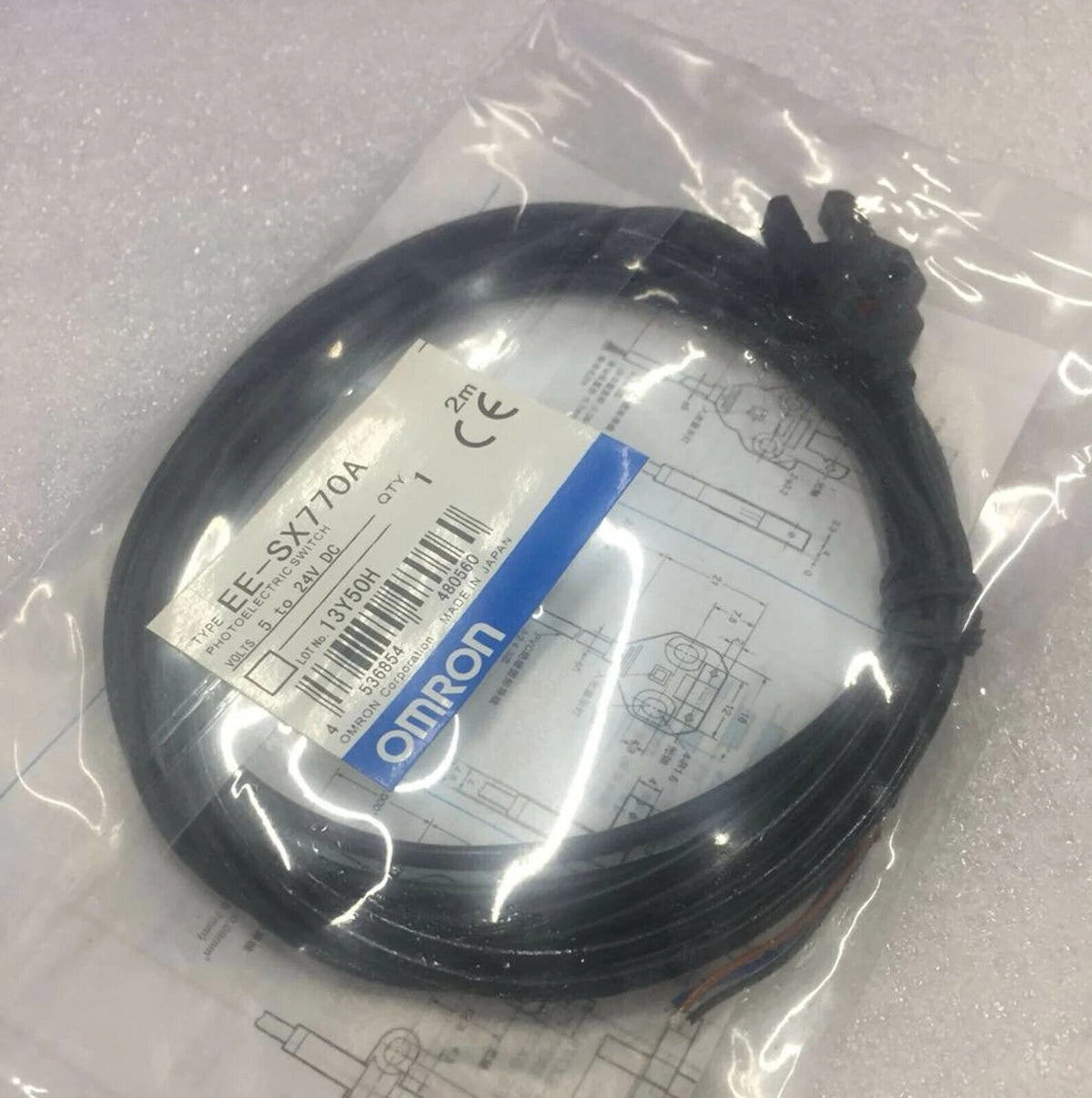

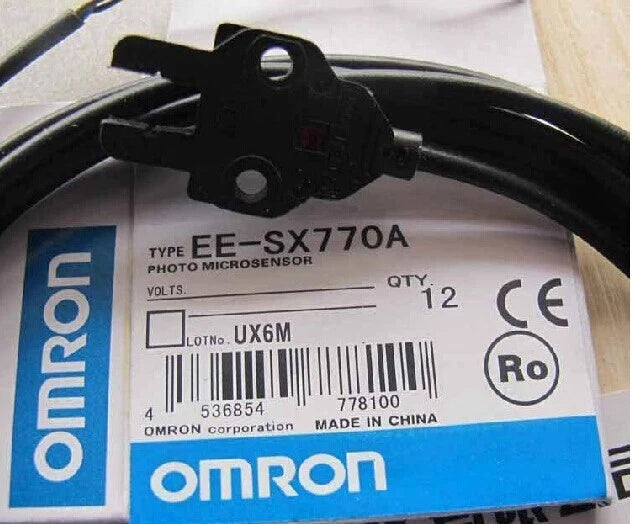

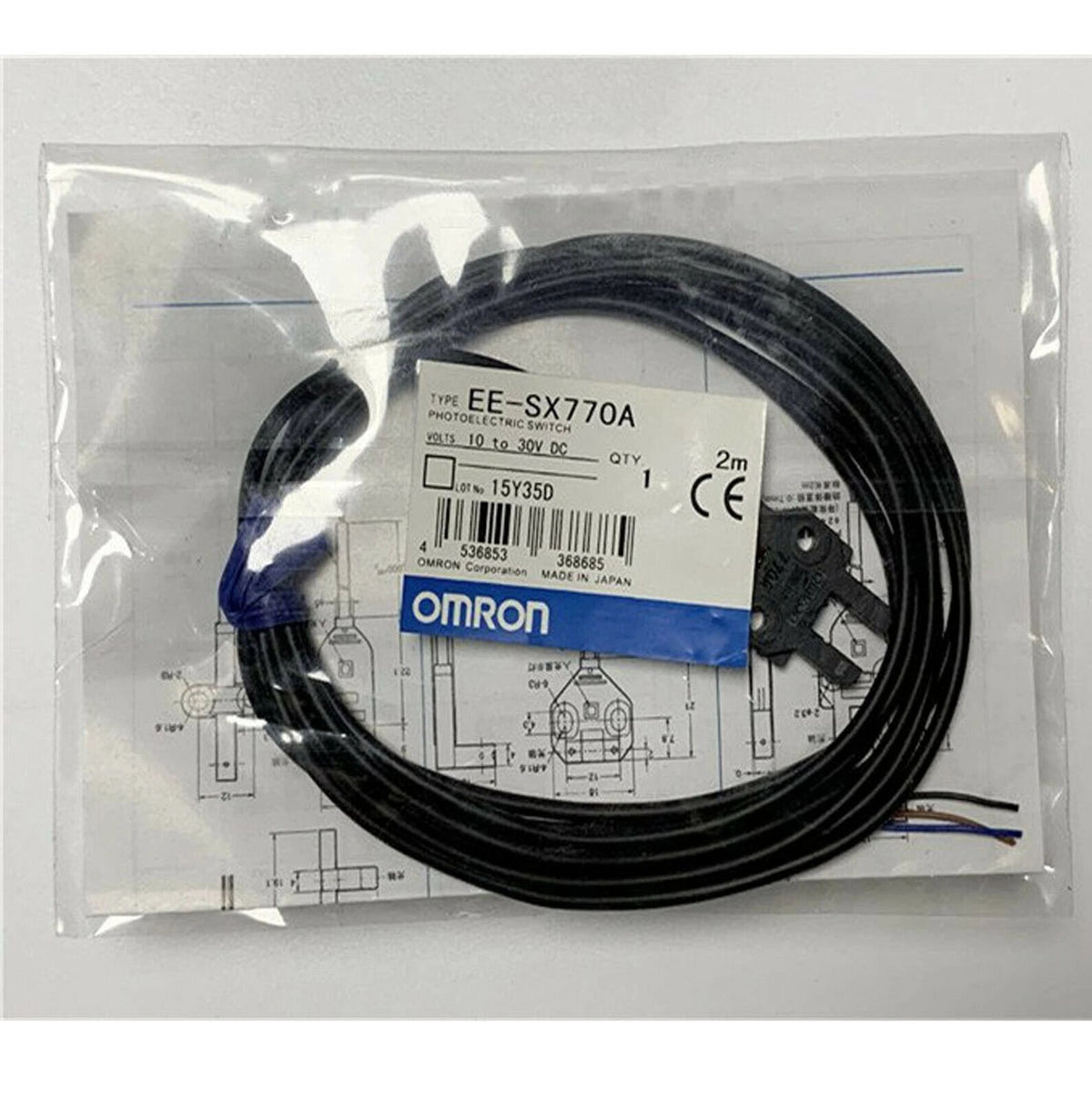

Omron EE-SX770A Photomicrosensor 5mm NPN 5-24 VDC
Available in stock (400)
Regular price
$15.20
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Omron |
| Model Number | EE-SX770A |
| Product Category | Photoelectric Sensor |
| Product Family | EE-SX |
| Sensor Type | Slot-type Photomicrosensor |
| Slit Width | 5 mm |
| Output Configuration | NPN |
| Output Type | Dark-ON / Light-ON |
| Supply Voltage | 5 VDC to 24 VDC |
| Current Consumption | 35 mA max |
| Control Output | 100 mA max |
| Operating Temperature | -25°C to +55°C |
Key Features
NPN Output
NPN open-collector output configuration for integration with industrial control systems.
Dark-ON / Light-ON
Selectable output modes provide flexibility for different application requirements.
Wide Supply Range
Operates on 5 VDC to 24 VDC supply voltage for versatile installation options.
100 mA Output
Control output rated at 100 mA max for direct switching of loads.
Compact Package
Standard EE-SX series compact package fits space-constrained industrial equipment.
Applications
- Object detection in industrial automation
- Position sensing for assembly lines
- Presence/absence verification
- Counting and sorting systems
- Packaging machinery sensing
- Automated inspection equipment
- Industrial robotics feedback
- Conveyor system monitoring
Purchase Information
We support online purchase of the Omron EE-SX770A Photoelectric Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Omron EE-SX770A?
Omron EE-SX770A is a slot-type photomicrosensor from the EE-SX series with a 5 mm slit width.
What type of sensor is EE-SX770A?
It is a slot-type photoelectric sensor designed for object detection within the 5 mm gap.
What is the output configuration of EE-SX770A?
Omron documentation identifies an NPN open-collector output configuration for the EE-SX770A.
What supply voltage does EE-SX770A require?
The EE-SX770A operates on a supply voltage range of 5 VDC to 24 VDC.
What output modes does EE-SX770A support?
The module supports Dark-ON and Light-ON selectable output modes.
What is the maximum control output current of EE-SX770A?
The control output is rated at 100 mA maximum.
What is the operating temperature range of EE-SX770A?
The operating temperature range is -25°C to +55°C as specified in Omron documentation.
What applications can EE-SX770A be considered for?
It can be considered for industrial automation, position sensing, counting, sorting, packaging and conveyor systems after verifying mechanical and electrical compatibility.
What should be checked before ordering EE-SX770A?
Check the complete model number, required detection gap, supply voltage, output configuration (NPN), output mode selection, and mounting requirements before ordering.
What should be verified before using EE-SX770A in an existing system?
Electrical, mechanical and wiring requirements such as supply voltage, load current and mounting dimensions should be verified against the existing installation.
