Compound Pressure Range
The ZSE30AF-01-P covers a rated pressure range of -100.0 to +100.0 kPa, allowing it to monitor both vacuum and low positive pressure in a single device.
SMC

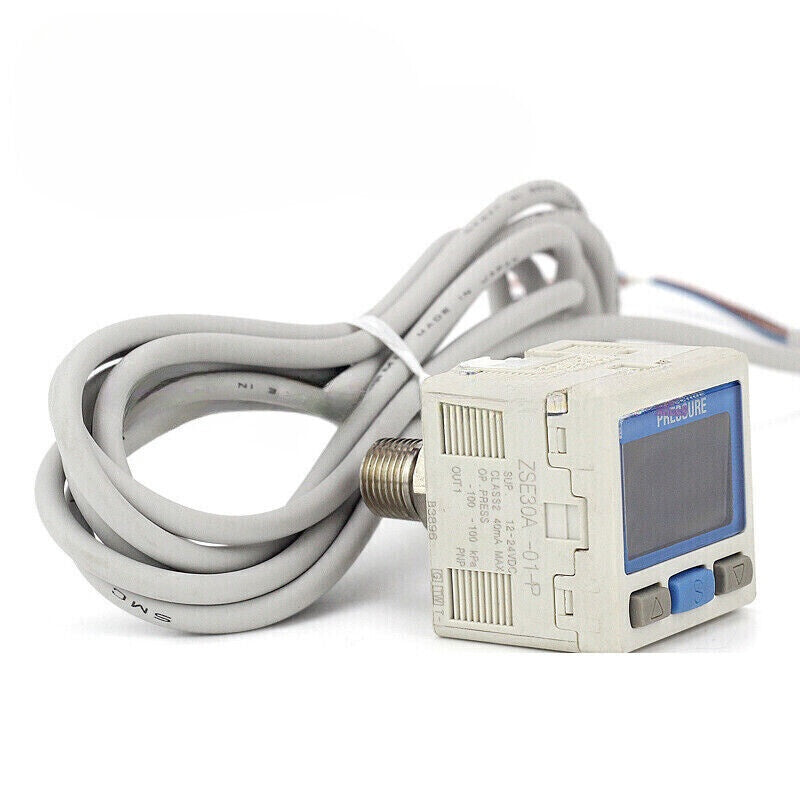

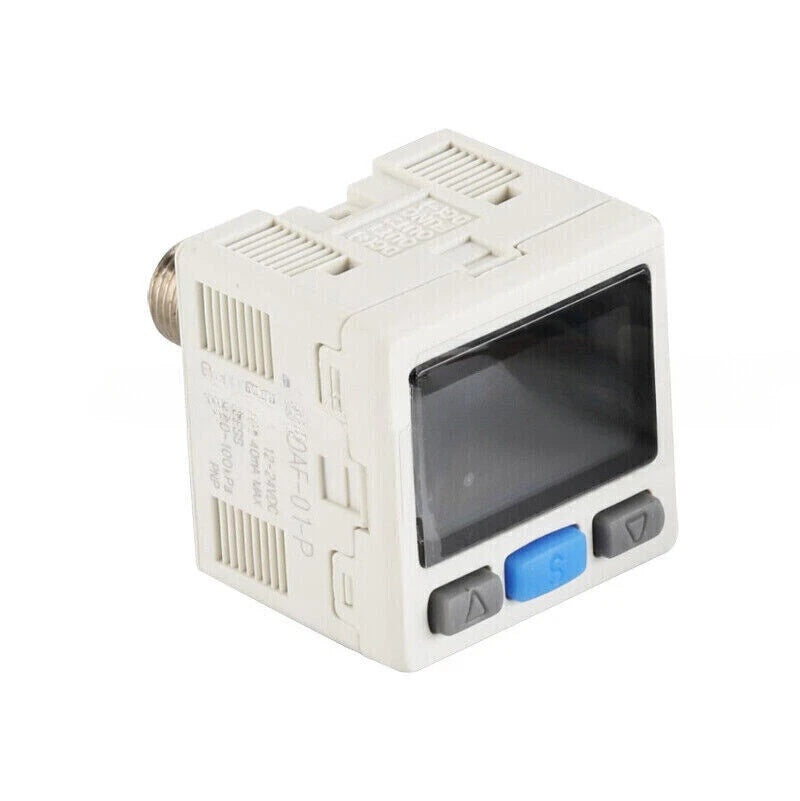

SMC ZSE30AF-01-P Pressure Switch 0-1MPa PNP 24VDC
$31.68
Available
PRODUCT GALLERY
01 / 2
Product images for part identification
SMC
SMC ZSE30AF-01-P Pressure Switch 0-1MPa PNP 24VDC
PRODUCT PRICE
USD
$31.68
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SMC |
| Model Number | ZSE30AF-01-P |
| Product Category | Pressure Switch |
| Product Family | ZSE30AF Series |
| Pressure Type | Compound Pressure (Vacuum / Positive) |
| Rated Pressure Range | -100.0 to +100.0 kPa |
| Output Type | PNP Open Collector, 1 Output |
| Power Supply | 24 VDC |
| Port Size | R1/8 (with M5 female thread) |
| Enclosure | IP40 |
| Operating Temperature | 0°C to +50°C |
| Display | 2-Color Digital Display |
Key Features
PNP Open Collector Output
The switch provides a PNP open collector output, commonly used for direct interface with PLC sinking inputs and industrial control systems.
2-Color Digital Display
A high-precision 2-color digital display provides clear local indication of the measured pressure value and switch status.
R1/8 Port with M5 Female Thread
The 01 port specification provides an R1/8 connection with an additional M5 female thread, offering flexible installation options.
IP40 Enclosure
The IP40-rated enclosure is suitable for use in control panels and protected industrial environments.
Applications
- Vacuum pressure monitoring in pneumatic systems
- Low positive pressure verification
- Pick-and-place vacuum confirmation
- Leak testing and pressure decay checks
- Compressed air line monitoring
- Robot end-effector vacuum sensing
- Packaging machine pressure control
- General factory automation pressure feedback
Purchase Information
We support online purchase of the SMC ZSE30AF-01-P Pressure Switch. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SMC ZSE30AF-01-P? The ZSE30AF-01-P is a compound pressure switch from the SMC ZSE30AF series with a digital display and PNP output, designed for monitoring both vacuum and low positive pressure.
What is the rated pressure range of the ZSE30AF-01-P? The rated pressure range is -100.0 to +100.0 kPa.
What type of output does the ZSE30AF-01-P have? The switch provides a PNP open collector output.
What is the power supply requirement? The ZSE30AF-01-P operates on 24 VDC.
What is the port size? The 01 suffix denotes an R1/8 port with an M5 female thread.
What is the enclosure rating? The enclosure is rated IP40.
What is the operating temperature range? The operating temperature range is 0°C to +50°C.
Does the ZSE30AF-01-P have a display? Yes. It features a 2-color digital display for local pressure indication and switch status.
What is the difference between ZSE30A and ZSE30AF? The ZSE30A is specified for vacuum pressure (0 to -101 kPa), while the ZSE30AF is a compound pressure switch covering -100 to +100 kPa.
What should be checked before ordering? Confirm the required pressure range, output type (PNP), port size (R1/8 with M5 female thread), supply voltage (24 VDC), and enclosure rating for the installation environment.
Need help confirming a model?
Send us your part number and technical requirements.
