Compound Pressure Monitoring
Rated for -100.0 to +100.0 kPa, the ZSE30AF-01-N-L can monitor vacuum and low positive pressure in a single compact switch.
SMC

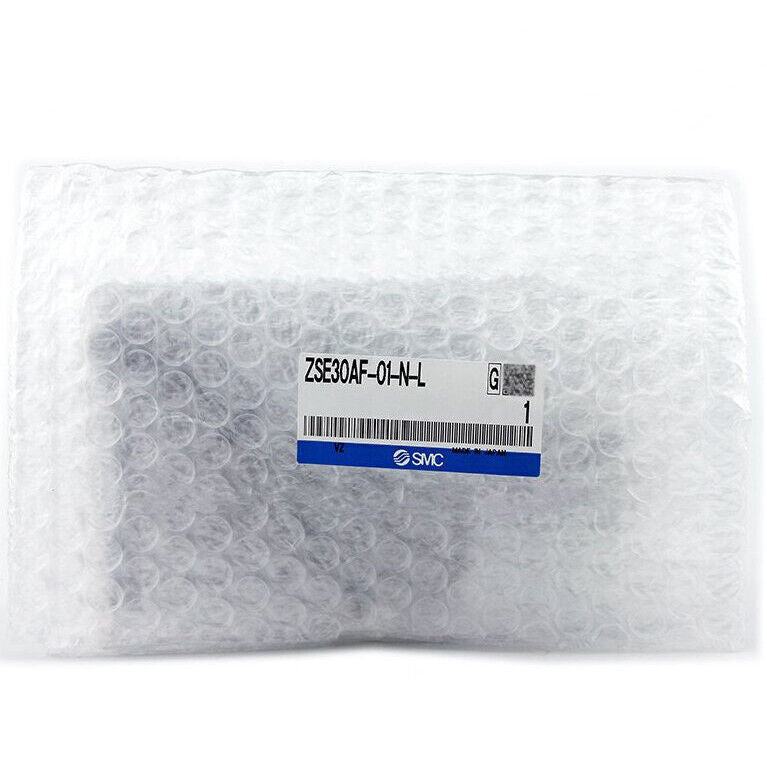

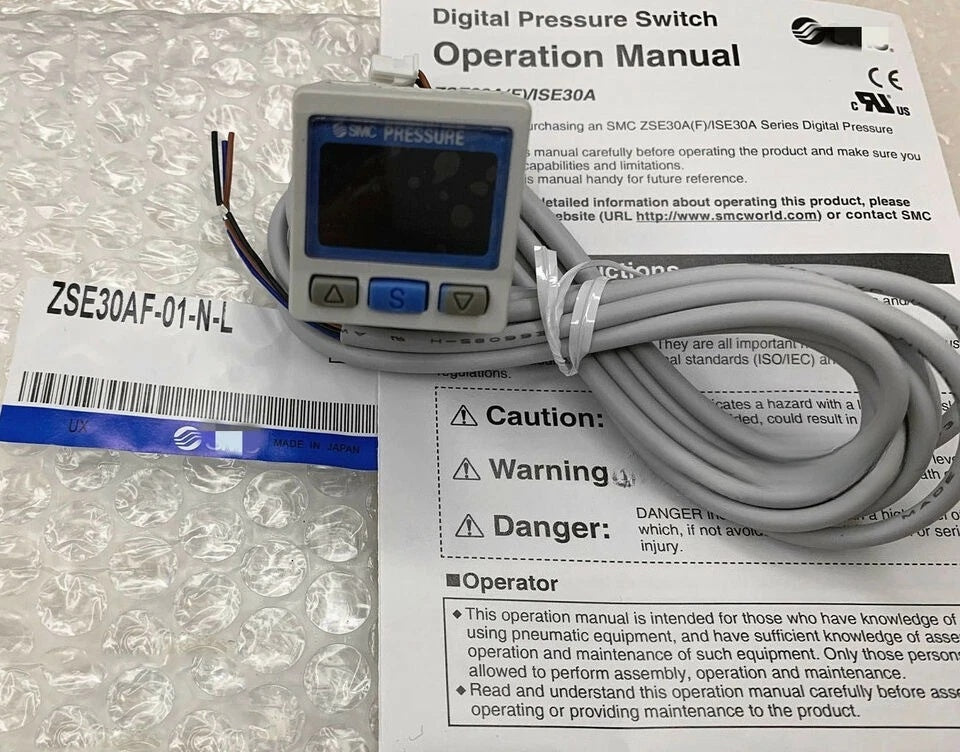

SMC ZSE30AF-01-N-L Pressure Switch 0-1MPa NPN 24VDC
$14.16
Available
PRODUCT GALLERY
01 / 2
Product images for part identification
SMC
SMC ZSE30AF-01-N-L Pressure Switch 0-1MPa NPN 24VDC
PRODUCT PRICE
USD
$14.16
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SMC |
| Model Number | ZSE30AF-01-N-L |
| Product Category | Pressure Switch |
| Product Family | ZSE30AF Series |
| Pressure Type | Compound Pressure (Vacuum / Positive) |
| Rated Pressure Range | -100.0 to +100.0 kPa |
| Output Type | NPN Open Collector, 1 Output |
| Power Supply | 24 VDC |
| Port Size | R1/8 (with M5 female thread) |
| Lead Wire | With Connector, 2 m |
| Display | 2-Color Digital Display |
Key Features
NPN Open Collector Output
The NPN open collector output is suited for interface with PLC sourcing inputs and common industrial control architectures.
2 m Lead Wire with Connector
The L suffix denotes a lead wire with connector, 2 m in length, simplifying installation and maintenance in control cabinets.
2-Color Digital Display
A high-precision 2-color digital display provides clear local pressure indication and switch status visibility.
R1/8 Port with M5 Female Thread
The 01 port specification offers an R1/8 connection with an M5 female thread for flexible pneumatic integration.
Applications
- Vacuum confirmation for pick-and-place systems
- Low positive pressure monitoring on pneumatic lines
- Leak detection and pressure decay verification
- Compressed air consumption monitoring
- Robot vacuum gripper feedback
- Packaging machinery pressure control
- Automated assembly station pressure checks
- General factory automation pressure sensing
Purchase Information
We support online purchase of the SMC ZSE30AF-01-N-L Pressure Switch. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SMC ZSE30AF-01-N-L? The ZSE30AF-01-N-L is a compound pressure switch from the SMC ZSE30AF series with a 2-color digital display and NPN output.
What is the rated pressure range of the ZSE30AF-01-N-L? The rated pressure range is -100.0 to +100.0 kPa.
What type of output does the ZSE30AF-01-N-L have? The switch provides an NPN open collector output.
What does the L suffix indicate? The L suffix denotes a lead wire with connector, 2 m in length.
What is the port size? The 01 port specification is R1/8 with an M5 female thread.
What is the power supply requirement? The switch operates on 24 VDC.
Does the ZSE30AF-01-N-L have a display? Yes. It features a 2-color digital display for pressure indication and switch status.
What is the difference between the N and P output versions? The N suffix specifies an NPN open collector output, while the P suffix specifies a PNP open collector output.
What is the difference between ZSE30A and ZSE30AF? The ZSE30A is for vacuum pressure (0 to -101 kPa), while the ZSE30AF is a compound pressure switch covering -100 to +100 kPa.
What should be checked before ordering? Confirm the required output type (NPN), pressure range, port size (R1/8 with M5 female thread), lead wire length (2 m with connector), and supply voltage (24 VDC).
