2-Color Display
Red and green LED indication allows the proper operating range to be determined by the color of the light, supporting reliable position confirmation on pneumatic actuators.
SMC
SMC D-M9BWL Auto Switch 2-Wire 24VDC 100VAC
$12.88
Available
PRODUCT GALLERY
01 / 2

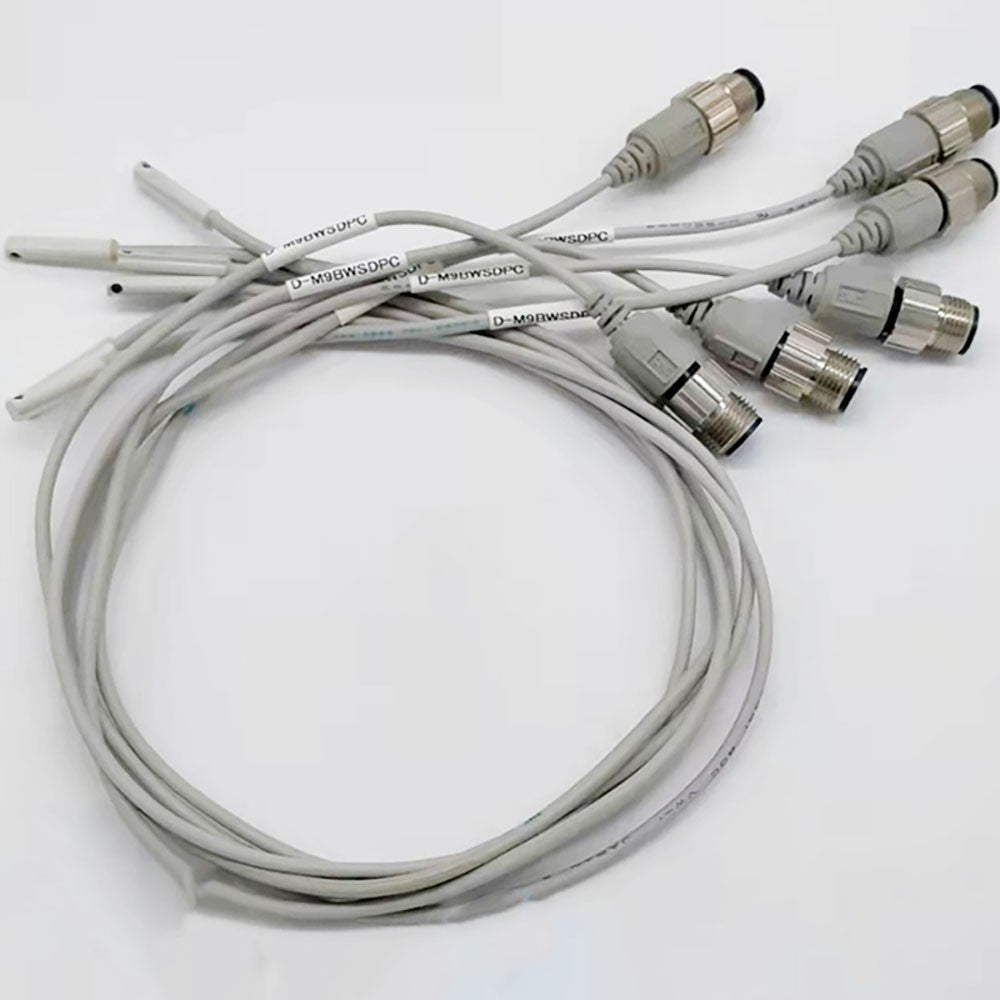

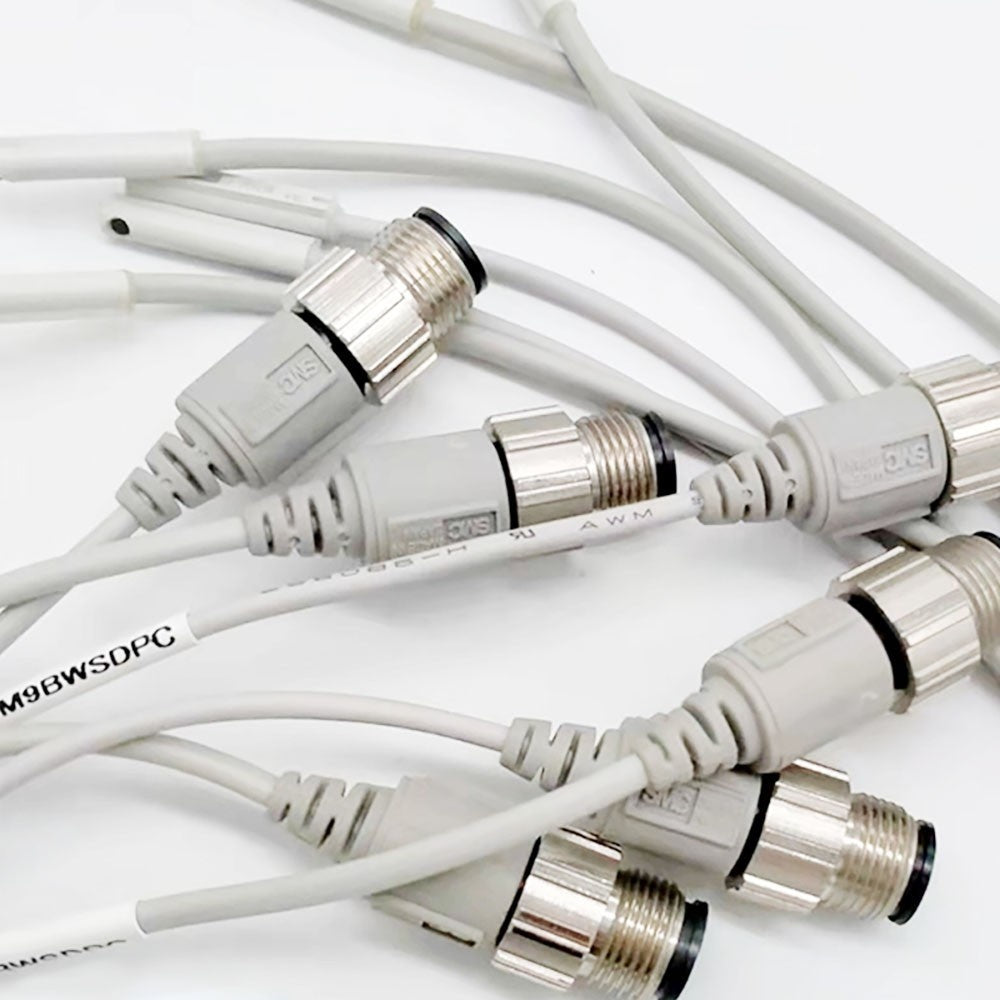

Product images for part identification
SMC
SMC D-M9BWL Auto Switch 2-Wire 24VDC 100VAC
PRODUCT PRICE
USD
$12.88
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SMC |
| Model Number | D-M9BWL |
| Product Category | Auto Switch |
| Product Family | D-M9 Series |
| Switch Type | Solid State, 2-Color Display, Non-Contact |
| Wiring | 2-Wire |
| Applicable Voltage | DC 24V (DC 10 to 28V) |
| Electrical Entry | Grommet, Horizontal |
| Lead Wire Length | 3 m |
| Indicator | 2-Color Display LED (Red/Green) |
| Enclosure | IP67 |
| Operating Temperature | -10°C to +60°C |
Key Features
2-Wire Solid State Design
The D-M9BWL is a solid state, non-contact auto switch with 2-wire configuration for simplified wiring in DC applications.
Wide Applicable Voltage
Rated for DC 24V with an applicable voltage range of DC 10 to 28V, suitable for common industrial control circuits.
IP67 Enclosure
The switch is constructed to IP67 standards for protection against dust and water ingress in demanding plant environments.
3-Meter Lead Wire
A 3 m pre-wired lead with grommet and horizontal electrical entry provides flexibility for actuator mounting positions.
Applications
- Pneumatic cylinder position detection
- Actuator end-of-stroke confirmation
- Valve position monitoring
- Workpiece presence sensing on grippers
- Automated assembly station feedback
- Material handling actuator control
- Packaging machinery sequence verification
- General industrial automation sensing
Purchase Information
We support online purchase of the SMC D-M9BWL Auto Switch. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SMC D-M9BWL? The D-M9BWL is a solid state, 2-wire auto switch from the SMC D-M9 series with a 2-color display, designed for non-contact position detection on pneumatic actuators.
What voltage does the D-M9BWL use? The switch is rated for DC 24V with an applicable voltage range of DC 10 to 28V.
What is the lead wire length of the D-M9BWL? The D-M9BWL is supplied with a 3 m lead wire and grommet electrical entry.
Does the D-M9BWL have an indicator light? Yes. It features a 2-color display LED that changes color to indicate the operating range.
What is the enclosure rating of the D-M9BWL? The switch conforms to IP67 for protection against dust and water ingress.
What is the operating temperature range? The D-M9BWL is specified for operation from -10°C to +60°C.
What is the difference between D-M9B and D-M9BW? The D-M9BW series adds a 2-color display function. The D-M9BWL is the variant with a 3 m lead wire and horizontal grommet entry.
Can the D-M9BWL be used with SMC actuators? The D-M9 series auto switches are designed for mounting on compatible SMC pneumatic actuators. Verify the applicable actuator series and mounting groove before ordering.
What should be checked before ordering? Confirm the required switch type (solid state, 2-wire), voltage (DC 24V), lead length (3 m), electrical entry orientation (horizontal), and compatibility with the target actuator series.
