220 mm Centrifugal Fan
The RE22P-2DK.3F.5R is a centrifugal fan configuration with a documented fan size of 220 mm.
ZIEHL-ABEGG
ZIEHL-ABEGG RE22P-2DK.3F.5R Centrifugal Fan 400V 490W 2320rpm
$760.42
Available
PRODUCT GALLERY
01 / 7

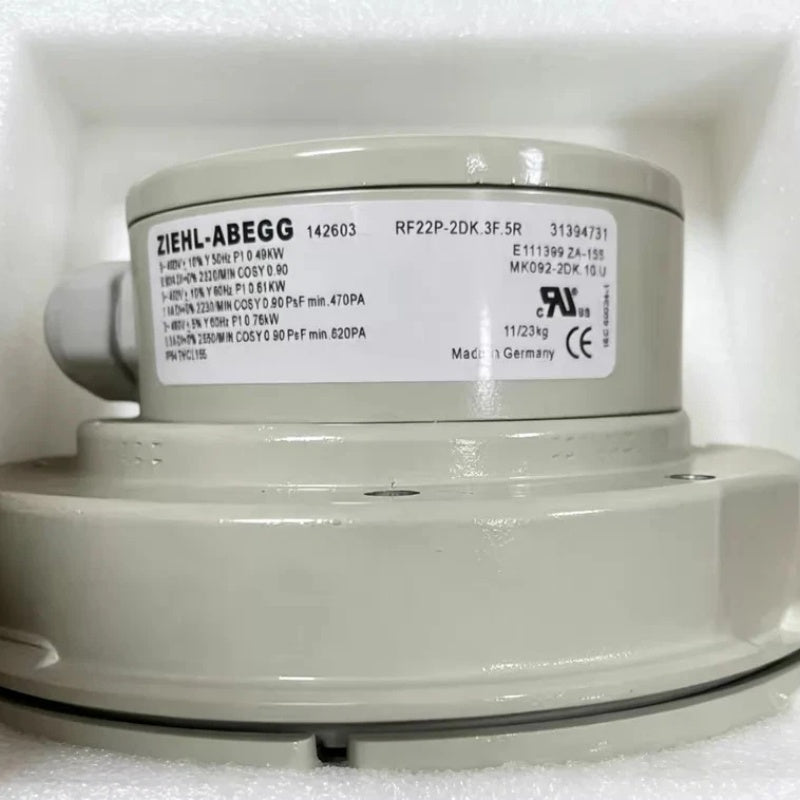

Product images for part identification
ZIEHL-ABEGG
ZIEHL-ABEGG RE22P-2DK.3F.5R Centrifugal Fan 400V 490W 2320rpm
PRODUCT PRICE
USD
$760.42
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RE22P-2DK.3F.5R |
| Product Category | Centrifugal Fan |
| Article Number | 131345 |
| Fan Design | Backward-Curved Centrifugal Fan |
| Phase | 3~ |
| Rated Voltage | 400 V |
| Rated Frequency | 50 Hz |
| Power Input | 0.49 kW |
| Rated Current | 0.80 A |
| Rated Speed | 2320 rpm |
| Fan Size | 220 mm |
| Degree of Protection | IP54 |
Key Features
400 V Three-Phase Supply
The documented 50 Hz operating point uses a three-phase 400 V AC electrical supply.
490 W Power Input
The documented 400 V 50 Hz operating data specify a power input of 0.49 kW and current of 0.80 A.
2320 rpm Speed
The documented rated speed at the 400 V 50 Hz operating point is 2320 rpm.
Backward-Curved Design
The RE22P-2DK.3F.5R uses a backward-curved centrifugal impeller configuration for radial air movement.
Article Number 131345
The RE22P-2DK.3F.5R is identified in product listings with article number 131345.
Applications
- Variable frequency drive cooling
- Industrial drive ventilation
- Industrial equipment cooling
- Electrical cabinet ventilation
- Industrial machinery airflow
- Forced-air cooling systems
- Heat dissipation equipment
- Industrial ventilation systems
Purchase Information
We support online purchase of the ZIEHL-ABEGG RE22P-2DK.3F.5R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RE22P-2DK.3F.5R?
ZIEHL-ABEGG RE22P-2DK.3F.5R is a backward-curved centrifugal fan used for industrial ventilation and equipment cooling applications.
What is the article number of RE22P-2DK.3F.5R?
Product references identify the article number as 131345.
What voltage does RE22P-2DK.3F.5R use?
The documented 50 Hz operating point uses a three-phase 400 V AC supply.
What is the power input at 400 V 50 Hz?
The documented power input is 0.49 kW, or 490 W.
What is the rated current at 400 V 50 Hz?
The documented current is 0.80 A.
What is the rated speed at 400 V 50 Hz?
The documented speed is 2320 rpm.
What is the fan size?
The documented fan size is 220 mm.
What degree of protection is specified?
Available technical references specify an IP54 degree of protection.
Does RE22P-2DK.3F.5R have 60 Hz operating data?
Technical references also list 60 Hz operating points. The required voltage, frequency and corresponding electrical data should be checked for the intended installation.
What applications can RE22P-2DK.3F.5R be considered for?
It can be considered for variable frequency drive cooling, industrial equipment ventilation, electrical cabinet airflow and other forced-air cooling applications after operating requirements have been checked.
What should be checked before ordering RE22P-2DK.3F.5R?
Check the complete model and article number, voltage, frequency, phase, power, current, speed, fan dimensions and installation requirements against the equipment documentation.
