12 VDC with PWM Control
Rated for 12 VDC operation with a 4-pin PWM interface and a documented speed of 4900 RPM under PWM regulation.
AVC
AVC DS08025R12U Axial Fan 12VDC 80mm
$10.62
Available
PRODUCT GALLERY
01 / 2

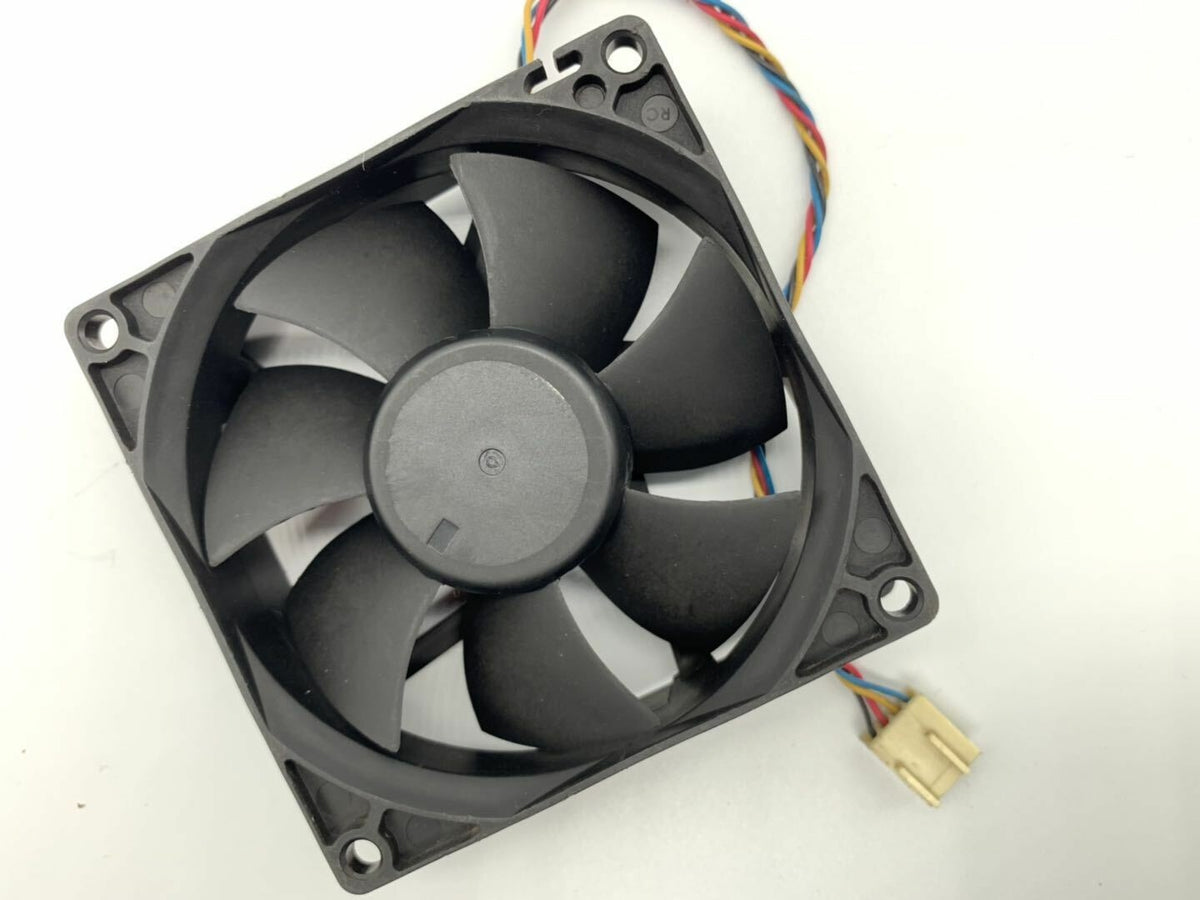

Product images for part identification
AVC
AVC DS08025R12U Axial Fan 12VDC 80mm
PRODUCT PRICE
USD
$10.62
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | AVC |
| Model Number | DS08025R12U |
| Product Category | Axial Fan |
| Rated Voltage | 12 VDC |
| Operating Voltage | 7.0-13.2 VDC |
| Current | 0.70 A |
| Power | 5.4 W |
| Fan Speed | 4900 RPM (PWM) |
| Maximum Airflow | 64.44 CFM |
| Maximum Static Pressure | 95.367 Pa |
| Dimensions | 80 x 80 x 25 mm |
| Connector | 4-Pin PWM |
| Bearing Type | Hydraulic Bearing |
Key Features
64.44 CFM Airflow
Maximum airflow is listed at 64.44 CFM with a maximum static pressure of 95.367 Pa.
80 x 80 x 25 mm Frame
The fan uses a standard 80 mm square frame with a 25 mm depth for compact cooling installations.
Hydraulic Bearing
Supplier specifications identify a hydraulic bearing type for the DS08025R12U.
Applications
- Electronic enclosure cooling
- Power supply thermal management
- Control module airflow
- Compact equipment ventilation
- PWM-controlled cooling systems
- DC-powered forced-air cooling
Purchase Information
We support online purchase of the AVC DS08025R12U Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the AVC DS08025R12U? The DS08025R12U is a DC axial fan with an 80 x 80 x 25 mm frame, rated for 12 VDC operation.
What voltage does the fan use? The rated voltage is 12 VDC, with an operating voltage range of 7.0-13.2 VDC.
What is the current and power? Documented current is 0.70 A and power is 5.4 W.
What is the fan speed? The fan is rated at 4900 RPM with PWM speed regulation.
What is the airflow? Maximum airflow is 64.44 CFM.
What is the static pressure? Maximum static pressure is 95.367 Pa.
What connector type does it use? The fan uses a 4-pin PWM connector.
What bearing type is used? Supplier specifications identify a hydraulic bearing.
What are the dimensions? The frame measures 80 x 80 x 25 mm.
