220-240 VAC Single-Phase Input
Rated for 220-240 VAC single-phase operation at 50 Hz with a documented current of 0.55 A.
WEIGUANG

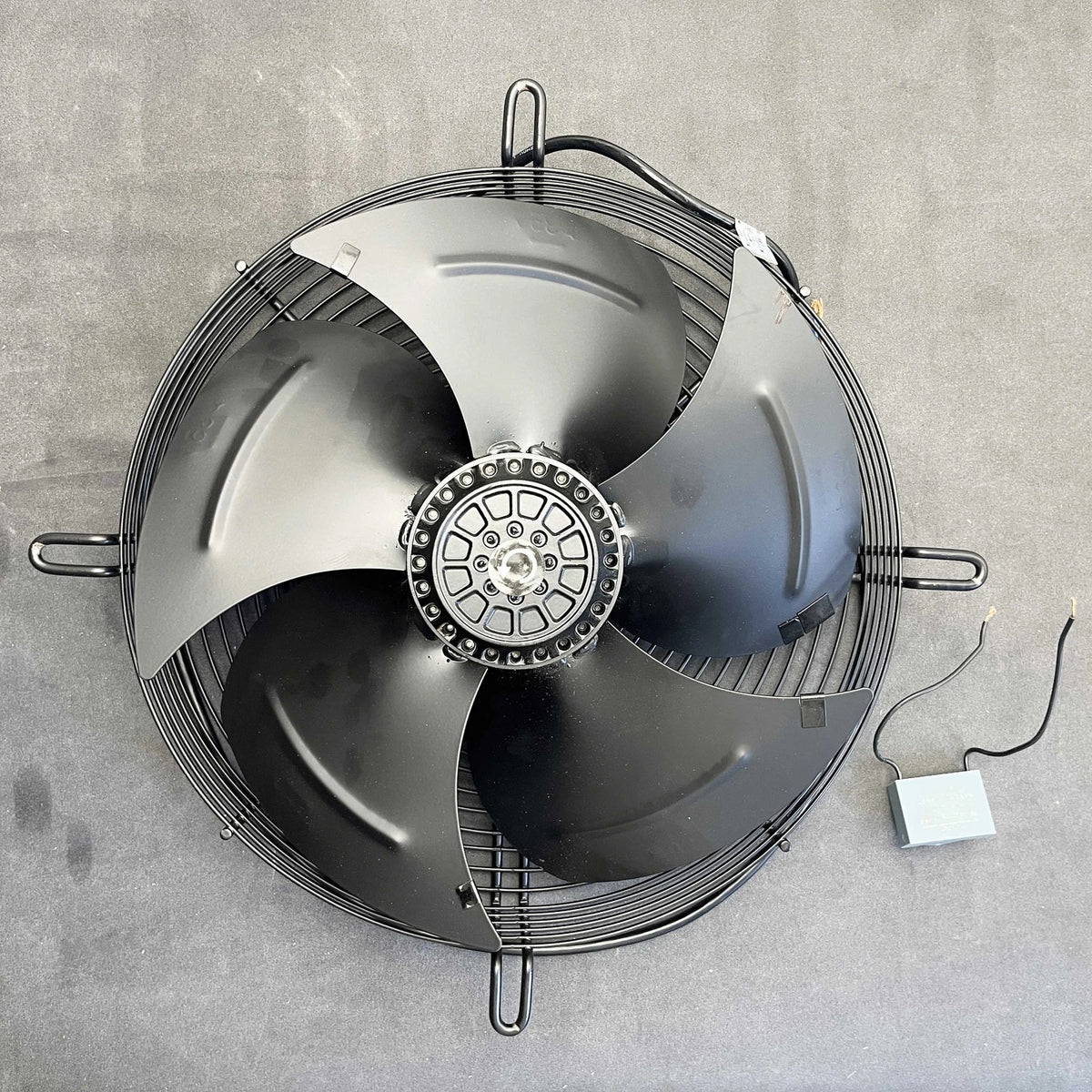

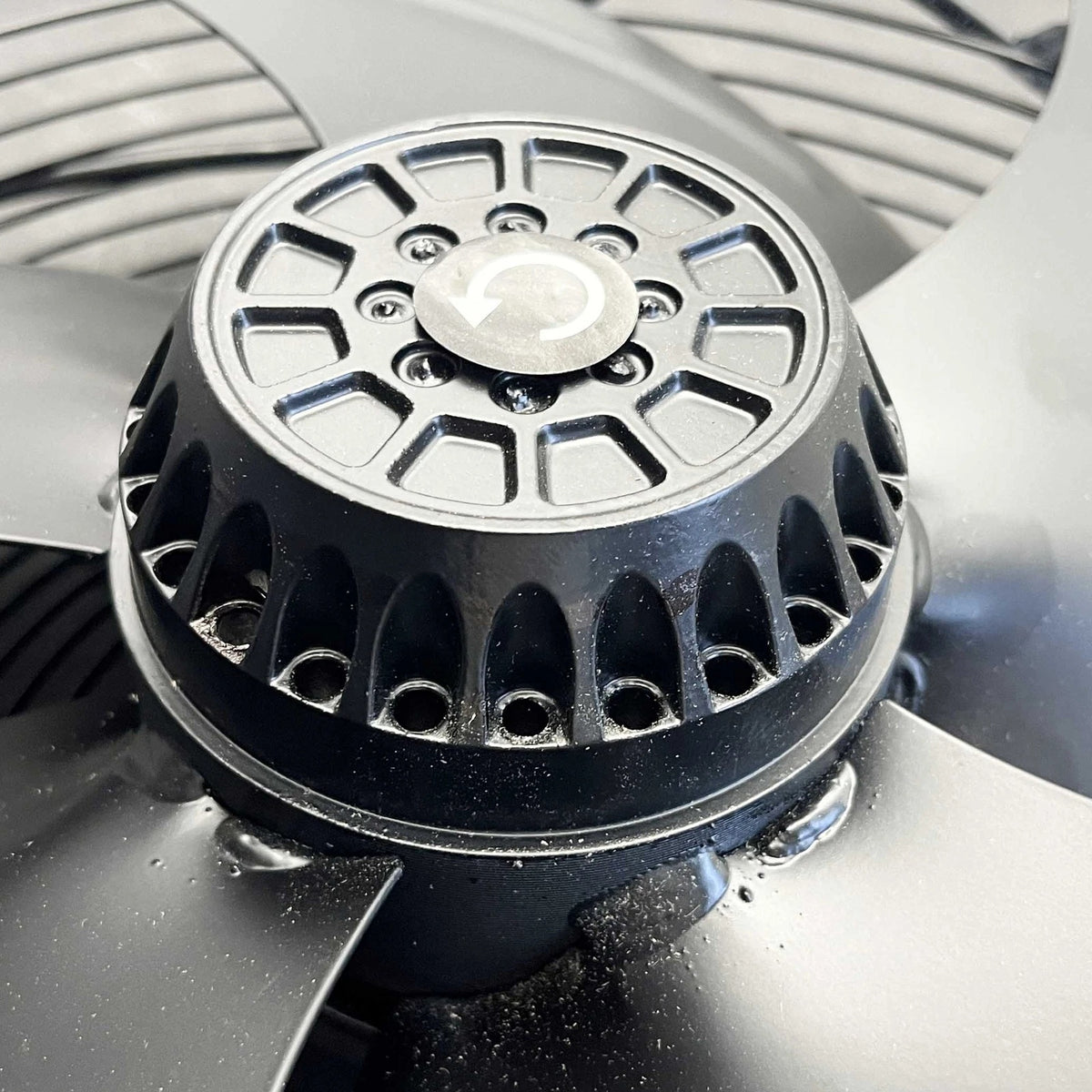

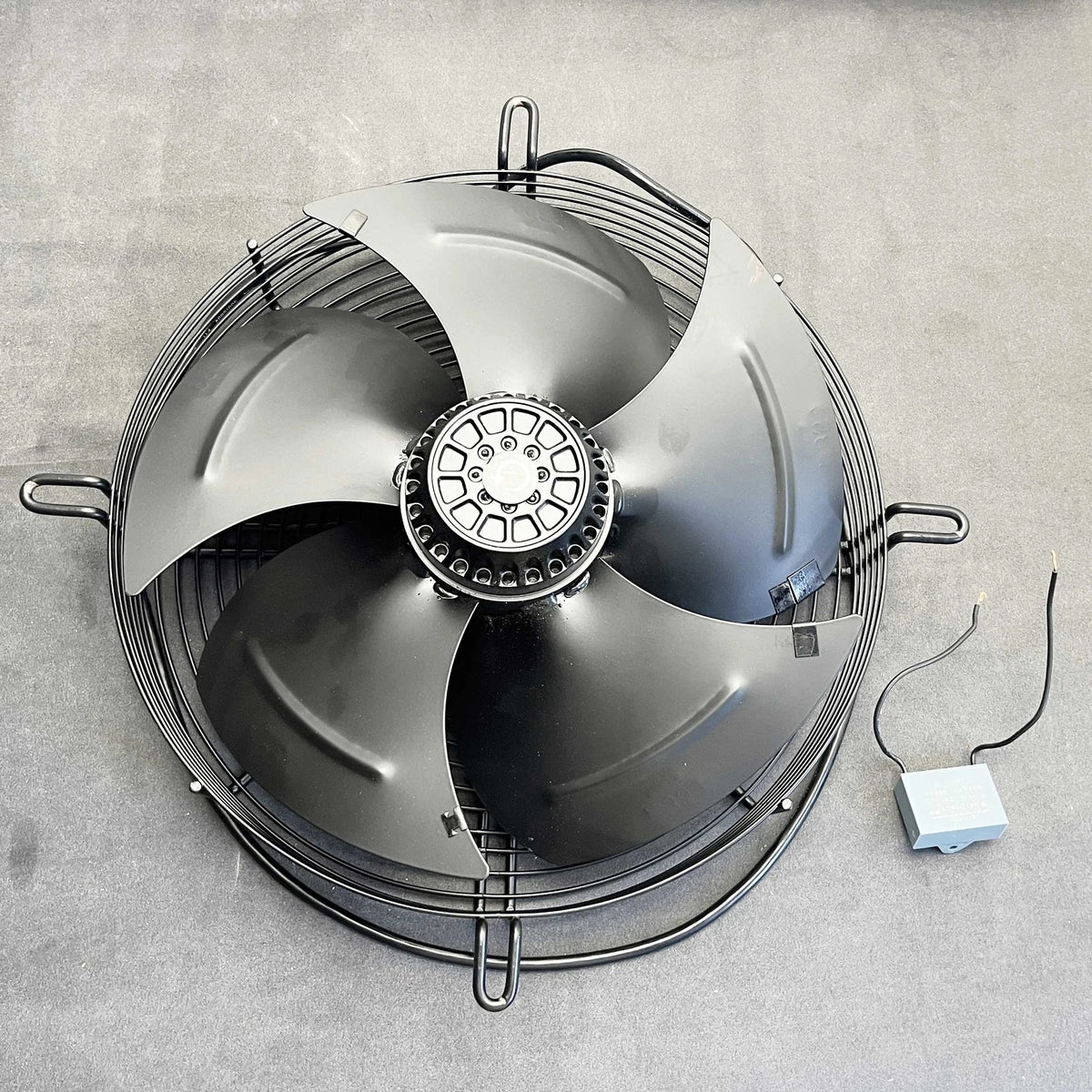

WEIGUANG YWF4E-350S Axial Fan 350mm
$159.92
Available
PRODUCT GALLERY
01 / 3
Product images for part identification
WEIGUANG
WEIGUANG YWF4E-350S Axial Fan 350mm
PRODUCT PRICE
USD
$159.92
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | WEIGUANG |
| Model Number | YWF4E-350S |
| Product Category | Axial Fan |
| Voltage | 220-240 VAC |
| Frequency | 50 Hz |
| Power | 120 W |
| Current | 0.55 A |
| Fan Speed | 1150 RPM |
| Air Flow | 2500 m³/h |
| Impeller Diameter | 350 mm |
| Airflow Direction | Suction/Blowing |
Key Features
350 mm Impeller Diameter
The fan uses a 350 mm impeller for high-volume air movement in ventilation and cooling systems.
2500 m³/h Airflow
Documented air flow is 2500 m³/h at a fan speed of 1150 RPM.
120 W Power
The YWF4E-350S is rated at 120 W input power.
Applications
- Industrial ventilation systems
- Condenser and evaporator airflow
- Large enclosure cooling
- HVAC equipment air movement
- Machinery thermal management
- High-volume AC axial fan installations
Purchase Information
We support online purchase of the WEIGUANG YWF4E-350S Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the WEIGUANG YWF4E-350S? The YWF4E-350S is an AC axial fan with a 350 mm impeller, documented for 220-240 VAC single-phase operation.
What voltage does the YWF4E-350S use? It operates on 220-240 VAC at 50 Hz.
What is the power and current? Documented power is 120 W and current is 0.55 A.
What is the fan speed? The fan speed is 1150 RPM.
What is the air flow? Air flow is documented at 2500 m³/h.
What is the impeller diameter? The impeller diameter is 350 mm.
What is the airflow direction? The fan is documented for suction/blowing airflow direction.
Need help confirming a model?
Send us your part number and technical requirements.
