180 mm Centrifugal Impeller
The RE18P-2DK.1E.2R is identified as a single-inlet centrifugal impeller with a documented size of 180 mm.
1 / 7
ZIEHL-ABEGG

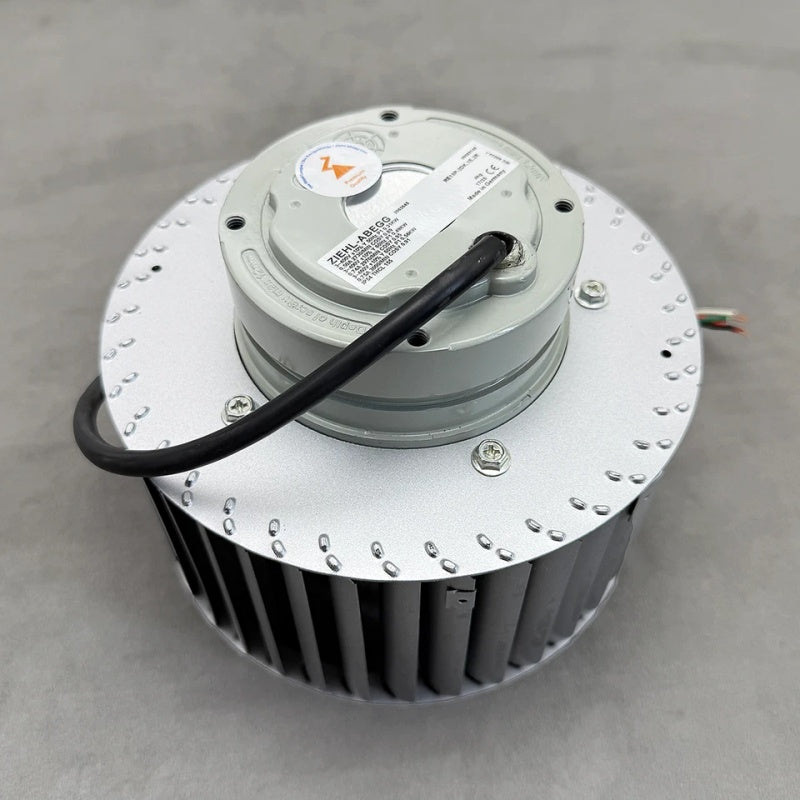

ZIEHL-ABEGG RE18P-2DK.1E.2R Centrifugal Fan 400/460VAC 180mm 0.31kW
PRODUCT PRICE
USD
$447.74
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RE18P-2DK.1E.2R |
| Product Category | Centrifugal Fan |
| Article Number | 206364 |
| Fan Type | Single-Inlet Centrifugal Impeller |
| Impeller Size | 180 mm |
| Rated Voltage | 3~ 400 VAC ±10% / 460 VAC ±10% |
| Rated Frequency | 50/60 Hz |
| Power Input | 0.31 kW at 400 V 50 Hz / 0.49 kW at 400 V 60 Hz / 0.53 kW at 460 V 60 Hz |
| Rated Current | 0.50 A / 0.74 A / 0.75 A |
| Speed | 2730 RPM / 2970 RPM / 3010 RPM |
| Connection | Star (Y) |
| Protection Rating | IP54 |
| Thermal Class | 155 |
| Weight | 4 kg |
Key Features
400/460 VAC Supply
The documented electrical data covers three-phase 400 VAC and 460 VAC operation.
50/60 Hz Operation
Operating data is documented for 400 V at 50 Hz and 60 Hz and for 460 V at 60 Hz.
0.31/0.49/0.53 kW Power
The documented power input varies with the specified voltage and frequency operating point.
2730-3010 RPM Speed
The documented rotational speeds are 2730, 2970 and 3010 RPM according to the electrical operating point.
IP54 Protection
The documented degree of protection for the RE18P-2DK.1E.2R is IP54.
Applications
- Industrial equipment ventilation
- Frequency converter cooling
- Power electronics cooling
- Industrial machinery cooling
- Electrical equipment ventilation
- Industrial air circulation
- Equipment heat removal
- Industrial airflow applications
Purchase Information
We support online purchase of the ZIEHL-ABEGG RE18P-2DK.1E.2R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RE18P-2DK.1E.2R?
ZIEHL-ABEGG RE18P-2DK.1E.2R is a single-inlet centrifugal fan with a 180 mm impeller.
What is the article number for RE18P-2DK.1E.2R?
The documented article number is 206364.
What voltage does RE18P-2DK.1E.2R use?
The documented electrical data covers three-phase 400 VAC and 460 VAC operation with a ±10% voltage tolerance.
What frequencies does RE18P-2DK.1E.2R use?
The documented operating data covers 50 Hz and 60 Hz.
What is the power input of RE18P-2DK.1E.2R?
The documented power input is 0.31 kW at 400 V 50 Hz, 0.49 kW at 400 V 60 Hz and 0.53 kW at 460 V 60 Hz.
What is the rated current of RE18P-2DK.1E.2R?
The documented current values are 0.50 A, 0.74 A and 0.75 A according to the specified electrical operating point.
What is the speed of RE18P-2DK.1E.2R?
The documented speeds are 2730 RPM, 2970 RPM and 3010 RPM according to the voltage and frequency operating point.
What is the protection rating of RE18P-2DK.1E.2R?
The documented degree of protection is IP54.
What is the weight of RE18P-2DK.1E.2R?
The documented weight is 4 kg.
What applications can RE18P-2DK.1E.2R be considered for?
It can be considered for industrial equipment ventilation, frequency converter cooling, power electronics cooling and other industrial airflow applications after system requirements have been checked.
What should be verified before using RE18P-2DK.1E.2R in an existing system?
The complete model number, supply voltage, frequency, power, current, speed and mechanical installation requirements should be checked against the existing system.
What should be checked before ordering RE18P-2DK.1E.2R?
Check the complete model number, article number 206364, required voltage and frequency operating point, electrical specifications and mechanical installation requirements before ordering.
