Crossflow Fan Design

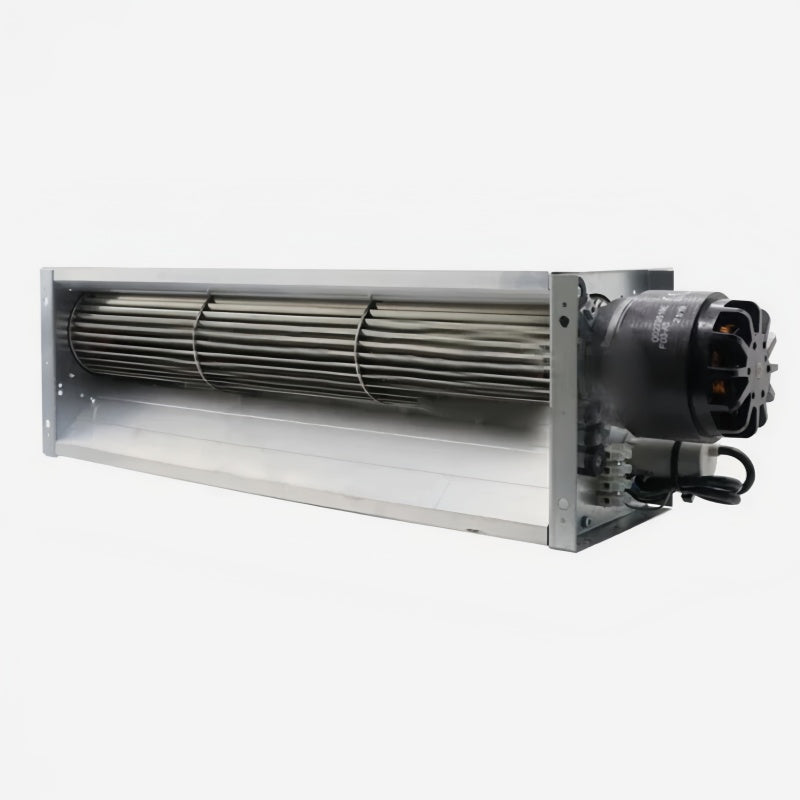

The QR08A-2EM.50.CH is a single crossflow fan designed around an 80 mm diameter cylindrical turbine.
ZIEHL-ABEGG
ZIEHL-ABEGG QR08A-2EM.50.CH Crossflow Fan 230 VAC 240 W 1250 m³/h
$1,044.22
Available
PRODUCT GALLERY
01 / 7
Product images for part identification
ZIEHL-ABEGG
ZIEHL-ABEGG QR08A-2EM.50.CH Crossflow Fan 230 VAC 240 W 1250 m³/h
PRODUCT PRICE
USD
$1,044.22
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | QR08A-2EM.50.CH |
| Product Category | Crossflow Fan |
| Reference Number | 11180609 |
| Fan Type | Single Crossflow Fan |
| Rated Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Rated Current | 1.05 A |
| Power Input | 240 W |
| Speed | 2300 RPM |
| Air Flow | 1250 m³/h |
| Turbine Diameter | 80 mm |
| Turbine Length | 500 mm |
| Minimum Pressure | 50 Pa |
| Electrical Connection | Terminal Block |
| Bearing Type | Bearings |
Key Features
500 mm Turbine Length
The documented turbine length is 500 mm for distributing airflow across an extended outlet width.
230 VAC Supply
The documented electrical configuration uses a 230 VAC supply with 50/60 Hz frequency.
1250 m³/h Air Flow
The documented airflow value for this fan configuration is 1250 m³/h.
240 W Power Input
The documented power input is 240 W with a rated current of 1.05 A.
Terminal Block Connection
The electrical connection for this configuration is documented as a terminal block.
Applications
- Air curtain systems
- Air-conditioning equipment
- Heating equipment airflow
- Industrial ventilation equipment
- Industrial machinery cooling
- Air distribution systems
- Process equipment ventilation
- Crossflow fan system maintenance
Purchase Information
We support online purchase of the ZIEHL-ABEGG QR08A-2EM.50.CH Crossflow Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG QR08A-2EM.50.CH?
It is a single crossflow fan with an 80 mm diameter and 500 mm long turbine.
What reference number is listed for QR08A-2EM.50.CH?
The documented reference number is 11180609.
What voltage does QR08A-2EM.50.CH use?
The documented supply voltage is 230 VAC.
What frequency does QR08A-2EM.50.CH support?
The documented frequency is 50/60 Hz.
What is the power input?
The documented power input is 240 W.
What is the rated current?
The documented rated current is 1.05 A.
What is the speed of QR08A-2EM.50.CH?
The documented rotational speed is 2300 RPM.
What is the airflow of QR08A-2EM.50.CH?
The documented airflow value is 1250 m³/h.
What are the turbine dimensions?
The documented turbine diameter is 80 mm and the turbine length is 500 mm.
What electrical connection does the fan use?
The documented electrical connection is a terminal block.
What air temperature range is documented?
The documented conveyed-air temperature range is -25°C to +65°C.
What should be checked before ordering QR08A-2EM.50.CH?
Check the complete model number, reference number 11180609, 230 VAC supply, 50/60 Hz frequency, turbine dimensions, airflow, electrical connection and installation dimensions before purchasing.
