Sickle-Blade Axial Design

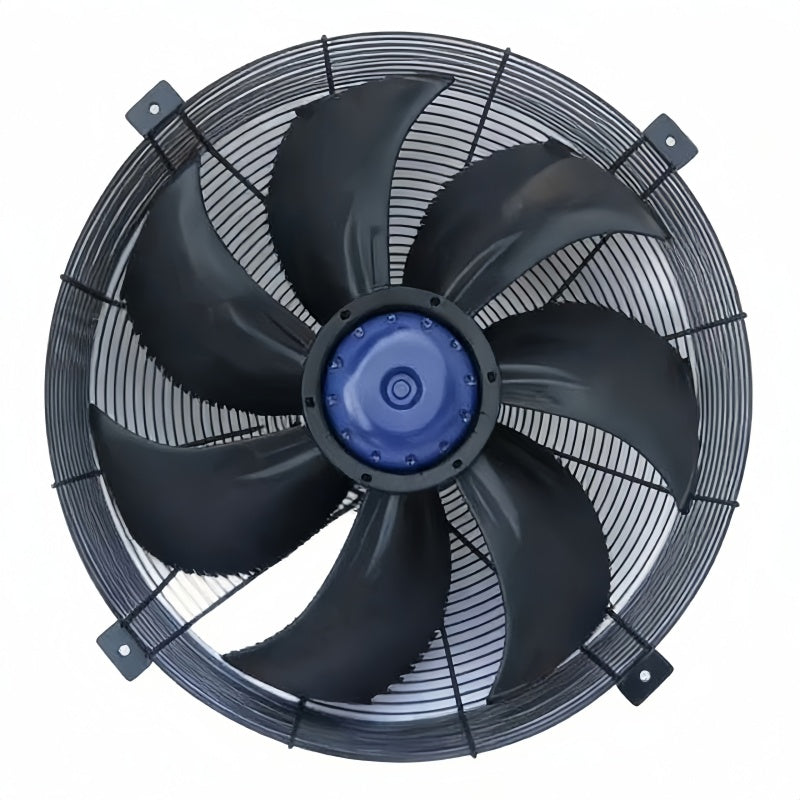

The FN080-ZIQ.GL.V7P3 is an axial fan configuration using aluminium sickle-shaped blades.
ZIEHL-ABEGG
ZIEHL-ABEGG FN080-ZIQ.GL.V7P3 Axial Fan 380-480V 3.1kW 1100rpm
$1,617.53
Available
PRODUCT GALLERY
01 / 7
Product images for part identification
ZIEHL-ABEGG
ZIEHL-ABEGG FN080-ZIQ.GL.V7P3 Axial Fan 380-480V 3.1kW 1100rpm
PRODUCT PRICE
USD
$1,617.53
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN080-ZIQ.GL.V7P3 |
| Product Category | Axial Fan |
| Fan Design | Axial Fan with Sickle Blades |
| Motor Technology | EC |
| Rated Voltage | 3~ 380-480 V |
| Rated Frequency | 50/60 Hz |
| Power Input | 3.10 kW |
| Rated Current | 4.80-3.80 A |
| Rated Speed | 1100 rpm |
| Electrical Connection | Integrated Controller |
| Degree of Protection | IP54 |
| Thermal Class | THCL 155 |
| Motor Protection | Integrated Active Temperature Management |
| Installation Position | H / Vu / Vo |
| Blade Material | Aluminium |
| Rotor Material | Aluminium |
| Bearing | Ball Bearing with Long-Time Lubrication |
| Guard Grille Type | Ring Grille |
| Weight | 51.4 kg |
Key Features
380-480 V EC Motor
The documented electrical configuration uses EC motor technology with a three-phase 380-480 V supply at 50/60 Hz.
3.10 kW Power Input
The documented rated values specify 3.10 kW power input and a current range of 4.80-3.80 A.
1100 rpm Rated Speed
The documented rated operating speed for FN080-ZIQ.GL.V7P3 is 1100 rpm.
Integrated Controller
The electrical configuration incorporates an integrated controller together with active motor temperature management.
Multiple Installation Positions
The documented fitting positions are H, Vu and Vo, providing defined installation options for equipment integration.
Applications
- Industrial ventilation systems
- Air handling equipment
- HVAC airflow systems
- Industrial machinery cooling
- Heat exchanger airflow
- Condenser airflow systems
- Forced-air cooling systems
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN080-ZIQ.GL.V7P3 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN080-ZIQ.GL.V7P3?
ZIEHL-ABEGG FN080-ZIQ.GL.V7P3 is an axial fan with aluminium sickle blades and EC motor technology.
What voltage does FN080-ZIQ.GL.V7P3 use?
The documented rated supply range is three-phase 380-480 V.
What frequency is specified?
The documented rated frequency is 50/60 Hz.
What is the power input?
The documented rated power input is 3.10 kW.
What is the rated current?
The documented rated current range is 4.80-3.80 A across the specified voltage range.
What is the rated speed?
The documented rated speed is 1100 rpm.
What degree of protection does FN080-ZIQ.GL.V7P3 have?
The documented degree of protection is IP54.
What temperature range is documented?
The minimum operating temperature is -35 °C and the documented maximum flow medium temperature at rated values is 55 °C.
What installation positions are supported?
The documented fitting positions are H, Vu and Vo.
What materials are used for the impeller?
The documented rotor and fan blades are made of aluminium.
What applications can FN080-ZIQ.GL.V7P3 be considered for?
It can be considered for industrial ventilation, HVAC, air handling, condenser and equipment cooling systems after electrical, airflow and installation requirements have been checked.
What should be checked before ordering FN080-ZIQ.GL.V7P3?
Check the complete model designation, voltage range, frequency, current, power, speed, temperature limits, dimensions, controller requirements and installation position against the equipment documentation.
