800 mm FE2owlet Axial Fan
The FN080-ADK.6N.V7P5 is an 800 mm axial fan from the ZIEHL-ABEGG FE2owlet AC product range.
ZIEHL-ABEGG
ZIEHL-ABEGG FN080-ADK.6N.V7P5 Axial Fan 400 VAC 800 mm 840 W
$889.75
Available
PRODUCT GALLERY
01 / 7

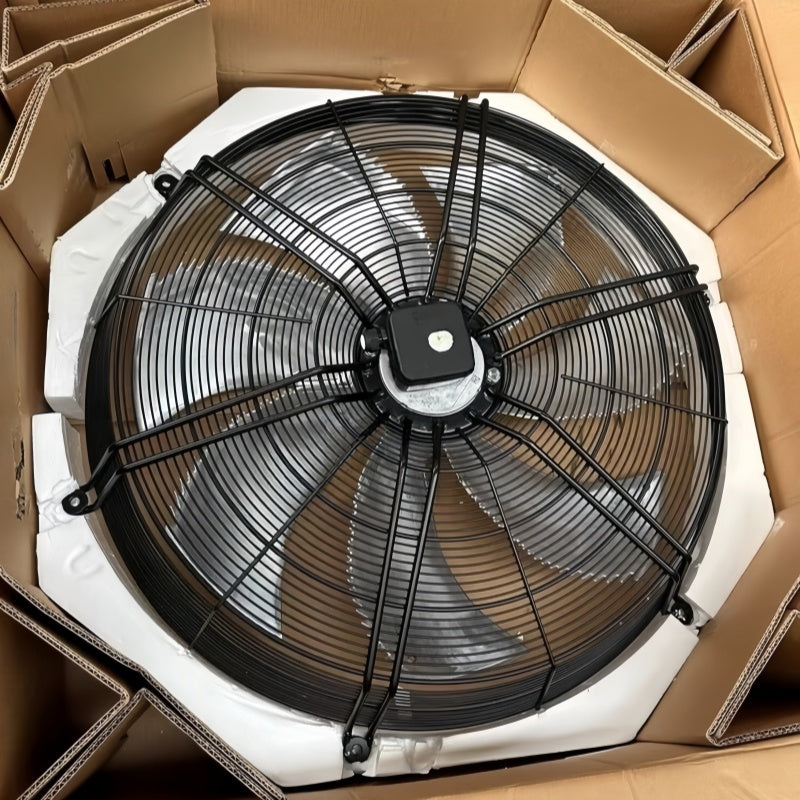

Product images for part identification
ZIEHL-ABEGG
ZIEHL-ABEGG FN080-ADK.6N.V7P5 Axial Fan 400 VAC 800 mm 840 W
PRODUCT PRICE
USD
$889.75
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN080-ADK.6N.V7P5 |
| Product Category | Axial Fan |
| Article Number | 168901 |
| Series | FE2owlet |
| Fan Diameter | 800 mm |
| Motor Technology | AC |
| Motor Type | External Rotor Motor |
| Motor Pole Count | 6-Pole |
| Power Supply | 3-Phase |
| Rated Voltage | 400 VAC |
| Frequency | 50/60 Hz |
| Power Input at 50 Hz | 840 W / 460 W |
| Rated Current at 50 Hz | 2.20 A / 1.00 A |
| Speed at 50 Hz | 650 RPM / 480 RPM |
| Power Input at 60 Hz | 1.10 kW / 0.50 kW at 400 VAC |
| Rated Current at 60 Hz | 2.40 A / 1.05 A at 400 VAC |
| Speed at 60 Hz | 670 RPM / 450 RPM at 400 VAC |
| Electrical Connection | Terminal Box |
| Number of Blades | 7 |
| Blade Material | Aluminum |
| Degree of Protection | IP54 |
| Motor Protection | Thermal Contact |
| Weight | 37.90 kg |
Key Features
Three-Phase AC Motor
The fan uses a three-phase 6-pole external rotor motor for industrial airflow applications.
Delta / Star Operation
The documented 50 Hz operating points include 840 W at 650 RPM and 460 W at 480 RPM.
Seven Aluminum Blades
The documented impeller configuration uses seven aluminum blades with an 800 mm nominal diameter.
IP54 Protection
The motor has an IP54 degree of protection and integrated thermal-contact protection.
Terminal Box Connection
Electrical connection is provided through the documented terminal box configuration.
Applications
- Industrial ventilation systems
- Refrigeration condensers
- Dry cooler systems
- Cooling tower equipment
- Air-conditioning equipment
- Industrial equipment cooling
- Air handling installations
- Axial fan system maintenance
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN080-ADK.6N.V7P5 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN080-ADK.6N.V7P5?
It is an 800 mm FE2owlet axial fan with a three-phase AC external rotor motor.
What is the article number of FN080-ADK.6N.V7P5?
The documented article number is 168901.
What voltage does FN080-ADK.6N.V7P5 use?
The documented 50 Hz electrical configuration uses three-phase 400 VAC with delta or star connection.
What is the power input at 50 Hz?
The documented values are 840 W in delta connection and 460 W in star connection.
What is the rated current at 50 Hz?
The documented rated current is 2.20 A in delta connection and 1.00 A in star connection.
What are the speeds at 50 Hz?
The documented speeds are 650 RPM in delta connection and 480 RPM in star connection.
Can FN080-ADK.6N.V7P5 operate at 60 Hz?
Yes. Model-specific data includes 60 Hz operating points at 400 VAC and 460 VAC.
What is the fan diameter?
The documented nominal fan diameter is 800 mm.
What material are the blades?
The documented blade material is aluminum.
What is the protection rating?
The documented degree of protection is IP54 with thermal-contact motor protection.
What is the documented weight?
ZIEHL-ABEGG catalogue data lists a weight of 37.90 kg for article number 168901.
What should be checked before ordering FN080-ADK.6N.V7P5?
Check the complete model number, article number 168901, 800 mm diameter, supply voltage, frequency, delta or star connection, electrical ratings and mechanical installation requirements before purchasing.
