710 mm FE2owlet Axial Fan
The FN071-SDQ.6F.V7P1 is a 710 mm axial fan from the ZIEHL-ABEGG FE2owlet AC range.
ZIEHL-ABEGG
ZIEHL-ABEGG FN071-SDQ.6F.V7P1 Axial Fan 400 VAC 710 mm 940 W
$992.58
Available
PRODUCT GALLERY
01 / 7

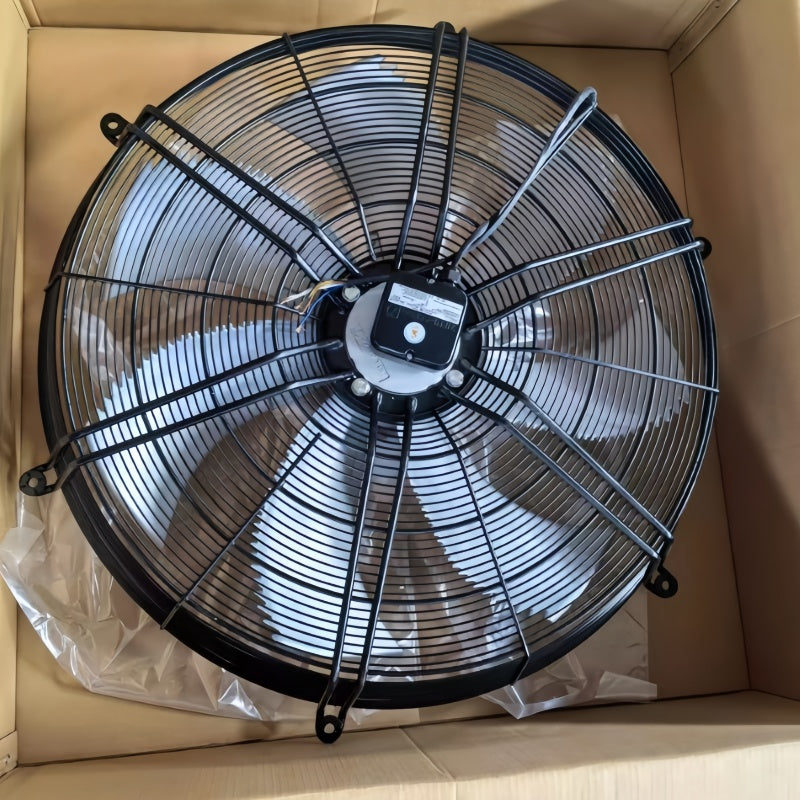

Product images for part identification
ZIEHL-ABEGG
ZIEHL-ABEGG FN071-SDQ.6F.V7P1 Axial Fan 400 VAC 710 mm 940 W
PRODUCT PRICE
USD
$992.58
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN071-SDQ.6F.V7P1 |
| Product Category | Axial Fan |
| Article Number | 141778 |
| Series | FE2owlet |
| Fan Diameter | 710 mm |
| Motor Technology | AC |
| Power Supply | 3-Phase |
| Rated Voltage | 400 VAC |
| Frequency | 50 Hz |
| Connection | Delta / Star |
| Rated Current | 1.70 A / 1.05 A |
| Power Input | 940 W / 620 W |
| Speed | 900 RPM / 690 RPM |
| Air Flow | Approx. 14400-14741 m³/h |
| Airflow Direction | V |
| Design | Q, Square Full Bell Mouth |
| Impeller Material | Aluminum |
| Degree of Protection | IP54 |
| Motor Protection | Thermal Contact |
| Weight | 34.3 kg |
Key Features
400 VAC Three-Phase Supply
The documented electrical configuration uses a three-phase 400 VAC supply at 50 Hz.
Delta / Star Operating Points
Rated data includes 940 W at 900 RPM in delta connection and 620 W at 690 RPM in star connection.
Aluminum Impeller
The documented FN071-SDQ.6F.V7P1 configuration uses an aluminum impeller with a 710 mm nominal diameter.
Square Full Bell Mouth
The Q design uses a square full bell mouth configuration with airflow direction V.
IP54 Motor Protection
The documented configuration has an IP54 degree of protection and thermal-contact motor protection.
Applications
- Industrial ventilation systems
- Refrigeration equipment
- Air-conditioning equipment
- Heat exchanger airflow systems
- Industrial equipment cooling
- Air handling installations
- Process ventilation systems
- Axial fan system maintenance
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN071-SDQ.6F.V7P1 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN071-SDQ.6F.V7P1?
It is a 710 mm FE2owlet axial fan with a three-phase AC motor and square full bell mouth design.
What is the article number of FN071-SDQ.6F.V7P1?
The documented article number is 141778.
What voltage does FN071-SDQ.6F.V7P1 use?
The documented rated supply is three-phase 400 VAC at 50 Hz.
What are the rated power values?
The documented rated operating points are 940 W in delta connection and 620 W in star connection.
What are the rated current values?
The documented rated current is 1.70 A in delta connection and 1.05 A in star connection.
What are the rated speeds?
The documented rated speeds are 900 RPM in delta connection and 690 RPM in star connection.
What is the fan diameter?
The documented nominal fan size is 710 mm.
What is the airflow of FN071-SDQ.6F.V7P1?
Published product data lists airflow around 14400 to 14741 m³/h depending on the referenced operating data.
What material is the impeller?
The documented impeller material is aluminum.
What is the protection rating?
The documented degree of protection is IP54, with thermal-contact motor protection.
What is the documented weight?
The documented weight for article number 141778 is 34.3 kg.
What should be checked before ordering FN071-SDQ.6F.V7P1?
Check the complete model number, article number 141778, 710 mm size, 400 VAC three-phase supply, delta or star operating point, airflow direction V and mechanical installation requirements before purchasing.
