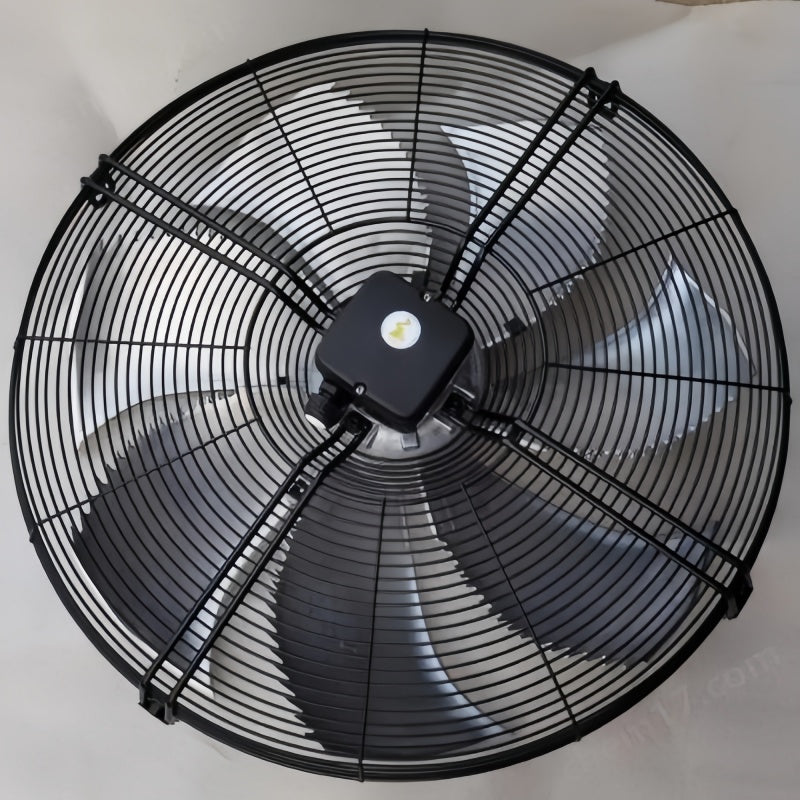

630 mm FE2owlet Axial Fan
The FN063-SDQ.4I.V7P1 is a 630 mm axial fan from the ZIEHL-ABEGG FE2owlet AC range.
1 / 7
ZIEHL-ABEGG
ZIEHL-ABEGG FN063-SDQ.4I.V7P1 Axial Fan 400 VAC 630 mm 620 W
PRODUCT PRICE
USD
$683.49
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN063-SDQ.4I.V7P1 |
| Product Category | Axial Fan |
| Article Number | 141385 |
| Series | FE2owlet |
| Fan Diameter | 630 mm |
| Motor Technology | AC |
| Power Supply | 3-Phase |
| Rated Voltage | 400 VAC |
| Frequency | 50 Hz |
| Rated Current | 1.25 A / 0.74 A |
| Power Input | 620 W / 440 W |
| Speed | 900 RPM / 720 RPM |
| Air Flow | 11100 m³/h |
| Airflow Direction | V |
| Design | Q, Square Full Bell Mouth |
| Impeller Material | Aluminum |
| Degree of Protection | IP54 |
| Motor Protection | Thermal Contact |
| Weight | 24 kg |
Key Features
400 VAC Three-Phase Supply
The documented electrical configuration uses a three-phase 400 VAC supply at 50 Hz.
Delta / Star Operating Points
Documented operating data includes 620 W at 900 RPM and 440 W at 720 RPM for the specified connection points.
11100 m³/h Air Flow
Published model-specific product data lists an airflow value of 11100 m³/h.
Square Full Bell Mouth
The Q design uses a square full bell mouth configuration with airflow direction V.
IP54 Protection
The documented configuration has an IP54 degree of protection and thermal-contact motor protection.
Applications
- Industrial ventilation systems
- Refrigeration equipment
- Air-conditioning equipment
- Transformer cooling systems
- Industrial equipment cooling
- Air handling installations
- Heating system airflow
- Axial fan system maintenance
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN063-SDQ.4I.V7P1 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN063-SDQ.4I.V7P1?
It is a 630 mm FE2owlet axial fan with a three-phase AC motor and square full bell mouth design.
What is the article number of FN063-SDQ.4I.V7P1?
The documented article number is 141385.
What voltage does FN063-SDQ.4I.V7P1 use?
The documented rated supply is three-phase 400 VAC at 50 Hz.
What are the documented power values?
The documented operating values include 620 W and 440 W for the specified connection points.
What are the documented current values?
The documented rated current values are approximately 1.25 A and 0.74 A for the specified operating points.
What are the rated speeds?
The documented operating speeds are 900 RPM and 720 RPM.
What is the fan diameter?
The documented nominal fan size is 630 mm.
What is the airflow of FN063-SDQ.4I.V7P1?
Published model-specific product data lists an airflow value of 11100 m³/h.
What material is the impeller?
The documented impeller material is aluminum.
What is the protection rating?
The documented degree of protection is IP54, with thermal-contact motor protection.
What is the documented weight?
The catalog-listed weight for article number 141385 is 24 kg.
What should be checked before ordering FN063-SDQ.4I.V7P1?
Check the complete model number, article number 141385, 630 mm size, 400 VAC three-phase supply, required connection and operating point, airflow direction V and mechanical installation requirements before purchasing.
Need help confirming a model?
Send us your part number and technical requirements.
