560 mm Axial Fan
The FN056-VDK.4M.V7P2 is a 560 mm ZIEHL-ABEGG axial fan configuration for industrial air-moving applications.
ZIEHL-ABEGG
ZIEHL-ABEGG FN056-VDK.4M.V7P2 Axial Fan 400V 1.05/0.58kW 1280/910rpm
$484.55
Available
PRODUCT GALLERY
01 / 7

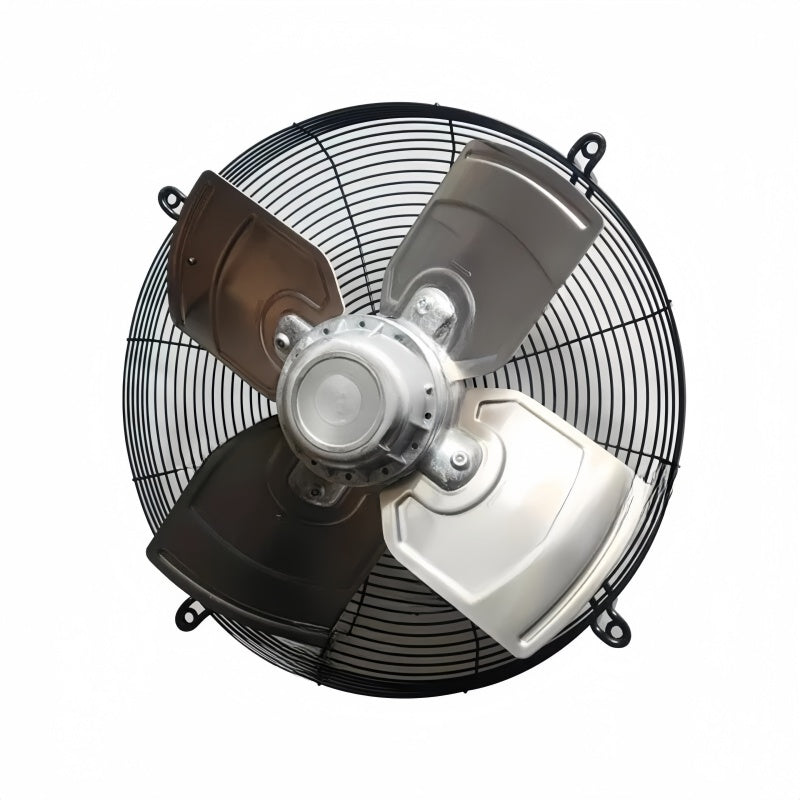

Product images for part identification
ZIEHL-ABEGG
ZIEHL-ABEGG FN056-VDK.4M.V7P2 Axial Fan 400V 1.05/0.58kW 1280/910rpm
PRODUCT PRICE
USD
$484.55
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN056-VDK.4M.V7P2 |
| Product Category | Axial Fan |
| Article Number | 159443 |
| Fan Size | 560 mm |
| Rated Voltage | 3~ 400 V ±10% Δ/Y |
| Rated Frequency | 50 Hz |
| Power Input | 1.05 / 0.58 kW |
| Power Output | 0.73 / 0.26 kW |
| Rated Current | 2.20 / 1.10 A |
| Rated Speed | 1280 / 910 rpm |
| Power Factor | 0.68 |
| Degree of Protection | IP54 |
| Thermal Class | THCL 155 |
| Weight | Approx. 15.4 kg |
Key Features
400 V Delta/Star Supply
The documented 50 Hz electrical configuration uses a three-phase 400 V ±10% supply with delta/star connection.
Dual Operating Values
The 50 Hz performance data specify 1.05 / 0.58 kW input power and 2.20 / 1.10 A rated current.
1280 / 910 rpm Speed
The documented corresponding speed values at 400 V and 50 Hz are 1280 and 910 rpm.
IP54 Protection
The documented motor configuration has an IP54 degree of protection and thermal class THCL 155.
Article Number 159443
The manufacturer FANselect documentation identifies FN056-VDK.4M.V7P2 with article number 159443.
Applications
- Industrial ventilation systems
- HVAC air movement
- Refrigeration equipment airflow
- Heat exchanger airflow
- Industrial machinery cooling
- Air handling equipment
- Condenser airflow systems
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN056-VDK.4M.V7P2 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN056-VDK.4M.V7P2?
ZIEHL-ABEGG FN056-VDK.4M.V7P2 is a 560 mm axial fan identified by article number 159443.
What voltage does FN056-VDK.4M.V7P2 use?
The documented 50 Hz configuration uses three-phase 400 V ±10% with delta/star connection.
What is the power input at 400 V 50 Hz?
The documented power input values are 1.05 / 0.58 kW.
What is the rated current at 400 V 50 Hz?
The documented current values are 2.20 / 1.10 A.
What is the rated speed?
The documented 50 Hz speed values are 1280 / 910 rpm.
What is the fan size?
The documented fan diameter is 560 mm.
What degree of protection does FN056-VDK.4M.V7P2 have?
The documented degree of protection is IP54.
What thermal class is specified?
The documented thermal class is THCL 155.
What is the maximum flow medium temperature at 400 V 50 Hz?
The documented maximum flow medium temperature is 70 °C.
Can FN056-VDK.4M.V7P2 also operate at 60 Hz?
Manufacturer FANselect data also list 60 Hz operating points for 400 V and 460 V configurations. The required supply and operating point should be checked before installation.
What applications can FN056-VDK.4M.V7P2 be considered for?
It can be considered for industrial ventilation, HVAC, refrigeration, heat exchanger and equipment cooling applications after airflow and installation requirements have been checked.
What should be checked before ordering FN056-VDK.4M.V7P2?
Check the complete model and article number, voltage, frequency, connection, power, current, speed, dimensions and installation requirements against the equipment documentation.
