ZIEHL-ABEGG

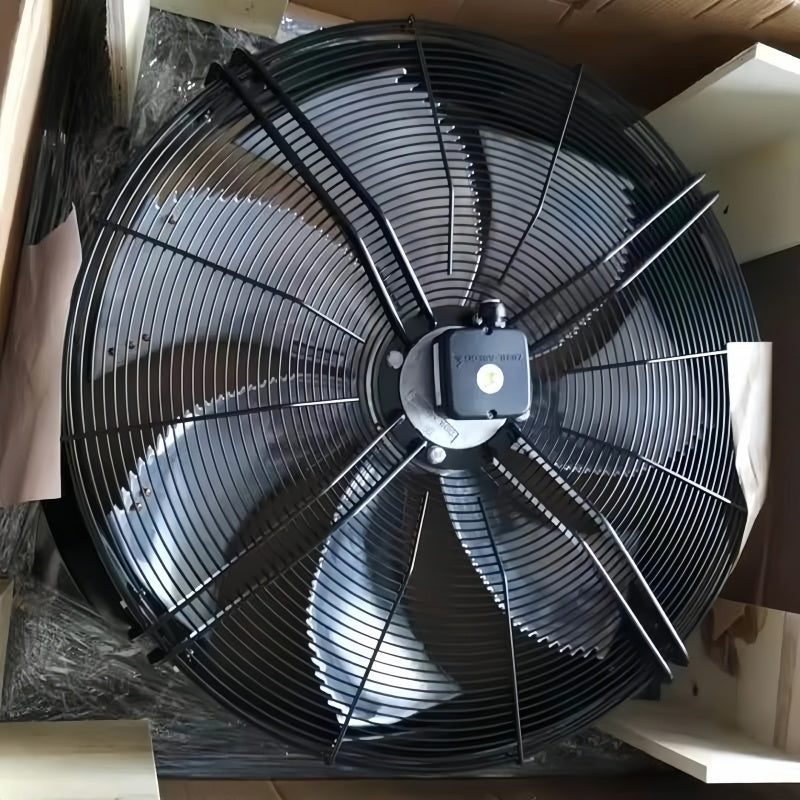

ZIEHL-ABEGG FN050-VDQ.4I.A7P1 Axial Fan 400V 840W 1340rpm

SKU: CL5-ZIEHL-ABEGG-FN050-VDQ.4I.A7P1

$672.23

Available

PRODUCT GALLERY 01 / 7

✓ Product images for part identification

ZIEHL-ABEGG

ZIEHL-ABEGG FN050-VDQ.4I.A7P1 Axial Fan 400V 840W 1340rpm

SKU: CL5-ZIEHL-ABEGG-FN050-VDQ.4I.A7P1

PRODUCT PRICE USD

$672.23

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	ZIEHL-ABEGG
Model Number	FN050-VDQ.4I.A7P1
Product Category	Axial Fan
Series	FE2owlet
Article Number	140083
Motor Technology	AC
Rated Voltage	3~ 400 V
Rated Frequency	50 Hz
Input Power	0.84 kW
Rated Current	1.45 A
Rated Speed	1340 rpm
Fan Size	500 mm
Design	Q
Airflow Direction	A
Degree of Protection	IP54
Thermal Class	THCL 155
Number of Blades	7
Maximum Volume Flow	9500 m³/h
Maximum Pressure	180 Pa
Weight	20.1 kg

Key Features

500 mm FE2owlet Axial Fan

The FN050-VDQ.4I.A7P1 is a 500 mm axial fan configuration from the ZIEHL-ABEGG FE2owlet product range.

400 V AC Motor

The documented configuration uses AC motor technology with a three-phase 400 V rated supply at 50 Hz.

840 W Input Power

The documented operating data specify 0.84 kW input power and 1.45 A rated current.

1340 rpm Rated Speed

The documented rated speed for this FN050 configuration is 1340 rpm.

IP54 Protection

The documented motor configuration has an IP54 degree of protection and thermal class THCL 155.

Q Design and Airflow Direction A

The manufacturer documentation identifies this article with design Q and airflow direction A.

Applications

Industrial ventilation systems
HVAC air movement
Refrigeration equipment airflow
Heat exchanger airflow
Industrial machinery cooling
Air handling equipment
Condenser airflow systems
Industrial air circulation

Purchase Information

We support online purchase of the ZIEHL-ABEGG FN050-VDQ.4I.A7P1 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is ZIEHL-ABEGG FN050-VDQ.4I.A7P1?
ZIEHL-ABEGG FN050-VDQ.4I.A7P1 is a 500 mm FE2owlet axial fan with AC motor technology.

What is the article number of FN050-VDQ.4I.A7P1?
The documented article number for this configuration is 140083.

What voltage does FN050-VDQ.4I.A7P1 use?
The documented rated supply is three-phase 400 V at 50 Hz.

What is the input power?
The documented input power is 0.84 kW.

What is the rated speed?
The documented rated speed is 1340 rpm.

What is the fan size?
The documented blade diameter is 500 mm.

What is the maximum volume flow?
Published performance data specify a maximum volume flow of 9500 m³/h where the specified static pressure is 0 Pa.

What degree of protection does the fan have?
The documented degree of protection is IP54.

What design and airflow direction are specified?
The documented configuration is design Q with airflow direction A.

What is the maximum permissible flow medium temperature?
The documented maximum permissible flow medium temperature is 70 °C.

What applications can FN050-VDQ.4I.A7P1 be considered for?
It can be considered for industrial ventilation, HVAC, refrigeration, heat exchanger and equipment cooling applications after operating requirements have been checked.

What should be checked before ordering FN050-VDQ.4I.A7P1?
Check the complete model and article number, voltage, frequency, current, power, speed, airflow direction, dimensions and installation requirements against the equipment documentation.
