Sickle-Blade Axial Design

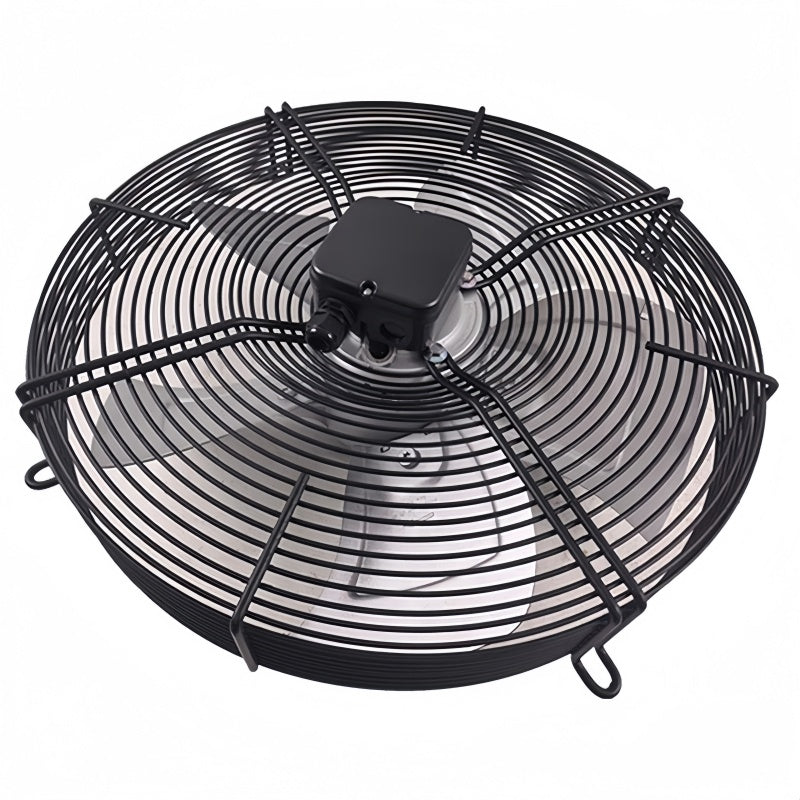

The FN050-4DK.4I.V7P1 is an axial fan with aluminium sickle blades for industrial air-moving applications.
1 / 7
ZIEHL-ABEGG
ZIEHL-ABEGG FN050-4DK.4I.V7P1 Axial Fan 230/400V 770W 1300rpm
PRODUCT PRICE
USD
$445.61
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN050-4DK.4I.V7P1 |
| Product Category | Axial Fan |
| Article Number | 153540 |
| Designation | Axial Fan with Sickle Blades |
| Rated Voltage at 50 Hz | 3~ 230/400 V ±10% Δ/Y |
| Rated Frequency | 50/60 Hz |
| Power Input at 50 Hz | 0.77 kW |
| Rated Current at 50 Hz | 2.95 / 1.70 A |
| Rated Speed at 50 Hz | 1300 rpm |
| Power Factor at 50 Hz | 0.64 |
| Rated Voltage at 60 Hz | 3~ 230/400 V ±10% Δ/Y |
| Power Input at 60 Hz | 1.10 kW |
| Rated Current at 60 Hz | 3.30 / 1.90 A |
| Rated Speed at 60 Hz | 1400 rpm |
| Degree of Protection | IP54 |
| Thermal Class | THCL 155 |
| Electrical Connection | Terminal Box K62 |
| Motor Protection | Thermal Contact |
| Installation Position | H / Vu / Vo |
| Blade Material | Aluminium |
| Rotor Material | Aluminium |
| Bearing | Ball Bearing with Long-Time Lubrication |
| Guard Grille Type | Ring Grille |
| Connection Diagram | 1360-106XA |
Key Features
230/400 V at 50 Hz
The documented 50 Hz configuration operates from a three-phase 230/400 V supply with delta/star connection.
770 W Input Power
The documented 50 Hz operating point specifies 0.77 kW input power and 2.95 / 1.70 A rated current.
1300 rpm at 50 Hz
The documented rated speed at the 50 Hz operating point is 1300 rpm.
50/60 Hz Operation
Manufacturer documentation also specifies 60 Hz operating points, including 230/400 V and 265/460 V supply configurations.
IP54 Motor Protection
The documented configuration has an IP54 degree of protection, THCL 155 thermal class and thermal-contact motor protection.
Applications
- Industrial ventilation systems
- Industrial machinery cooling
- Air handling equipment
- HVAC airflow systems
- Heat exchanger airflow
- Condenser cooling systems
- Forced-air cooling equipment
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN050-4DK.4I.V7P1 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN050-4DK.4I.V7P1?
ZIEHL-ABEGG FN050-4DK.4I.V7P1 is an axial fan with sickle-shaped aluminium blades.
What is the article number of FN050-4DK.4I.V7P1?
The documented ZIEHL-ABEGG article number is 153540.
What voltage does FN050-4DK.4I.V7P1 use at 50 Hz?
The documented rated supply is three-phase 230/400 V ±10% with delta/star connection.
What is the power input at 50 Hz?
The documented input power is 0.77 kW.
What is the rated current at 50 Hz?
The documented rated current is 2.95 A in delta connection and 1.70 A in star connection.
What is the rated speed at 50 Hz?
The documented rated speed is 1300 rpm.
Can FN050-4DK.4I.V7P1 operate at 60 Hz?
Yes. Manufacturer documentation includes 60 Hz rated operating points for this model.
What degree of protection is specified?
The documented degree of protection is IP54.
What temperature limits are documented?
The minimum operating temperature is -40 °C and the documented maximum flow medium temperature at the rated operating points is 70 °C.
What materials are used for the blades and rotor?
Manufacturer documentation specifies aluminium for both the fan blades and rotor.
What applications can FN050-4DK.4I.V7P1 be considered for?
It can be considered for industrial ventilation, air handling, machinery cooling, heat exchanger and other forced-air systems after operating requirements have been checked.
What should be checked before ordering FN050-4DK.4I.V7P1?
Check the complete model and article number, voltage, frequency, delta or star connection, power, current, speed, temperature limits, dimensions and installation position against the equipment documentation.
