400 mm Axial Fan

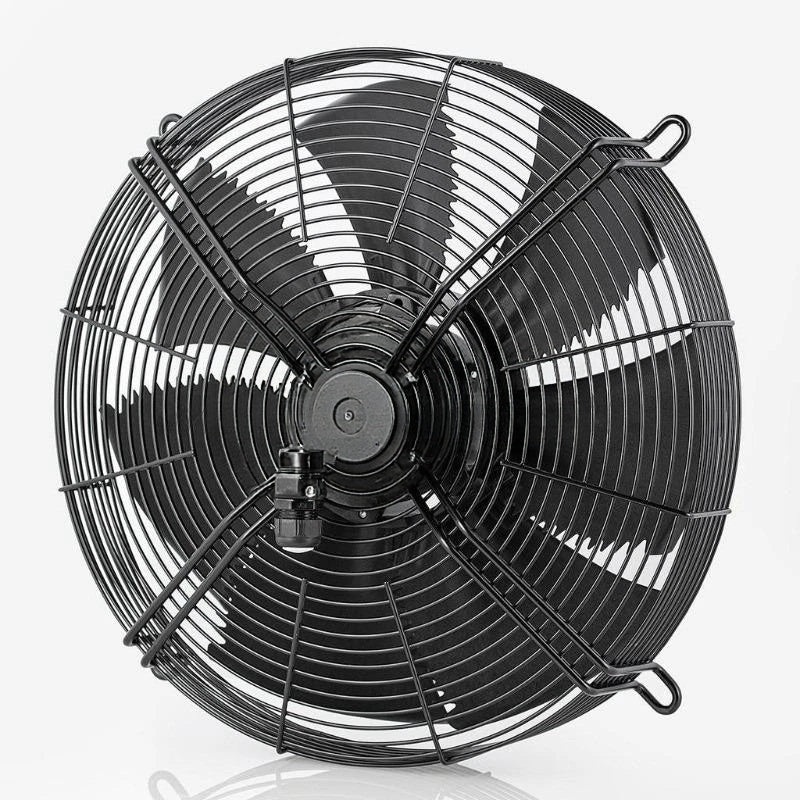

The FN040-VDK.0F.V7P1 is a 400 mm FE2owlet axial fan.
1 / 7
ZIEHL-ABEGG
ZIEHL-ABEGG FN040-VDK.0F.V7P1 Axial Fan 400 VAC 400 mm 230 W
PRODUCT PRICE
USD
$346.51
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN040-VDK.0F.V7P1 |
| Product Category | Axial Fan |
| Article Number | 152907 |
| Series | FE2owlet |
| Fan Diameter | 400 mm |
| Motor Technology | AC |
| Power Supply | 3-Phase |
| Rated Voltage | 400 VAC |
| Frequency | 50 Hz |
| Rated Current | 0.46 A / 0.27 A |
| Power Input | 230 W / 170 W |
| Speed | 1360 RPM / 1080 RPM |
| Air Flow | 3800 m³/h / 3300 m³/h |
| Airflow Direction | Suction |
| Degree of Protection | IP54 |
| Motor Protection | Thermal Contact |
| Impeller Material | Composite Material |
Key Features
400 VAC 3-Phase Supply
The documented 50 Hz electrical configuration uses a 400 VAC three-phase supply.
Delta / Star Connection
The documented 50 Hz operating data includes Delta and Star connection points.
230 / 170 W Power Input
The documented power input is 230 W in Delta connection and 170 W in Star connection at 50 Hz.
3800 / 3300 m³/h Air Flow
The documented airflow values are 3800 m³/h in Delta connection and 3300 m³/h in Star connection.
IP54 Protection
The documented degree of protection is IP54, with thermal-contact motor protection.
Applications
- Industrial ventilation systems
- Refrigeration equipment ventilation
- Air-conditioning equipment
- Industrial machinery cooling
- Equipment ventilation systems
- Air handling equipment
- Industrial air circulation
- Axial fan system maintenance
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN040-VDK.0F.V7P1 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN040-VDK.0F.V7P1?
ZIEHL-ABEGG FN040-VDK.0F.V7P1 is a 400 mm FE2owlet axial fan with an AC motor.
What is the article number of FN040-VDK.0F.V7P1?
The documented article number is 152907.
What voltage does FN040-VDK.0F.V7P1 use?
The documented 50 Hz operating voltage is 400 VAC three-phase.
What connection does FN040-VDK.0F.V7P1 use?
The documented 50 Hz operating data includes Delta and Star connections.
What is the rated current of FN040-VDK.0F.V7P1?
The documented current is 0.46 A in Delta connection and 0.27 A in Star connection at 50 Hz.
What is the power input of FN040-VDK.0F.V7P1?
The documented power input is 230 W in Delta connection and 170 W in Star connection at 50 Hz.
What is the speed of FN040-VDK.0F.V7P1?
The documented speed is 1360 RPM in Delta connection and 1080 RPM in Star connection at 50 Hz.
What airflow does FN040-VDK.0F.V7P1 provide?
The documented airflow is 3800 m³/h in Delta connection and 3300 m³/h in Star connection.
What is the protection rating of FN040-VDK.0F.V7P1?
The documented degree of protection is IP54.
What motor protection is documented?
The motor is documented with thermal-contact protection.
What applications can FN040-VDK.0F.V7P1 be considered for?
It can be considered for industrial ventilation, refrigeration, air-conditioning and equipment-cooling applications after the electrical and mechanical requirements have been checked.
What should be checked before ordering FN040-VDK.0F.V7P1?
Check the complete model number, article number 152907, 400 mm fan size, 400 VAC three-phase supply, required Delta or Star connection, current, power input, speed, airflow and mechanical installation requirements before purchasing.
Need help confirming a model?
Send us your part number and technical requirements.
