910 mm Axial Fan
The FC091-SDS.7Q.V7 is a 910 mm axial fan with die-cast aluminum blades for industrial air-moving applications.
ZIEHL-ABEGG

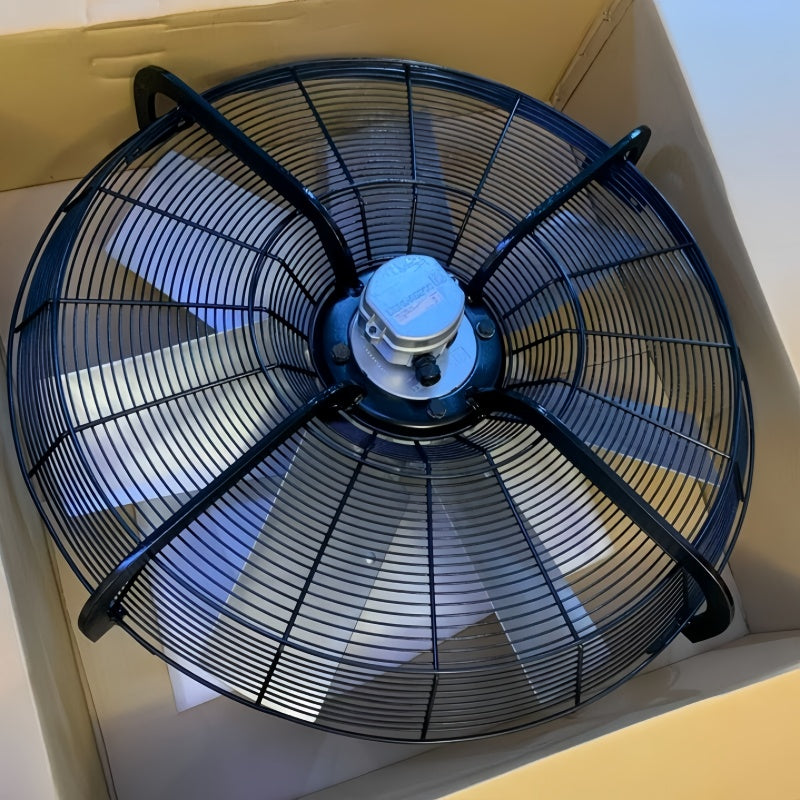

ZIEHL-ABEGG FC091-SDS.7Q.V7 Axial Fan 400 VAC 910 mm 3.60 kW
$1,599.41
Available
PRODUCT GALLERY
01 / 7
Product images for part identification
ZIEHL-ABEGG
ZIEHL-ABEGG FC091-SDS.7Q.V7 Axial Fan 400 VAC 910 mm 3.60 kW
PRODUCT PRICE
USD
$1,599.41
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FC091-SDS.7Q.V7 |
| Product Category | Axial Fan |
| Fan Design | Axial Fan with Die-Cast Blades |
| Fan Diameter | 910 mm |
| Motor Technology | AC |
| Power Supply | 3-Phase |
| Rated Voltage | 400 VAC ±10% |
| Frequency | 50 Hz |
| Rated Current | 7.20 A / 4.30 A |
| Power Input | 3.60 kW / 2.50 kW |
| Speed | 890 RPM / 700 RPM |
| Air Flow | 37500 m³/h / 30050 m³/h |
| Airflow Direction | Suction |
| Electrical Connection | Terminal Box K07 |
| Degree of Protection | IP54 |
| Thermal Class | THCL155 |
| Motor Protection | Thermal Contact |
| Blade Material | Aluminum |
| Weight | 52.9 kg |
Key Features
400 VAC Three-Phase Supply
The documented electrical configuration uses a three-phase 400 VAC ±10% supply at 50 Hz.
Delta / Star Operation
Documented operating points are 3.60 kW at 890 RPM in delta connection and 2.50 kW at 700 RPM in star connection.
High-Volume Airflow
The documented airflow values are 37500 m³/h in delta connection and 30050 m³/h in star connection.
IP54 Protection
The documented configuration has an IP54 degree of protection with THCL155 thermal class.
Thermal Contact Protection
The motor incorporates thermal-contact protection and uses terminal box K07 for electrical connection.
Applications
- Industrial ventilation systems
- Refrigeration equipment
- Air-conditioning equipment
- Transformer cooling systems
- Air handling equipment
- Agricultural ventilation systems
- Process ventilation systems
- Industrial equipment cooling
Purchase Information
We support online purchase of the ZIEHL-ABEGG FC091-SDS.7Q.V7 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FC091-SDS.7Q.V7?
It is a 910 mm three-phase AC axial fan with die-cast aluminum blades.
What voltage does FC091-SDS.7Q.V7 use?
The documented rated supply is three-phase 400 VAC ±10% at 50 Hz.
What are the power ratings?
The documented power input is 3.60 kW in delta connection and 2.50 kW in star connection.
What are the rated current values?
The documented rated current is 7.20 A in delta connection and 4.30 A in star connection.
What are the fan speeds?
The documented speeds are 890 RPM in delta connection and 700 RPM in star connection.
What is the airflow of FC091-SDS.7Q.V7?
Published product data lists 37500 m³/h in delta connection and 30050 m³/h in star connection.
What is the fan diameter?
The documented fan diameter is 910 mm.
What material are the blades?
The documented blade material is aluminum.
What is the protection rating?
The documented degree of protection is IP54 with THCL155 thermal class.
What electrical connection is used?
The documented electrical connection is terminal box K07.
What is the operating temperature range?
The documented minimum operating temperature is -40°C and the maximum permissible air temperature is 60°C.
What should be checked before ordering FC091-SDS.7Q.V7?
Check the complete model number, article-specific configuration, 910 mm diameter, 400 VAC three-phase supply, delta or star operating point, airflow direction and mechanical installation requirements before purchasing.
