220-240 VAC Input
Rated for 220-240 VAC at 50/60 Hz with a current draw of 0.13 A.
Suntronix
Suntronix SJ1238HA2 Axial Fan 220VAC 120mm
$13.98
Available
PRODUCT GALLERY
01 / 2

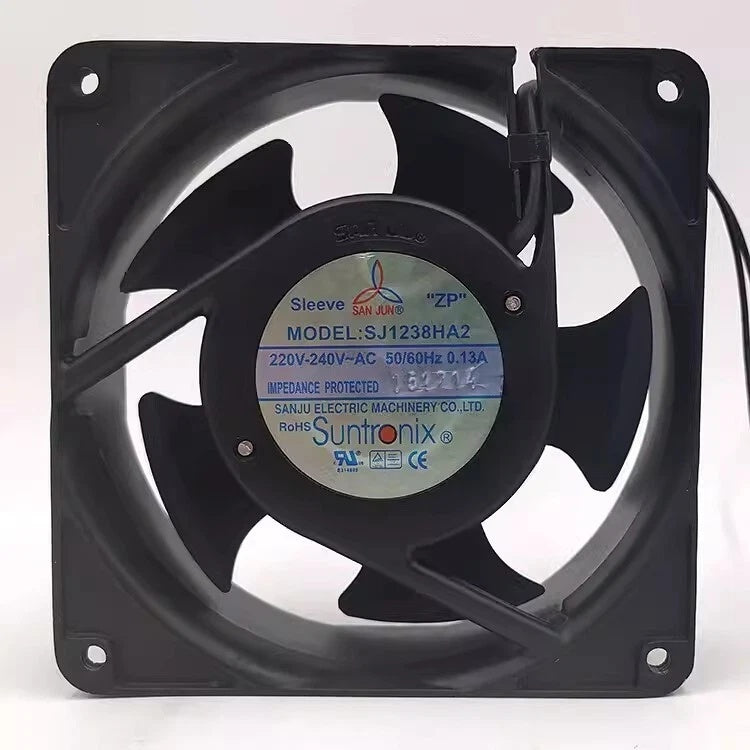

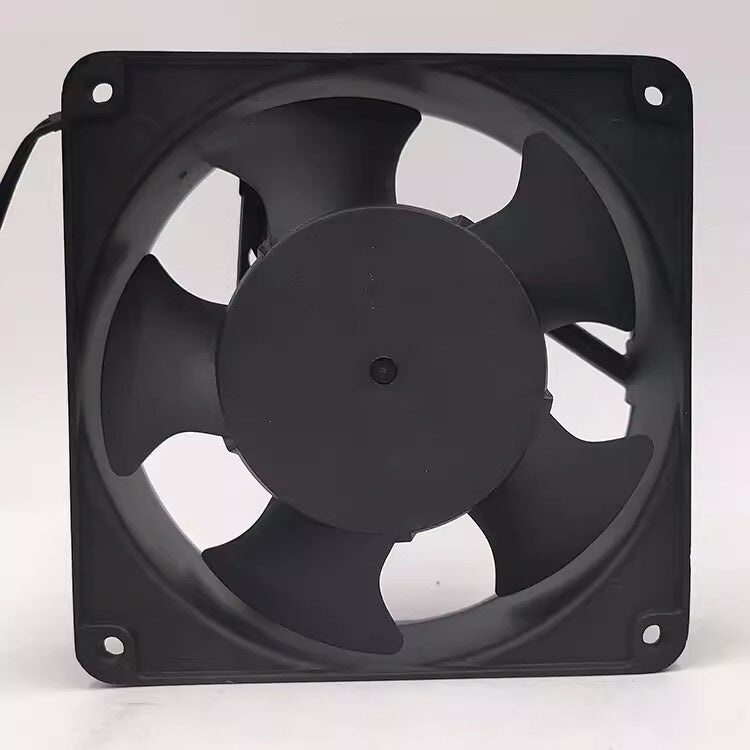

Product images for part identification
Suntronix
Suntronix SJ1238HA2 Axial Fan 220VAC 120mm
PRODUCT PRICE
USD
$13.98
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Suntronix |
| Model Number | SJ1238HA2 |
| Product Category | Axial Fan |
| Voltage | 220-240 VAC |
| Frequency | 50/60 Hz |
| Current | 0.13 A |
| Power | 22/15 W |
| Fan Speed | 2600/3000 RPM |
| Air Volume | 2.37/2.83 m³/min |
| Noise Level | 45/51 dB-A |
| Frame Size | 120 x 120 x 38 mm |
| Bearing Type | Ball Bearing |
| Weight | 520 g |
| Operating Temperature | -20°C to +75°C |
Key Features
Dual-Speed Performance
Documented speed is 2600 RPM at 50 Hz and 3000 RPM at 60 Hz, with corresponding air volumes of 2.37 and 2.83 m³/min.
120 x 120 x 38 mm Frame
The SJ1238HA2 uses a 120 mm square frame with a 38 mm depth and weighs approximately 520 g.
Ball Bearing Construction
Supplier specifications identify a ball bearing type for this axial fan.
Wide Operating Temperature
The documented operating temperature range is -20°C to +75°C.
Applications
- Industrial cabinet ventilation
- Power supply cooling
- Control panel thermal management
- Machinery enclosure airflow
- AC distribution equipment cooling
- General industrial forced-air cooling
Purchase Information
We support online purchase of the Suntronix SJ1238HA2 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Suntronix SJ1238HA2? The SJ1238HA2 is an AC axial fan with a 120 x 120 x 38 mm frame, rated for 220-240 VAC operation.
What voltage does the SJ1238HA2 use? It operates on 220-240 VAC at 50/60 Hz.
What is the current draw? The documented current is 0.13 A.
What is the power consumption? Power is listed as 22/15 W.
What are the fan speeds? Speed is 2600 RPM at 50 Hz and 3000 RPM at 60 Hz.
What is the air volume? Air volume is 2.37 m³/min at 50 Hz and 2.83 m³/min at 60 Hz.
What is the noise level? Noise is documented at 45/51 dB-A.
What bearing type is used? The fan uses a ball bearing.
What is the operating temperature range? The documented range is -20°C to +75°C.
What are the dimensions and weight? The frame is 120 x 120 x 38 mm and the weight is approximately 520 g.
