24 VDC Brushless Cooling
The SUNON PMD2408PMB1-A is a 24 VDC brushless axial fan from the PMD series, designed to provide forced-air cooling for compatible electronic equipment and industrial assemblies.
SUNON
SUNON PMD2408PMB1-A DC Axial Fan 24VDC 80x80x38mm 9.6W
$9.39
Available
PRODUCT GALLERY
01 / 3

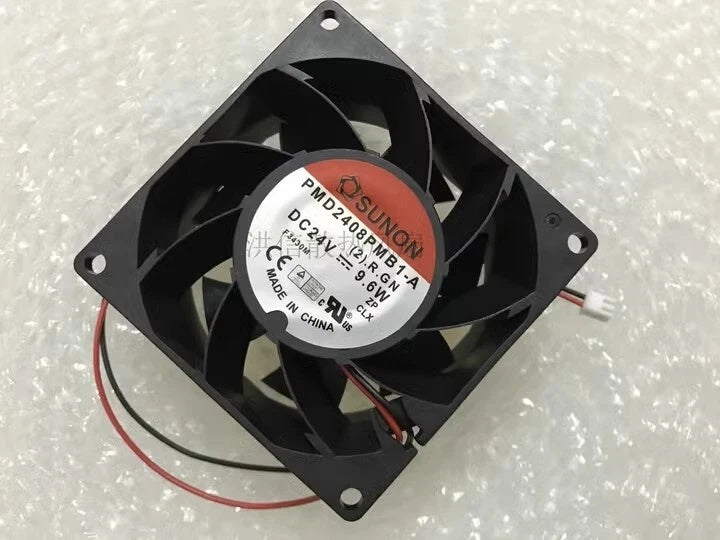

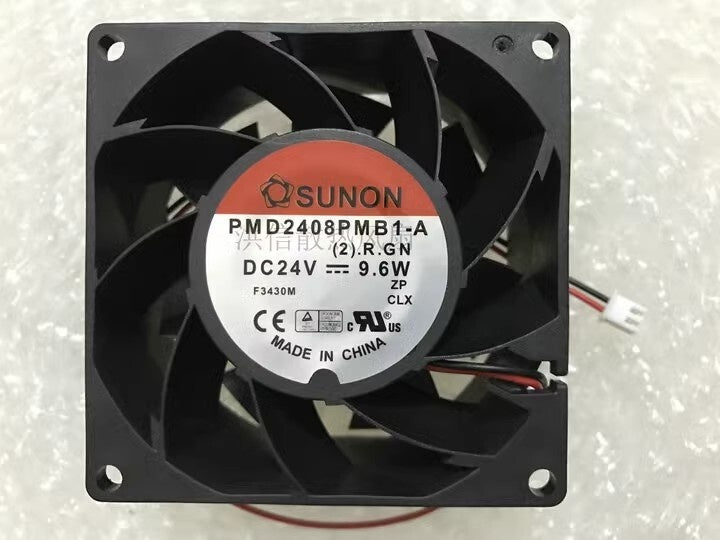

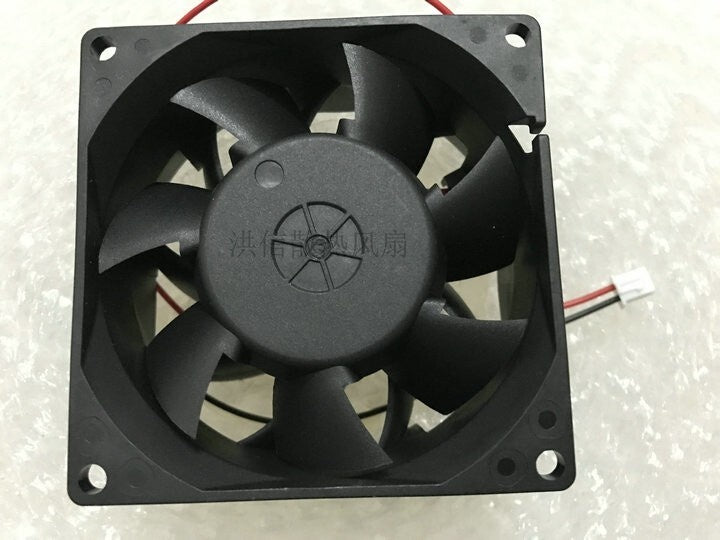

Product images for part identification
SUNON
SUNON PMD2408PMB1-A DC Axial Fan 24VDC 80x80x38mm 9.6W
PRODUCT PRICE
USD
$9.39
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | PMD2408PMB1-A |
| Product Category | DC Axial Fan |
| Product Series | PMD Series |
| Fan Type | DC Brushless Tubeaxial Cooling Fan |
| Manufacturer Catalog Configuration | PMD2408PMB1-A (2).GN |
| Additional Configuration | PMD2408PMB1-A.(2).F.GN |
| Additional Configuration | PMD2408PMB1-A.(2).R.GN |
| Dimensions | 80 x 80 x 38 mm |
| Rated Voltage | 24 VDC |
| Rated Current | 0.400 A |
| Rated Power Consumption | 9.6 W |
| Rated Speed | 5700 RPM |
| Air Delivery | 84.1 CFM |
| Air Delivery in Metric Units | Approximately 2.38 m³/min |
| Static Pressure | 0.74 inH2O (approximately 184.3 Pa) |
| Acoustical Noise | 55.2 dB(A) |
| Bearing System | Dual Ball Bearing |
| Frame Material | Polybutylene Terephthalate (PBT) |
| Weight | 175 g |
Key Features
80 x 80 x 38 mm Frame
The fan features a square 80 mm housing with a 38 mm depth. Its defined mounting geometry supports installation in equipment designed for this frame size and cooling arrangement.
84.1 CFM Air Delivery
SUNON specifies 84.1 CFM airflow and 0.74 inH2O static pressure for the PMD2408PMB1-A (2).GN configuration, supporting applications requiring relatively high airflow from a compact axial fan.
5700 RPM Rated Speed
The manufacturer catalog identifies a rated speed of 5700 RPM, 0.400 A rated current and 9.6 W power consumption. These values describe the documented PMB1 performance configuration.
Dual Ball Bearing Construction
The manufacturer specifies a dual ball bearing system, a PBT fan frame and a catalog weight of 175 g. The published noise rating is 55.2 dB(A) under documented test conditions.
Optional Monitoring Functions
SUNON identifies F-type variants with frequency generator speed feedback and R-type variants with locked rotor sensing. The standard two-wire version and three-wire monitoring versions should be selected according to the host equipment requirements.
Applications
- Industrial control cabinet ventilation
- Industrial inverter and frequency converter cooling
- Switching power supply thermal management
- Telecommunications equipment forced-air cooling
- Industrial automation equipment ventilation
- Electronic equipment enclosure heat dissipation
- Compact server and communication equipment cooling
- Replacement of compatible 80 mm 24 VDC high-airflow axial fans
Purchase Information
We support online purchase of the SUNON PMD2408PMB1-A fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON PMD2408PMB1-A?
PMD2408PMB1-A is a SUNON PMD-series DC brushless axial cooling fan with an 80 x 80 x 38 mm frame and a nominal 24 VDC power supply.
What is the rated voltage of PMD2408PMB1-A?
The SUNON manufacturer catalog specifies 24 VDC for the PMD2408PMB1-A (2).GN configuration.
What are the dimensions of PMD2408PMB1-A?
The manufacturer specifies 80 x 80 x 38 mm. The mechanical drawing shows a mounting-hole center spacing of 71.5 mm and a mounting-hole diameter of approximately 4.3 mm.
What is the rated current?
The published SUNON catalog rating is 0.400 A at 24 VDC for the PMD2408PMB1-A configuration.
What is the power consumption?
The manufacturer specifies a rated power consumption of 9.6 W.
What is the rated fan speed?
The manufacturer catalog specifies 5700 RPM for PMD2408PMB1-A (2).GN. Actual speed can vary with operating conditions and product tolerances.
What airflow does PMD2408PMB1-A provide?
SUNON specifies 84.1 CFM, approximately 2.38 m³/min, for this fan configuration under its catalog test conditions.
What is the static pressure rating?
The documented maximum static pressure is 0.74 inH2O, approximately 184.3 Pa.
What bearing system does the fan use?
The SUNON catalog and component distributor listings identify a dual ball bearing system.
What is the acoustical noise level?
The manufacturer specifies 55.2 dB(A) under its published test conditions. The final sound level in an enclosure depends on the installation and airflow restrictions.
What is the difference between the standard, F-type and R-type configurations?
The standard PMD2408PMB1-A (2).GN configuration is documented with two power leads. The F-type version provides a speed sensor signal, while the R-type version provides locked rotor sensing. These monitoring variants use three leads and must be matched to the receiving equipment.
What should be checked before ordering PMD2408PMB1-A?
Verify the complete SUNON part number and functional suffix, 24 VDC supply, 0.400 A rated current, 9.6 W power consumption, 80 x 80 x 38 mm dimensions, mounting-hole pattern, dual ball bearing construction, connector type, wire count, airflow direction and required cooling performance. PMD2408PMB2-A and PMD2408PMB3-A are different performance variants and should not automatically be substituted.
