24 VDC Cooling Configuration
The SUNON PMD2404PQB1-A family includes 24 VDC axial cooling fan configurations for compatible electronic and industrial equipment. Certain suffix variants have different voltage ratings.
SUNON

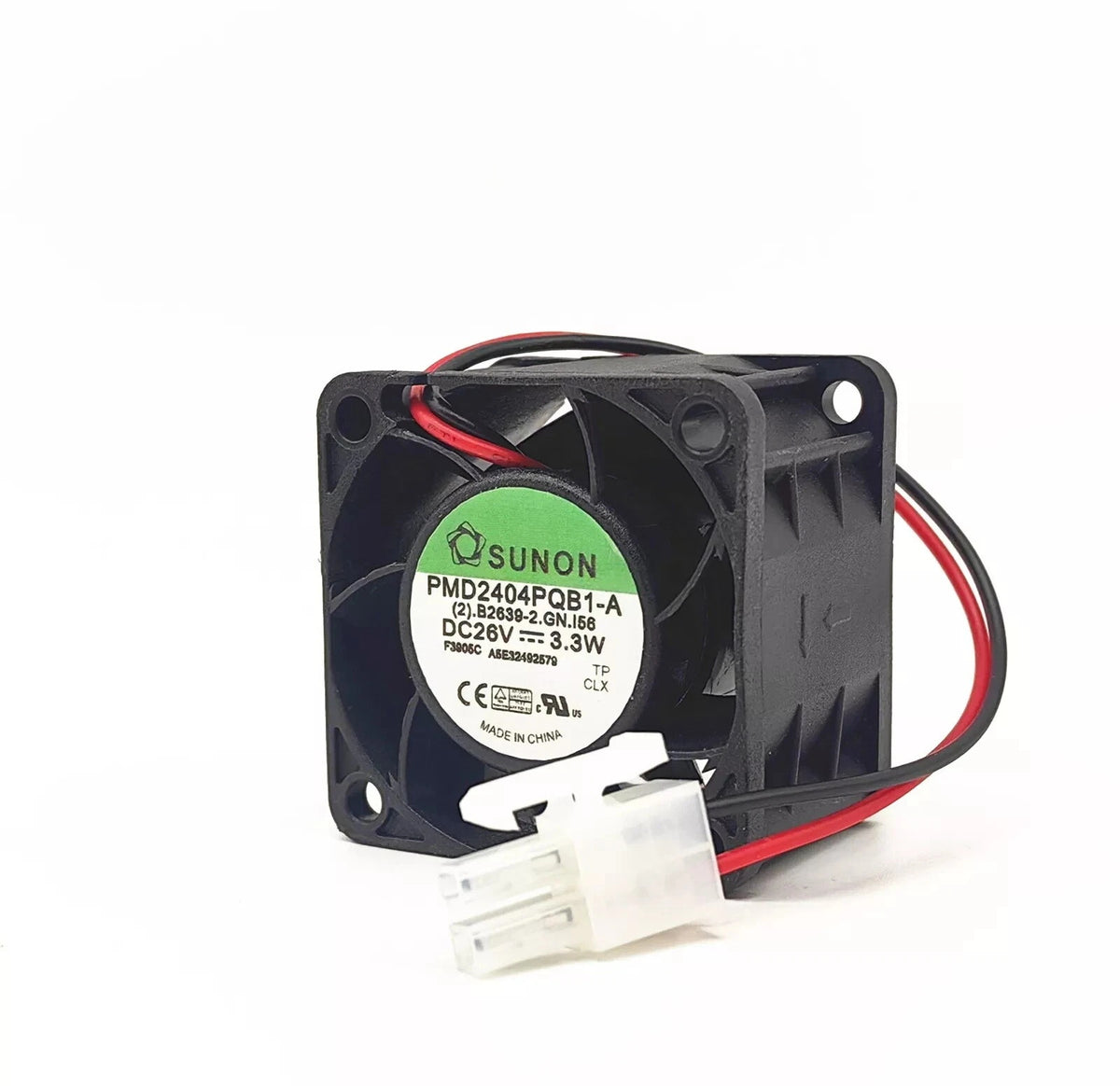

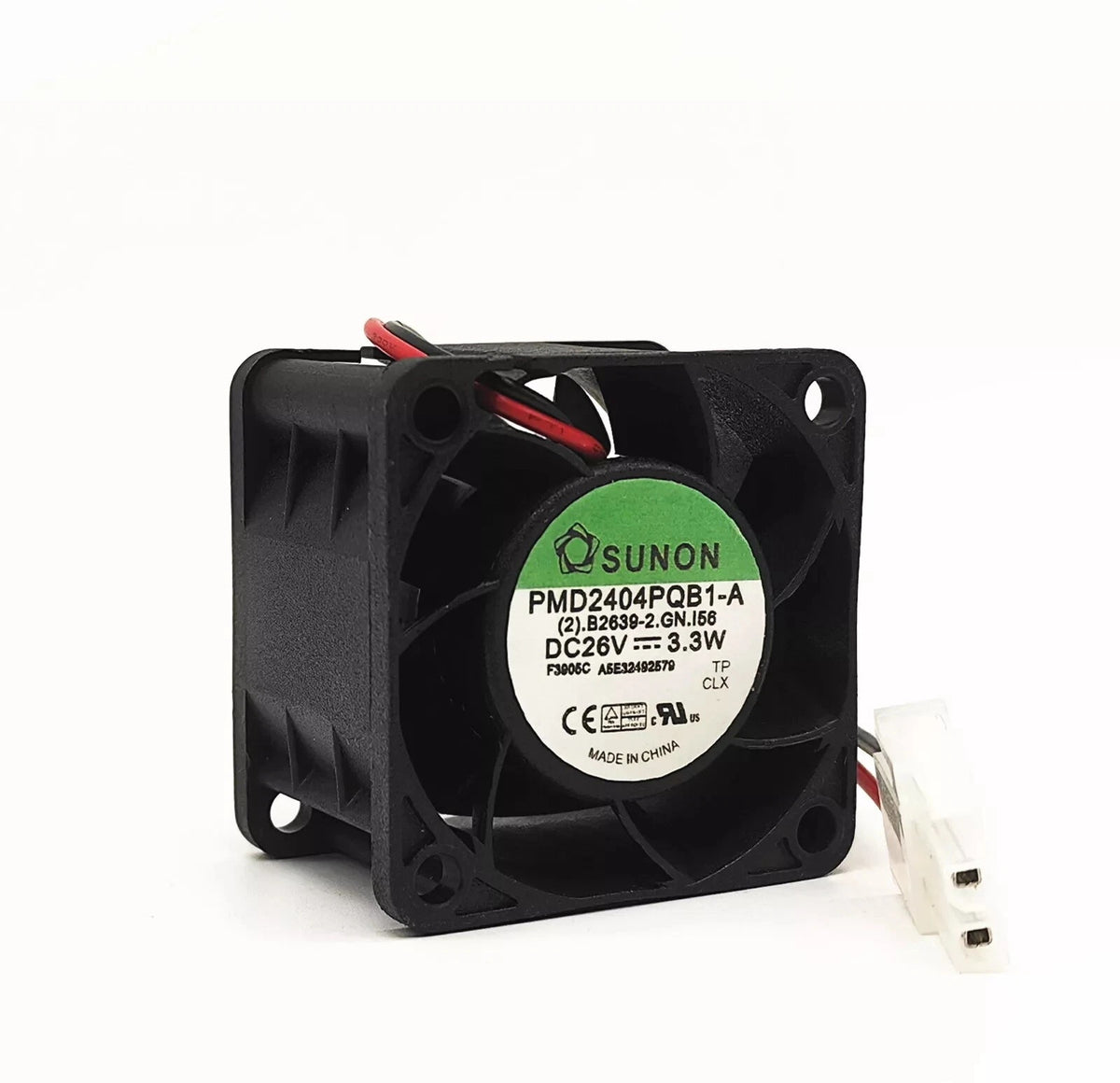

SUNON PMD2404PQB1-A DC Axial Fan 24VDC 40x40x28mm
$7.42
Available
PRODUCT GALLERY
01 / 10

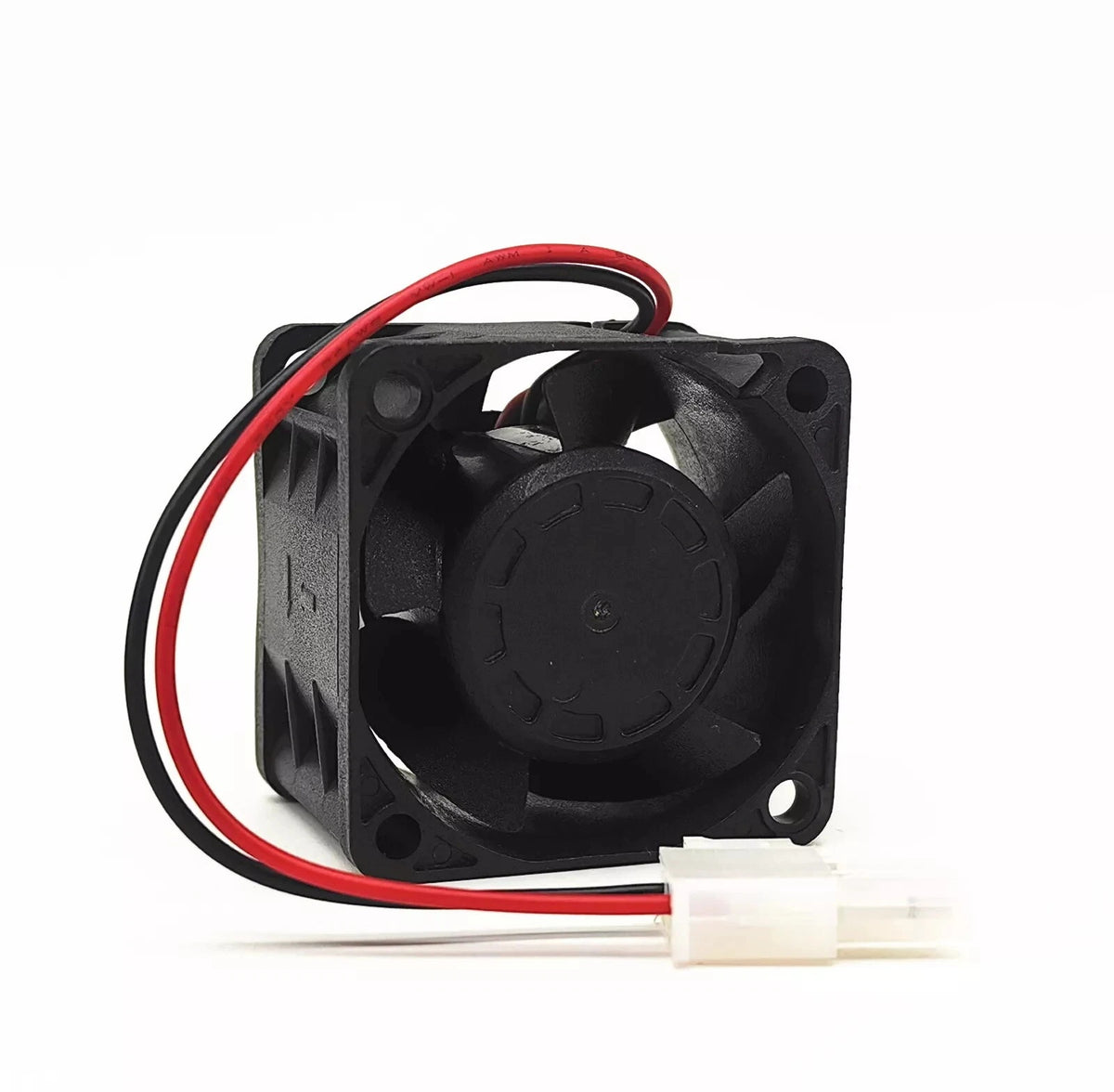

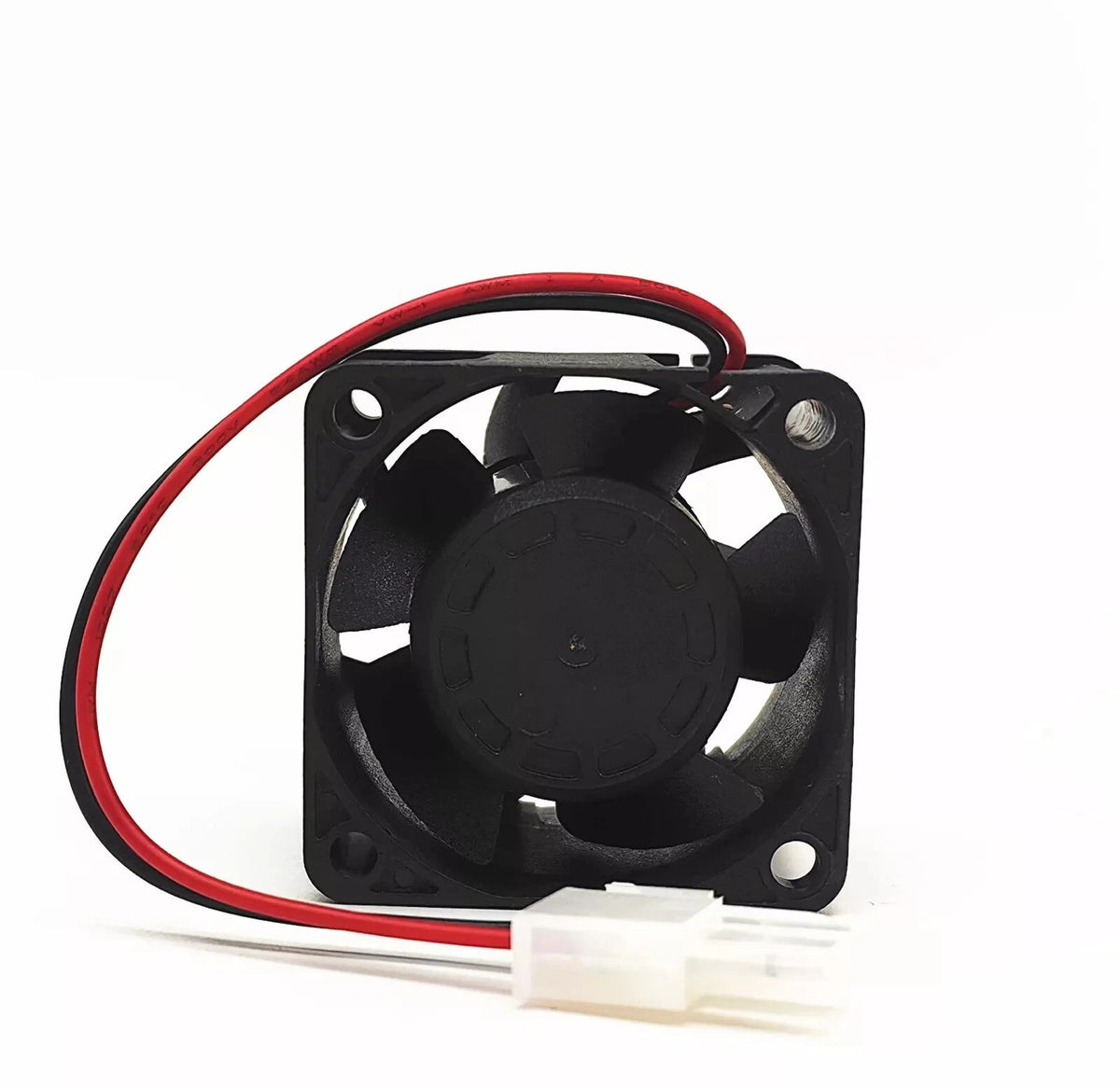

Product images for part identification
SUNON
SUNON PMD2404PQB1-A DC Axial Fan 24VDC 40x40x28mm
PRODUCT PRICE
USD
$7.42
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | PMD2404PQB1-A |
| Product Category | DC Axial Fan |
| Product Series | PMD |
| Fan Type | DC Brushless Axial Cooling Fan |
| Frame Dimensions | 40 x 40 x 28 mm |
| Commonly Listed Rated Voltage | 24 VDC |
| Other Documented Voltage Variant | 26 VDC; confirm complete model suffix |
| Documented Variant | PMD2404PQB1-A(2).B1483.F.GN |
| Power Consumption of B1483 Variant | 4.1 W |
| Airflow of B1483 Variant | 32.11 m3/h |
| Noise Level of B1483 Variant | 45 dB(A) |
| Bearing of B1483 Variant | Ball Bearing |
| Documented 26 VDC Variant | PMD2404PQB1-A(2).B5001.F.GN.I56 |
| Electrical Connection | Variant Dependent; two-wire and three-wire configurations are listed |
Key Features
40 x 40 x 28 mm Frame
The documented compact fan housing measures 40 x 40 x 28 mm, offering a defined form factor for equipment cooling and replacement assessments.
Brushless DC Design
The brushless axial fan construction generates directed airflow through small electronic assemblies and equipment ventilation paths.
Documented Cooling Performance
The PMD2404PQB1-A(2).B1483.F.GN variant is documented with 32.11 m3/h airflow and 4.1 W power consumption. These figures must not be assumed for every suffix version.
Ball Bearing Variant
The documented B1483 configuration uses a ball bearing. Confirm bearing construction for the exact version being replaced.
Multiple Connection Configurations
Commercial product records identify two-wire and three-wire versions. The complete suffix, connector and pin assignments must be matched to the equipment.
Applications
- Industrial inverter cooling assemblies
- Variable frequency drive electronics ventilation
- Industrial power supply cooling
- Compact electronic enclosure airflow management
- Servo drive cooling after compatibility verification
- Networking and communication equipment cooling
- Forced-air cooling of industrial electronic components
- Replacement of compatible 40 mm DC axial fans
Purchase Information
We support online purchase of the SUNON PMD2404PQB1-A fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON PMD2404PQB1-A?
PMD2404PQB1-A is a SUNON DC brushless axial cooling fan model family with multiple electrical and connection configurations.
What is the rated voltage of PMD2404PQB1-A?
Many documented versions operate at 24 VDC, while some complete suffix variants are rated at 26 VDC. Check the actual fan marking.
What are the dimensions of PMD2404PQB1-A?
The commonly documented dimensions are 40 x 40 x 28 mm.
What current does the fan require?
Current depends on the complete configuration. Commercial records describe different ratings, including 0.17 A and 0.18 A for specific versions. Confirm the complete suffix before selecting a power supply.
What is the power consumption?
The documented PMD2404PQB1-A(2).B1483.F.GN version consumes 4.1 W. Other variants have different power ratings.
What is the maximum airflow?
A component distributor specifies 32.11 m3/h for PMD2404PQB1-A(2).B1483.F.GN. Airflow must be verified separately for other versions.
What bearing type does PMD2404PQB1-A use?
The B1483 variant is documented with a ball bearing. Bearing configuration for another suffix should be checked against its specification.
What is the noise rating?
The PMD2404PQB1-A(2).B1483.F.GN version is listed at 45 dB(A). Other configurations may differ.
Does PMD2404PQB1-A have two or three wires?
Both two-wire and three-wire configurations appear in supplier documentation. Inspect the installed fan and verify the complete model suffix.
Can this fan be used in industrial inverter cooling?
Specific PMD2404PQB1-A versions are marketed for inverter and industrial electronics cooling. Suitability depends on voltage, mounting, airflow and connection requirements.
Are 24 VDC and 26 VDC versions interchangeable?
Interchangeability should not be assumed. Compare operating voltage range, current, speed, airflow, wiring and mounting for the exact versions.
What should be checked before purchasing PMD2404PQB1-A?
Verify the complete model and suffix, required supply voltage, current, 40 x 40 x 28 mm dimensions, mounting geometry, bearing configuration, connector pinout, airflow and operating conditions against the existing equipment.
