5 VDC Laptop Cooling
The SUNON MF60120V1-C360-G9A is a compact 5 VDC centrifugal cooling blower used in compatible Dell Latitude laptop thermal management assemblies.
SUNON
SUNON MF60120V1-C360-G9A DC Blower Fan 5VDC 1.15W 4-Pin
$10.10
Available
PRODUCT GALLERY
01 / 3

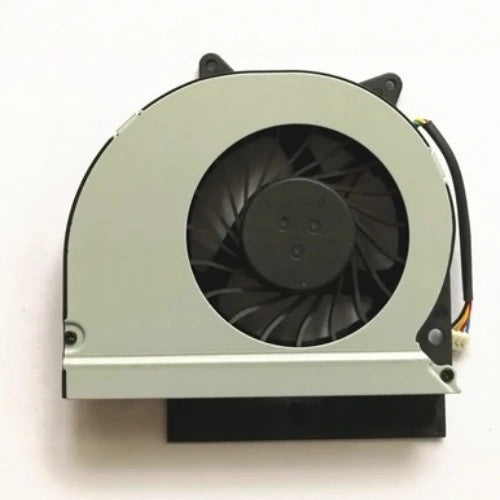

Product images for part identification
SUNON
SUNON MF60120V1-C360-G9A DC Blower Fan 5VDC 1.15W 4-Pin
PRODUCT PRICE
USD
$10.10
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | MF60120V1-C360-G9A |
| Product Category | DC Centrifugal Blower Fan |
| Product Series | MF MagLev Series |
| Fan Type | Laptop CPU Cooling Blower |
| Cooling Design | Side-Outlet Centrifugal Airflow |
| Rated Voltage | 5 VDC |
| Rated Power | 1.15 W |
| Listed Rated Current | 0.23 A |
| Electrical Connection | 4 Wires, 4-Pin Connector |
| Supplier-Listed Lead Length | 20 mm for Bare Fan Configuration |
| Bearing Technology | SUNON MagLev |
Key Features
1.15 W Power Rating
Multiple laptop replacement-part suppliers identify a 1.15 W rating, corresponding to a nominal 0.23 A current at 5 VDC.
Centrifugal Airflow Design
The blower directs air through a side outlet toward the laptop heatsink and ventilation path, helping transfer heat away from the processor cooling assembly.
Four-Wire Connection
The documented configuration uses four wires with a four-pin connector. Electrical signal functions and connector pin assignments must match the laptop motherboard.
SUNON MagLev Technology
Replacement-part documentation identifies SUNON MagLev motor technology for this cooling fan. Verify the complete model and revision when selecting a replacement.
Dell Latitude Compatibility
MF60120V1-C360-G9A is cross-referenced with Dell Latitude E6420 and E6430 integrated-graphics cooling assemblies, along with certain E6430 ATG configurations. Dedicated-graphics configurations may require a different model.
Applications
- Dell Latitude E6420 integrated-graphics CPU cooling
- Dell Latitude E6430 integrated-graphics CPU cooling
- Dell Latitude E6430 ATG cooling fan replacement
- Compatible Dell 00XDK0 cooling assemblies
- Laptop processor heatsink ventilation
- Notebook thermal management system maintenance
- Repair of compatible four-pin laptop cooling assemblies
- Replacement of matching 5 VDC centrifugal CPU blower fans
Purchase Information
We support online purchase of the SUNON MF60120V1-C360-G9A fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON MF60120V1-C360-G9A?
MF60120V1-C360-G9A is a SUNON 5 VDC centrifugal cooling blower used in compatible Dell Latitude laptop CPU cooling assemblies.
What is the rated voltage of MF60120V1-C360-G9A?
The documented rated supply voltage is 5 VDC.
What is the rated power consumption?
Multiple specialist laptop parts suppliers identify a 1.15 W power rating for this complete model.
What is the current rating?
The documented 5 VDC and 1.15 W ratings correspond to 0.23 A, which is also listed by a laptop replacement-parts supplier.
Is MF60120V1-C360-G9A an axial fan or a centrifugal blower?
It is a laptop cooling blower with a directed outlet, used to move air through the notebook processor heatsink and exhaust ventilation path.
What are the dimensions of MF60120V1-C360-G9A?
A verified mechanical drawing specifying the exact blower housing dimensions was not established. Confirm the outline, thickness, mounting tabs and outlet location against the existing component.
How many wires does MF60120V1-C360-G9A use?
The documented bare-fan and laptop assembly configurations use four wires with a four-pin connector.
Does MF60120V1-C360-G9A support fan speed control?
The laptop assembly uses a four-wire connection, but the exact control and feedback signal assignments should be checked against Dell service documentation before installation.
Which Dell laptops are associated with this fan?
Replacement-parts suppliers identify Dell Latitude E6420 and E6430 integrated-graphics variants and certain Latitude E6430 ATG cooling assemblies.
What Dell part number corresponds to this fan?
The fan is cross-referenced with Dell 00XDK0 and cooling assembly numbers such as AT0LD002ZCL and AT0LD002ZAL. Confirm the full assembly part number for the specific laptop.
Can MF60120V1-C360-G9A replace MF60120V1-C370-G9A?
Not automatically. Laptop replacement suppliers distinguish C360-G9A for integrated-graphics cooling assemblies from C370-G9A for certain dedicated-graphics configurations. Compare both assemblies before substitution.
What should be checked before ordering MF60120V1-C360-G9A?
Verify the complete SUNON model and revision, 5 VDC supply, 1.15 W rating, four-pin connector, wire length, blower housing dimensions, mounting points, exhaust orientation, Dell assembly part number and whether the laptop uses integrated or dedicated graphics. Also confirm whether a bare fan or a complete heatsink-and-fan assembly is required.
