Technical Specifications

Key Features

Applications

• Compatible ASUS VM60 and VM40B computing equipment cooling
• Compact computing device thermal management
• Embedded electronics cooling with limited installation depth
• Low-voltage blower cooling assemblies
• Equipment requiring a nominal 60 x 60 x 9 mm fan
• Compatible four-wire PWM fan replacement applications
• Compact heat sink and airflow channel ventilation
• Replacement of a matching SUNON MF60090V1-C482-S9A fan

Purchase Information

We support online purchase inquiries for the SUNON MF60090V1-C482-S9A blower cooling fan. For bulk purchases or related industrial and electronic cooling components, please contact our team with your requirements. Before ordering, confirm the full model number, 5 VDC supply, required power rating, nominal 60 x 60 x 9 mm dimensions, four-wire four-pin connector and PWM compatibility. Commercial listings differ on whether the fan is rated at 2.00 W or 2.25 W, so verify the specific product label or matching datasheet when the electrical rating is critical. For replacement applications, compare the original connector, cable length, mounting geometry and airflow orientation.

Frequently Asked Questions

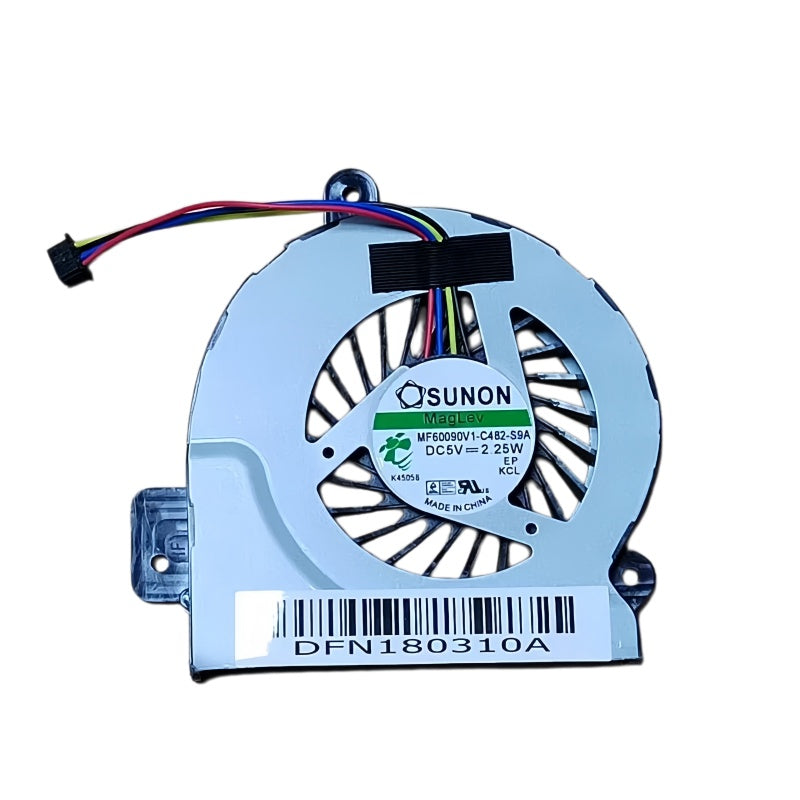

What is SUNON MF60090V1-C482-S9A?
It is a SUNON-branded DC blower fan commercially listed for compact computing equipment. Exact-model product listings identify a 5 VDC supply, a nominal 60 x 60 x 9 mm profile and a four-wire, four-pin connector.

What is the rated voltage?
Commercial sources list a nominal voltage of 5 VDC. One supplier specifies an operating range of 4.5-5.5 VDC. Confirm these values against the actual fan documentation before connecting the fan.

Is the power consumption 2.00 W or 2.25 W?
The available commercial listings conflict. EquipSpares lists 2.00 W and 0.40 A, while ELECOK lists 2.25 W. At 5 VDC, 0.40 A corresponds to 2.00 W. The correct rating for a particular unit should be established from its label or matching manufacturer specification.

What are the dimensions of the fan?
One exact-model supplier lists nominal dimensions of 60 x 60 x 9 mm. Confirm the housing dimensions, cable clearance and mounting arrangement against the existing fan before ordering.

What is the rated speed?
One commercial listing reports 4500 RPM. This value was not independently confirmed in a matching SUNON manufacturer datasheet, so it should be treated as a supplier-published specification until verified.

What airflow and static pressure does it provide?
One supplier lists a maximum airflow of 4.8 CFM and a maximum static pressure of 13.21 mmH₂O. These figures have not been independently confirmed for the complete C482-S9A configuration. Installed performance depends on system resistance and airflow path.

What is the noise level?
One commercial listing specifies 32.5 dB(A). The exact manufacturer test conditions were not independently verified, so actual noise can vary with the equipment enclosure, mounting, voltage and airflow restrictions.

Does this fan support PWM control?
One supplier describes a four-wire PWM interface with tachometer feedback. Exact PWM frequency, signal voltage, duty-cycle range and pin assignment were not independently confirmed. Verify the required control interface before connecting the fan to a host system.

What type of bearing does it use?
One commercial supplier lists a Vapo bearing. The exact bearing specification was not independently confirmed in a matching manufacturer datasheet. Verify the bearing construction if it is a critical replacement requirement.

Which devices can use this fan?
One supplier identifies ASUS VM60 and VM40B replacement applications. Compatibility depends on the installed cooling assembly, connector, housing and electrical requirements. Confirm the complete original part number before purchasing.

What does the alternative model name MF60090VL-C482-S9A mean?
One seller lists MF60090VL-C482-S9A as an alternative designation for MF60090V1-C482-S9A. Confirm the label and physical configuration before assuming the two designations identify an identical component in every sourcing context.

What should be checked before ordering?
Verify the full model number, nominal 5 VDC supply, power consumption, 60 x 60 x 9 mm dimensions, four-wire four-pin connector, cable length, PWM and tachometer requirements, airflow direction and mounting arrangement. Because commercial sources disagree on power consumption and a matching manufacturer datasheet was not independently located, confirm the exact specifications of the supplied unit before use in a critical application.
