Technical Specifications

Key Features

Applications

• DeWALT DCB118 Type 1 battery charger cooling assemblies
• Compatible power tool battery charger thermal management
• Compact electronic power conversion equipment ventilation
• Small projector cooling assemblies with matching fan specifications
• Electronic equipment requiring directed centrifugal airflow
• Low-voltage cooling systems using 12 VDC blower fans
• Equipment requiring compatible three-wire FG fan monitoring
• Replacement of matching SUNON MF50151VX-B02U-G99 cooling blowers

Purchase Information

We support online purchase of the SUNON MF50151VX-B02U-G99 fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is SUNON MF50151VX-B02U-G99?

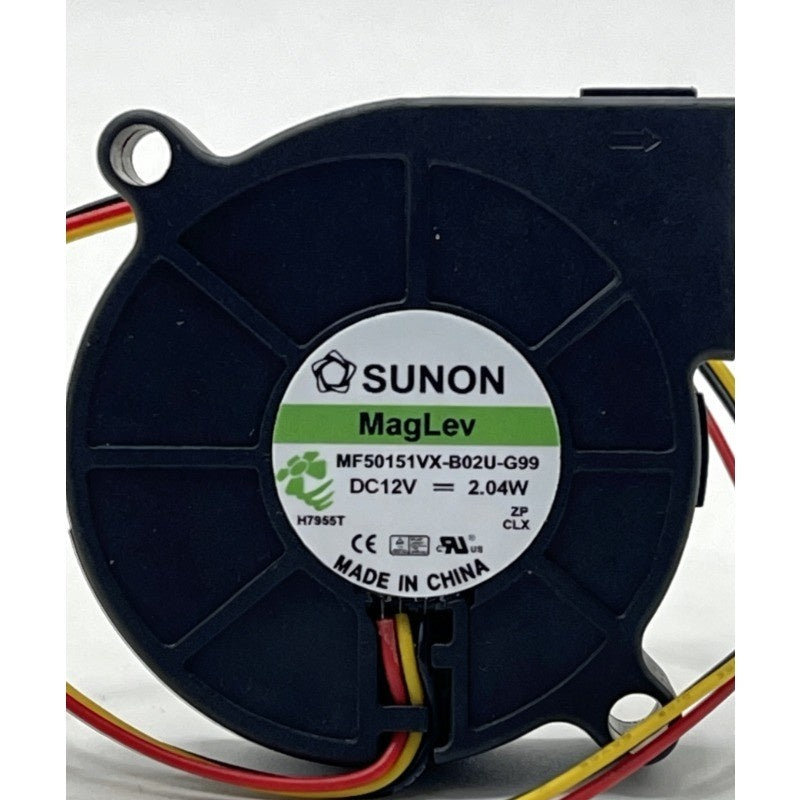

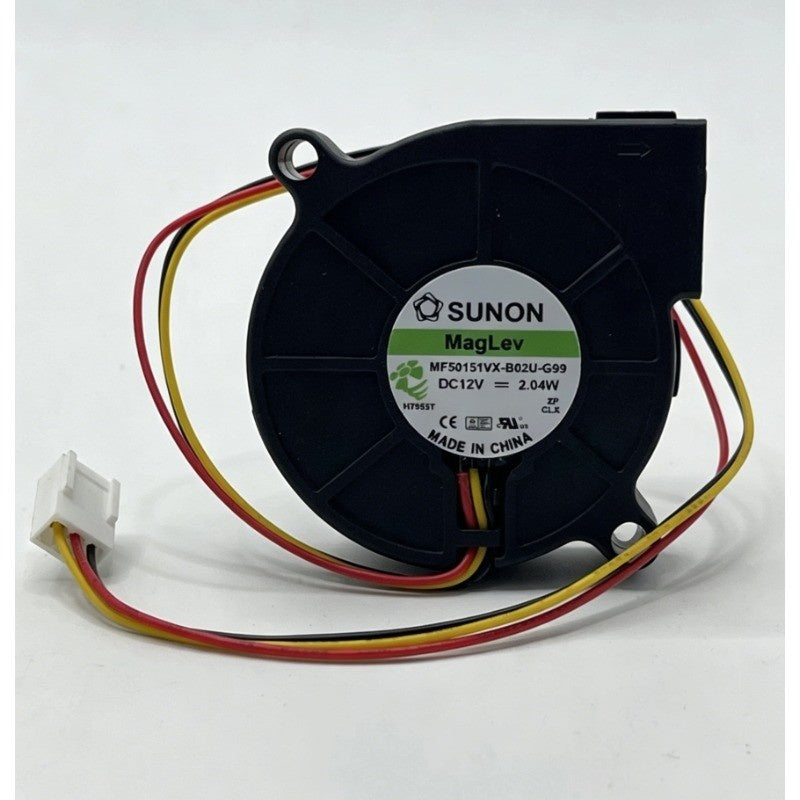

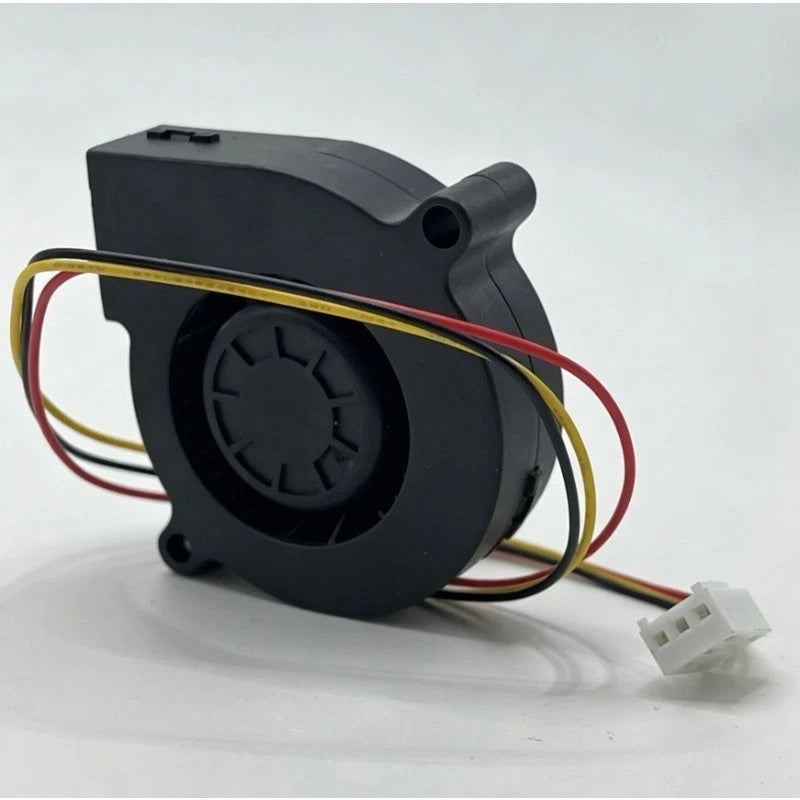

MF50151VX-B02U-G99 is a SUNON MagLev-series DC centrifugal cooling blower. Commercial references describe a nominal 50 x 50 x 15 mm housing and a three-wire configuration, while an equipment safety report documents its 12 VDC, 2.04 W rating.

What is the rated voltage of MF50151VX-B02U-G99?
The complete model is listed at 12 VDC in DEKRA test report 3409237.50A and in several exact-model replacement listings. Its exact operating voltage range was not independently established.

What are the dimensions of MF50151VX-B02U-G99?
Exact-model suppliers identify 50 x 50 x 15 mm nominal dimensions. Because the centrifugal housing includes an outlet and mounting tabs, compare the installed blower's overall dimensions, mounting-hole positions and exhaust opening rather than relying on nominal size alone.

What is the rated current?
A supplier lists 0.17 A, or 170 mA. This is consistent with the independently documented 12 VDC and 2.04 W electrical ratings. A separate current rating in a complete SUNON B02U-G99 datasheet was not located.

What is the power consumption?
The documented value is 2.04 W. It appears in a DEKRA IEC 60335-2-29 equipment test report identifying the complete MF50151VX-B02U-G99 model, as well as in commercial replacement-part listings.

What is the rated fan speed?
One exact-model supplier specifies 6300 RPM. This is a supplier-reported speed, not a separately verified exact-model SUNON performance specification. The manufacturer catalog lists 6200 RPM for MF50151VX-1B00U-A99, which is a different configuration.

What airflow does MF50151VX-B02U-G99 provide?
The DEKRA safety test report lists 5.4 CFM, approximately 9.18 m³/h, for the complete model. Some sellers publish conflicting airflow figures. The 18.6 CFM figure sometimes associated with MF50151VX applies to a different axial fan configuration and should not be assigned to this centrifugal blower.

What is the maximum static pressure?
An exact-model static pressure rating was not independently verified. SUNON lists 0.97 inH2O for the related MF50151VX-1B00U-A99 blower, but that specification should not automatically be applied to B02U-G99.

What bearing system does MF50151VX-B02U-G99 use?
The V designation indicates SUNON's Vapo bearing system under the manufacturer blower model numbering scheme. The exact customer-specific bearing construction has not been separately confirmed in an individual B02U-G99 datasheet.

What is the acoustical noise level?
One exact-model supplier lists 33 dB(A), but an individual SUNON acoustic specification for B02U-G99 was not found. Related blower configurations may have different sound ratings, so the seller figure should be treated as provisional.

Does MF50151VX-B02U-G99 support speed feedback?
Yes. The manufacturer defines G99 as automatic restart with an F-type frequency generator output, and exact-model replacement suppliers describe a three-wire configuration with a yellow FG lead. The standard G99 code does not specify a dedicated PWM speed-control input. Confirm connector pin assignments, FG voltage levels and signal requirements before installation.

What should be checked before ordering MF50151VX-B02U-G99?
Confirm the complete SUNON MF50151VX-B02U-G99 part number, 12 VDC supply, 2.04 W rating, 0.17 A supplier-listed current, nominal 50 x 50 x 15 mm housing, mounting-tab positions, radial air outlet, three-wire connection, connector configuration and FG signal requirements. For a DeWALT DCB118 charger, check the charger type, production revision and existing fan assembly against the equipment service documentation. The related MF50151VX-1B00U-A99 centrifugal blower and MF50151VX-10000-G99 axial fan differ in electrical or airflow characteristics and should not automatically be substituted.
