12 VDC Compact Cooling
The SUNON MF50101V1-Q030-S99 is a 12 VDC axial cooling fan for compatible computing and electronic equipment requiring a compact forced-air cooling solution.
SUNON

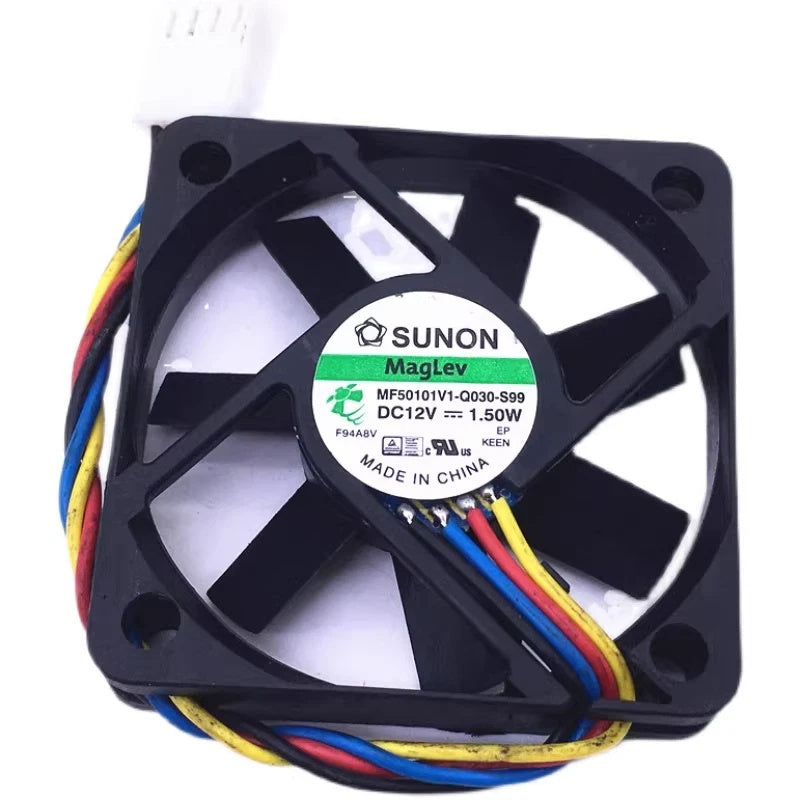

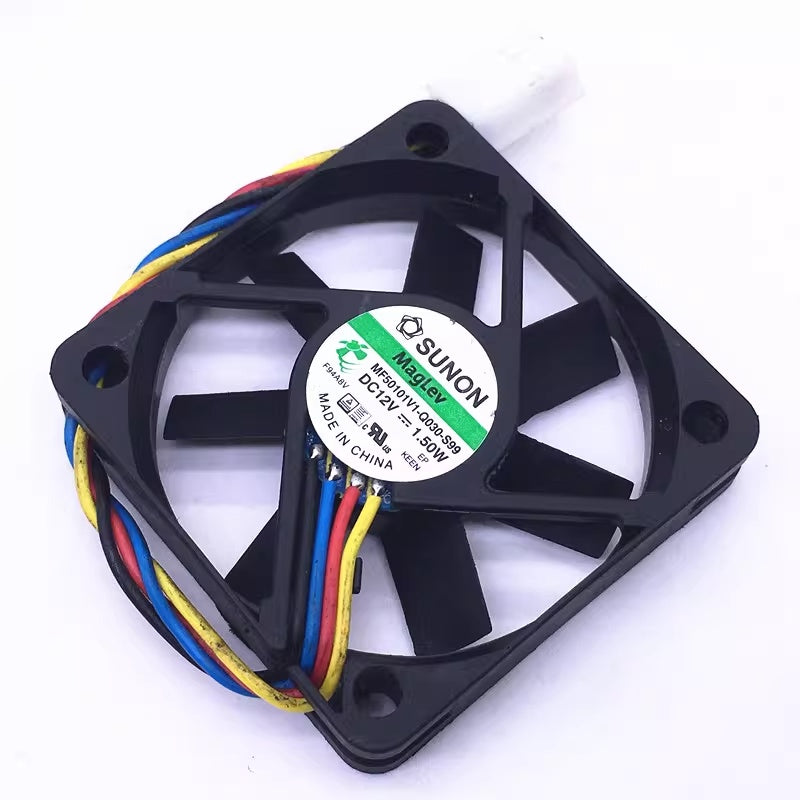

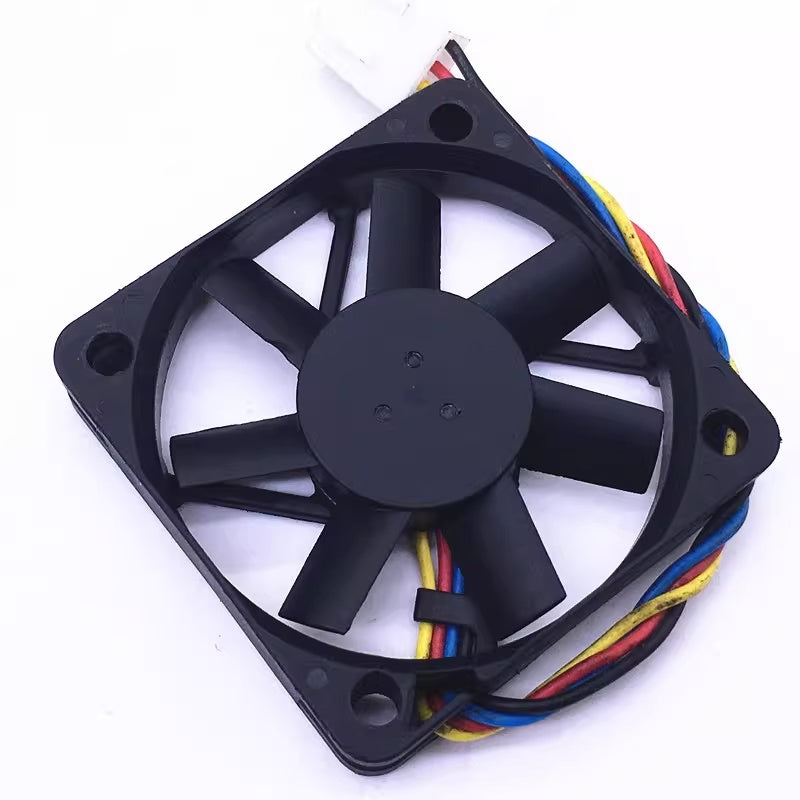

SUNON MF50101V1-Q030-S99 DC Axial Fan 12VDC 50x50x10mm 1.50W
$6.96
Available
PRODUCT GALLERY
01 / 3
Product images for part identification
SUNON
SUNON MF50101V1-Q030-S99 DC Axial Fan 12VDC 50x50x10mm 1.50W
PRODUCT PRICE
USD
$6.96
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | MF50101V1-Q030-S99 |
| Product Category | DC Axial Fan |
| Product Series | MF MagLev Series |
| Fan Type | DC Brushless Axial Cooling Fan |
| Frame Dimensions | 50 x 50 x 10 mm |
| Rated Voltage | 12 VDC |
| Listed Rated Current | 0.125 A |
| Rated Power | 1.50 W |
| Listed Fan Speed | 5800-6000 RPM; supplier specifications differ |
| Listed Airflow | 13.8 CFM |
| Listed Static Pressure | 0.15 inH2O |
| Listed Noise Level | 30.7 dB(A) |
| Bearing System | SUNON MagLev Vapo Bearing |
| Electrical Connection | 4-Wire, 4-Pin Connector |
| Speed Control | PWM Control on Listed 4-Wire Configuration |
| Speed Feedback | Tachometer Signal on Listed 4-Wire Configuration |
| Listed Operating Temperature | -10°C to +70°C |
| Related Equipment Part Number | Dell 0TR24P (supplier cross-reference) |
| Connector Compatibility | Verify Pinout and Connector Housing Before Installation |
Key Features
50 x 50 x 10 mm Frame
The slim 50 mm square frame and 10 mm thickness provide a defined mechanical format for space-constrained cooling assemblies.
1.50 W Rated Power
The model is identified with a 1.50 W power rating. Supplier specifications also list a rated current of 0.125 A at 12 VDC.
MagLev Vapo Bearing
The fan is identified with SUNON MagLev technology and a Vapo bearing system for the axial impeller assembly.
Four-Wire PWM Control
The documented four-wire configuration includes PWM speed control and a tachometer feedback connection. The exact connector pinout must match the host equipment.
Documented Cooling Performance
Supplier specifications identify approximately 13.8 CFM airflow and 0.15 inH2O static pressure, with fan speed listings between 5800 and 6000 RPM. Verify exact performance values for engineering applications.
Applications
- Compact server cooling assemblies
- Computer processor cooling after compatibility verification
- Embedded computing equipment ventilation
- Network switch and router cooling
- Compact electronic enclosure airflow management
- Industrial computing system thermal management
- Small equipment fan maintenance
- Replacement of compatible 50 mm four-wire DC axial fans
Purchase Information
We support online purchase of the SUNON MF50101V1-Q030-S99 fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON MF50101V1-Q030-S99?
MF50101V1-Q030-S99 is a SUNON DC brushless axial cooling fan identified with MagLev technology and a compact 50 mm frame.
What is the rated voltage?
Product documentation and fan markings identify a 12 VDC rated supply.
What are the dimensions of MF50101V1-Q030-S99?
The fan measures 50 x 50 x 10 mm.
What current rating is listed?
Supplier specifications list 0.125 A for the 12 VDC configuration. Verify the marking on the supplied fan before selecting the power supply.
What is the rated power consumption?
Multiple product records and photographed fan labels identify a 1.50 W power rating.
What is the fan speed?
Supplier specifications differ, listing approximately 5800 RPM or 6000 RPM. Confirm the operating speed using documentation for the exact supplied fan.
What is the airflow rating?
Multiple supplier specifications list approximately 13.8 CFM for MF50101V1-Q030-S99.
What is the static pressure rating?
One published supplier specification identifies 0.15 inH2O, while other listings give slightly different figures. Confirm exact performance data before using it for cooling calculations.
What bearing system does the fan use?
The model is identified with SUNON MagLev technology and a Vapo bearing system.
Does MF50101V1-Q030-S99 support PWM speed control?
The commonly documented four-wire configuration includes PWM speed control and tachometer feedback. Verify the actual connector and signal assignments before installation.
Is MF50101V1-Q030-S99 associated with a Dell part number?
Some computer fan suppliers cross-reference MF50101V1-Q030-S99 with Dell part number 0TR24P. This cross-reference does not establish compatibility with every Dell system.
What should be checked before ordering MF50101V1-Q030-S99?
Verify the complete model number, 12 VDC rating, 1.50 W power, 50 x 50 x 10 mm housing, mounting-hole arrangement, four-wire connector, pinout, PWM compatibility and cooling requirements against the installed equipment.
