24 VDC Brushless Cooling
The SUNON MF40102VX-Q00U-A9D is a 24 VDC brushless axial cooling fan for compatible industrial inverters, electronic assemblies and equipment requiring localized forced-air cooling.
SUNON
SUNON MF40102VX-Q00U-A9D DC Axial Fan 24VDC 40x40x10mm 1.44W
$8.63
Available
PRODUCT GALLERY
01 / 2

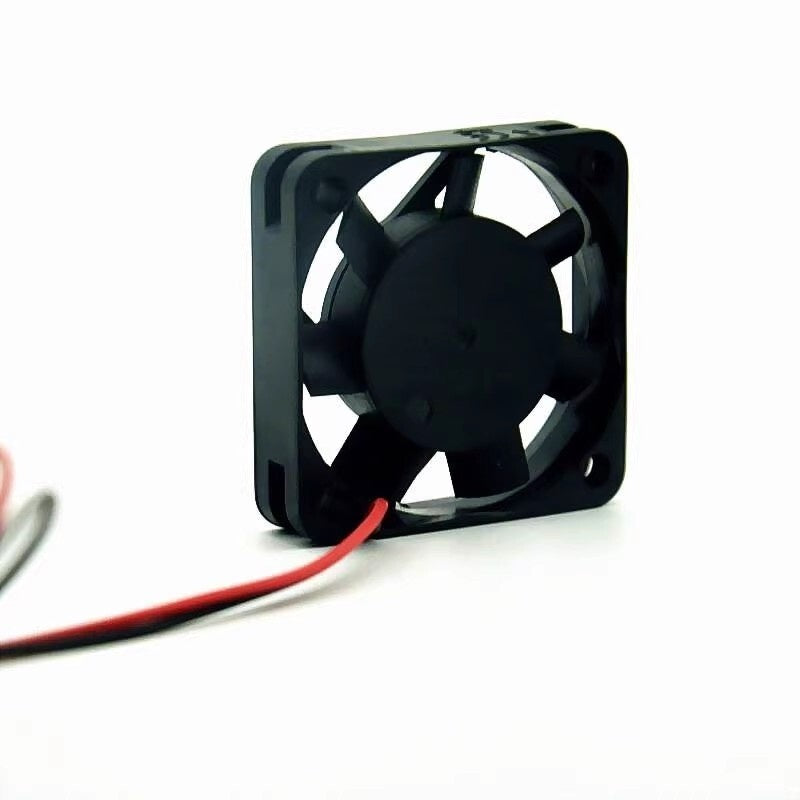

Product images for part identification
SUNON
SUNON MF40102VX-Q00U-A9D DC Axial Fan 24VDC 40x40x10mm 1.44W
PRODUCT PRICE
USD
$8.63
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | MF40102VX-Q00U-A9D |
| Product Category | DC Axial Fan |
| Product Series | MF MagLev Series |
| Fan Type | DC Brushless Axial Cooling Fan |
| Motor Technology | SUNON MagLev |
| Dimensions | 40 x 40 x 10 mm |
| Frame Size | 40 mm Square |
| Frame Thickness | 10 mm |
| Rated Voltage | 24 VDC |
| Rated Power | 1.44 W |
| Listed Rated Current | 0.06 A |
| Supplier-Listed Fan Speed | 8000 RPM (Radwell Specification) |
| Alternative Supplier Speed Listing | 5500 RPM; published supplier specifications differ |
| Bearing System | SUNON Vapo Bearing |
| Electrical Connection | 2 Wire Leads |
| Connector Configuration | Blue 2-Pin Connector Listed for Certain Replacement Assemblies |
| Motor Type | Brushless DC Motor |
| Cooling Method | Forced-Air Cooling |
Key Features
40 x 40 x 10 mm Compact Frame
The fan features a 40 mm square frame with a 10 mm thickness, providing a slim cooling format for equipment with restricted installation space.
1.44 W Power Rating
Multiple industrial component suppliers identify a 1.44 W power rating at 24 VDC, corresponding to a listed rated current of 0.06 A.
MagLev Vapo Bearing
Industrial replacement-part documentation identifies SUNON MagLev motor technology and a Vapo bearing system for the MF40102VX-Q00U-A9D cooling fan.
Two-Wire Power Connection
The documented fan uses two power leads, and certain replacement assemblies are supplied with a blue two-pin connector. Electrical polarity and connector compatibility must be confirmed before installation.
Industrial Drive Cooling
The MF40102VX-Q00U-A9D is marketed for cooling compatible industrial frequency converters and drive electronics. Supplier speed specifications differ, so the exact airflow and RPM requirements should be verified for critical applications.
Applications
- Industrial variable frequency drive cooling
- Compatible Siemens drive cooling assemblies
- Industrial inverter thermal management
- Compact electrical control module ventilation
- Industrial power electronics cooling
- Communication equipment forced-air cooling
- Electronic enclosure heat dissipation
- Replacement of compatible 40 mm 24 VDC axial fans
Purchase Information
We support online purchase of the SUNON MF40102VX-Q00U-A9D fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON MF40102VX-Q00U-A9D?
MF40102VX-Q00U-A9D is a SUNON DC brushless axial cooling fan from the MagLev range, commonly listed for industrial inverter and electronic equipment cooling.
What is the rated voltage of MF40102VX-Q00U-A9D?
The documented rated supply voltage is 24 VDC.
What are the dimensions of MF40102VX-Q00U-A9D?
The external dimensions are 40 x 40 x 10 mm, with a square 40 mm frame and 10 mm thickness.
What is the power consumption?
Industrial replacement-part specifications identify a rated power consumption of 1.44 W.
What is the rated current?
A published supplier specification lists 0.06 A at 24 VDC, consistent with the 1.44 W power rating.
What is the fan speed?
Radwell lists 8000 RPM for MF40102VX-Q00U-A9D, while another commercial listing specifies 5500 RPM. The speed has not been independently confirmed by a manufacturer datasheet for this exact configuration.
What bearing system does the fan use?
Industrial component documentation identifies a SUNON Vapo bearing system from the MagLev product range.
How many wires does MF40102VX-Q00U-A9D have?
The documented configuration uses two power wires. Connector housings may differ between replacement assemblies.
Does MF40102VX-Q00U-A9D support PWM speed control?
PWM control and tachometer feedback have not been established for the documented two-wire version. Do not assume that a two-wire connection supports these functions.
Can MF40102VX-Q00U-A9D be used for Siemens inverter cooling?
Commercial replacement-fan listings identify applications involving Siemens drive cooling. Compatibility must be verified using the complete drive model, connector, mounting dimensions and cooling requirements.
What are the airflow and static pressure ratings?
Reliable manufacturer airflow and static pressure specifications for the exact MF40102VX-Q00U-A9D configuration were not established. These parameters should be verified before engineering substitutions.
What should be checked before ordering MF40102VX-Q00U-A9D?
Confirm the complete SUNON model number, 24 VDC supply, 1.44 W rating, 0.06 A current, 40 x 40 x 10 mm frame, mounting-hole arrangement, connector type, two-wire polarity, airflow direction and compatibility with the installed inverter or electronic equipment. Similar MF40102 series fans may have different electrical and performance specifications.
