5 VDC Brushless Cooling
The SUNON MC25100V1-000U-A99 is a miniature DC brushless axial fan rated for 5 VDC operation, designed to provide localized forced-air cooling in compatible small electronic devices and equipment.
SUNON
SUNON MC25100V1-000U-A99 DC Axial Fan 5VDC 25x25x10mm 0.6W
$9.54
Available
PRODUCT GALLERY
01 / 3

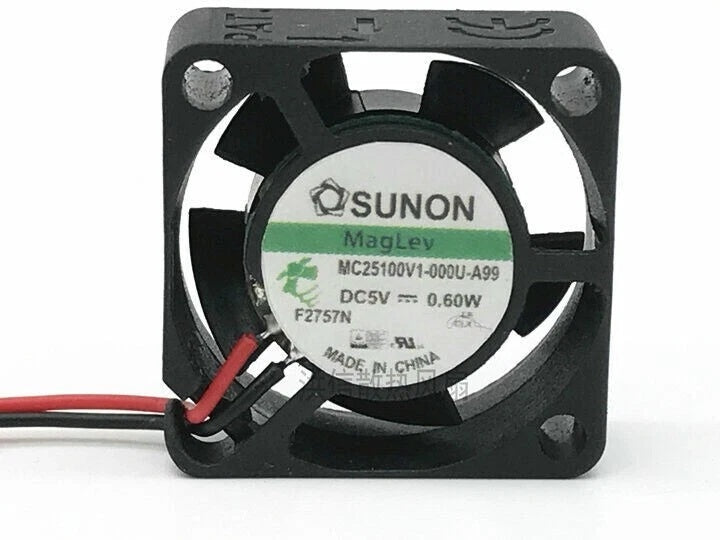

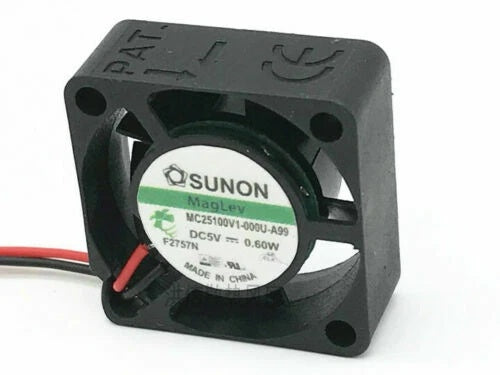

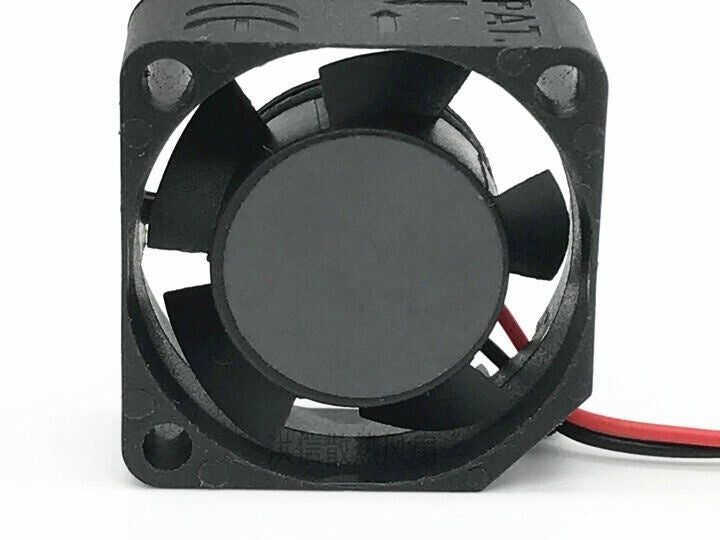

Product images for part identification
SUNON
SUNON MC25100V1-000U-A99 DC Axial Fan 5VDC 25x25x10mm 0.6W
PRODUCT PRICE
USD
$9.54
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | MC25100V1-000U-A99 |
| Product Category | DC Axial Fan |
| Product Series | MagLev MC Series |
| Dimensions | 25 x 25 x 10 mm |
| Frame Width and Height | 25 ±0.5 mm |
| Frame Thickness | 10 mm Nominal |
| Rated Voltage | 5 VDC |
| Operating Voltage Range | 2.5-6 VDC |
| Rated Current | 120 mA (0.120 A) |
| Rated Power Consumption | 0.60 W |
| Weight | Approximately 7.5 g |
Key Features
Miniature 25 x 25 x 10 mm Frame
The fan features a 25 mm square housing with a 10 mm thickness, allowing installation in compact electronics with limited cooling space and compatible mounting geometry.
13000 RPM Rated Speed
SUNON specifies 13000 RPM rated speed, 120 mA current and 0.60 W power consumption for MC25100V1-000U-A99, providing documented electrical and mechanical performance values.
3.5 CFM Air Delivery
The manufacturer specifies 3.5 CFM airflow and a maximum static pressure of 0.25 inH2O. These values provide useful references when evaluating miniature forced-air cooling requirements.
MagLev Vapo Bearing Technology
The MC-series fan uses SUNON MagLev technology with a Vapo bearing system and PBT thermoplastic frame and blades. Its manufacturer catalog identifies a noise rating of 23 dB(A).
Automatic Restart and Two-Wire Design
The documented fan features automatic restart protection and two DC power leads. Its mechanical drawing specifies 28 AWG wiring and a nominal lead length of 150 mm with a ±30 mm tolerance.
Applications
- Compact embedded electronics cooling
- Miniature computing equipment ventilation
- Small network communication devices
- Electronic instrumentation thermal management
- Compact circuit board forced-air cooling
- Miniature power electronics ventilation
- Small electronic enclosure heat dissipation
- Replacement of compatible 25 mm 5 VDC axial cooling fans
Purchase Information
We support online purchase of the SUNON MC25100V1-000U-A99 fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON MC25100V1-000U-A99?
MC25100V1-000U-A99 is a SUNON MagLev MC-series DC brushless axial cooling fan with a 25 x 25 x 10 mm housing and a rated supply voltage of 5 VDC.
What is the rated voltage of MC25100V1-000U-A99?
The manufacturer specifies 5 VDC, with an operating voltage range of 2.5-6 VDC.
What are the dimensions of MC25100V1-000U-A99?
The external dimensions are 25 x 25 x 10 mm. The manufacturer drawing identifies three 2.8 mm mounting holes, so its mounting arrangement should be checked against the existing installation.
What is the rated current?
SUNON specifies a rated current of 120 mA, equivalent to 0.120 A, at 5 VDC.
What is the power consumption?
The manufacturer catalog and major electronic component distributor listings specify 0.60 W, equivalent to 600 mW.
What is the rated fan speed?
The published rated speed is 13000 RPM for MC25100V1-000U-A99.
What airflow does MC25100V1-000U-A99 provide?
The SUNON catalog specifies 3.5 CFM, approximately 0.098 m³/min, under its published test conditions.
What is the static pressure rating?
The manufacturer specifies a maximum static pressure of 0.25 inH2O, approximately 62.3 Pa.
What bearing system does MC25100V1-000U-A99 use?
The manufacturer identifies SUNON Vapo bearing technology within the MagLev MC series.
What is the acoustical noise level?
The documented noise rating is 23 dB(A). Installed noise can vary according to enclosure design, airflow restrictions and mounting conditions.
How is MC25100V1-000U-A99 electrically connected?
The standard configuration uses two wire leads. The manufacturer catalog drawing specifies 28 AWG wiring with a lead length of 150 ±30 mm. Confirm polarity and any connector termination before installation.
What should be checked before ordering MC25100V1-000U-A99?
Confirm the complete SUNON model number, 5 VDC supply, 0.120 A rated current, 0.60 W power consumption, 25 x 25 x 10 mm dimensions, three-hole mounting pattern, Vapo bearing, two-wire power connection, connector termination and 3.5 CFM airflow requirement. MC25100V2-000U-A99 has different speed and airflow ratings, while MC25101V1-000U-A99 is a 12 VDC model. DigiKey lists MC25100V1-000U-A99 as obsolete and identifies MF25100V1-1000U-A99 as a substitute; verify electrical and mechanical compatibility before substitution.
