24 VDC Brushless Cooling
The SUNON MB40202VX-0000-F99 is listed as a 24 VDC brushless axial cooling fan for forced-air ventilation in compatible industrial electronic equipment.
SUNON
SUNON MB40202VX-0000-F99 DC Axial Fan 24VDC 40x40x20mm 1.54W
$8.35
Available
PRODUCT GALLERY
01 / 4

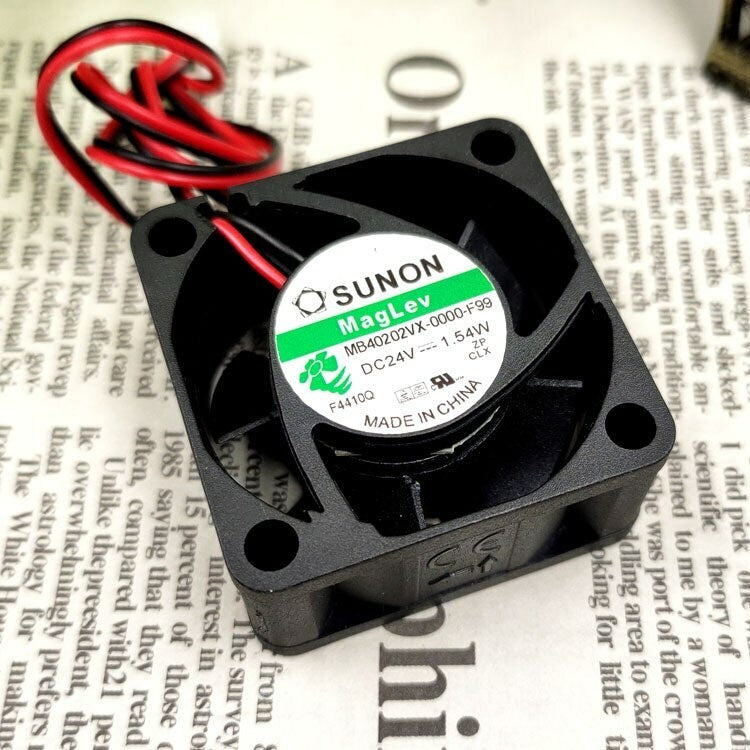

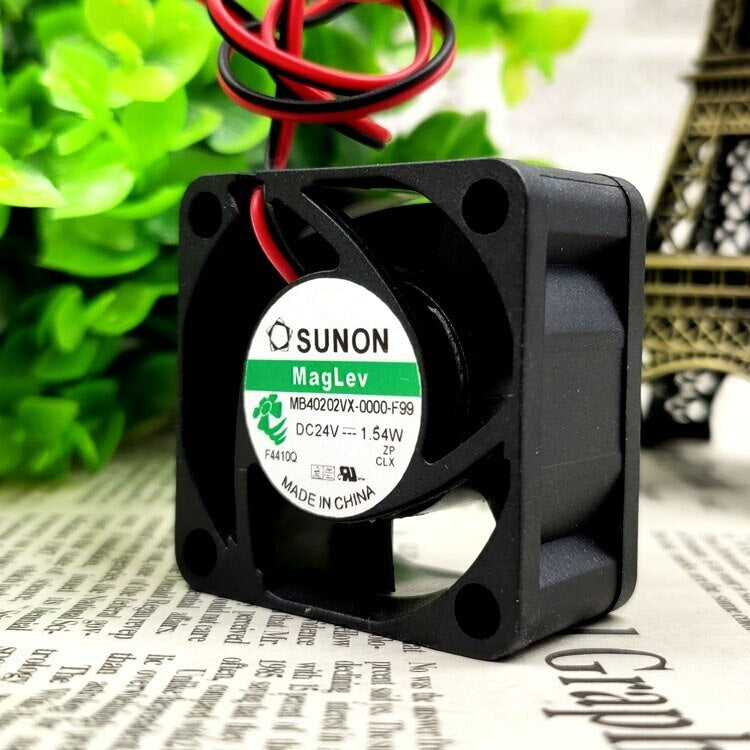

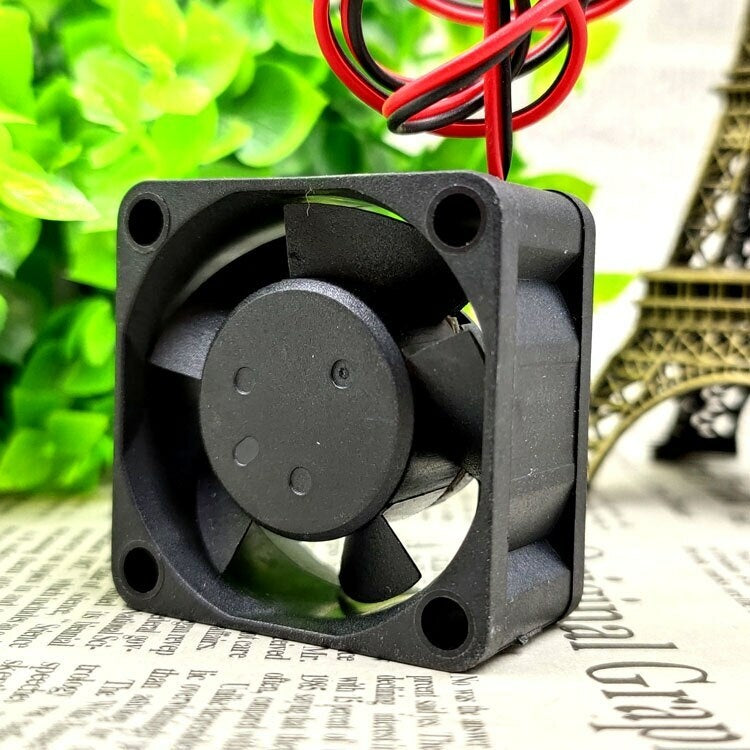

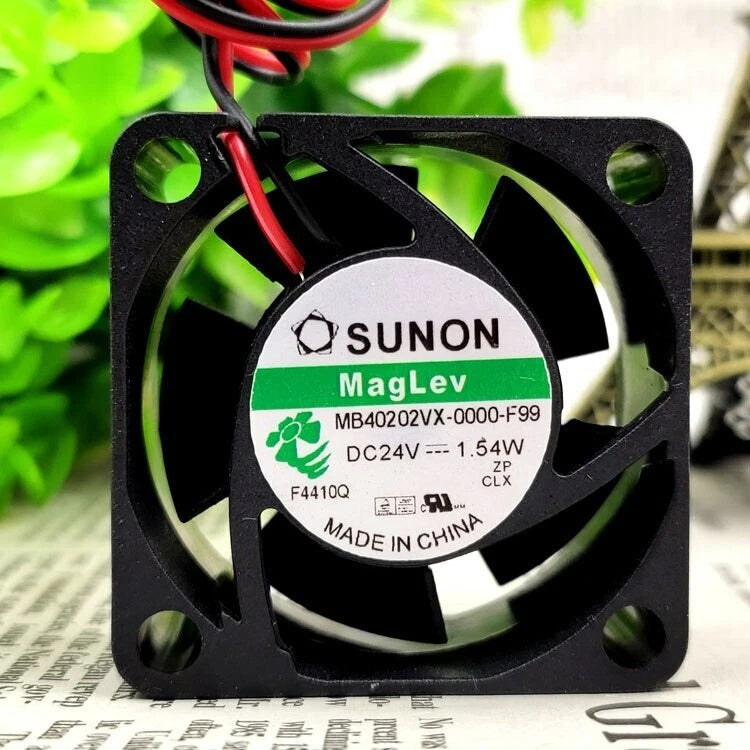

Product images for part identification
SUNON
SUNON MB40202VX-0000-F99 DC Axial Fan 24VDC 40x40x20mm 1.54W
PRODUCT PRICE
USD
$8.35
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | MB40202VX-0000-F99 |
| Product Category | DC Axial Fan |
| Product Series | MagLev MB Series |
| Fan Type | DC Brushless Tubeaxial Fan |
| Motor Technology | SUNON MagLev |
| Dimensions | 40 x 40 x 20 mm |
| Rated Voltage | 24 VDC |
| Listed Power Consumption | 1.54 W |
| Manufacturer-Documented Reference | MB40202VX-000U-F99 |
| Reference Rated Current | 0.064 A for MB40202VX-000U-F99 |
| Reference Operating Voltage Range | 8-27.6 VDC for MB40202VX-000U-F99 |
| Reference Rated Speed | 8200 RPM for MB40202VX-000U-F99 |
| Reference Airflow | 10.8 CFM (0.302 m³/min) for MB40202VX-000U-F99 |
| Reference Static Pressure | 0.270 inH2O (67.3 Pa) |
| Reference Noise Level | 27.5 dB(A) |
| Reference Weight | Approximately 31 g |
Key Features
Compact 40 x 40 x 20 mm Frame
The fan uses a 40 mm square housing with a 20 mm depth, making it suitable for cooling assemblies where installation space is restricted.
1.54 W Power Rating
Supplier listings identify a 1.54 W power rating for MB40202VX-0000-F99. The closely related manufacturer-recognized MB40202VX-000U-F99 is rated at 0.064 A with a 24 VDC supply.
10.8 CFM Reference Airflow
SUNON reference specifications for MB40202VX-000U-F99 identify 8200 RPM, 10.8 CFM airflow and 0.270 inH2O static pressure. Verify whether the requested 0000 configuration has identical performance.
MagLev Vapo Bearing Technology
The manufacturer-recognized MB40202VX-000U-F99 uses SUNON MagLev technology with a Vapo bearing and PBT thermoplastic frame and impeller.
Motor Monitoring and Protection
The documented MB40202VX-000U-F99 configuration incorporates automatic restart and a locked rotor sensor through a three-wire connection. Electrical functions must be checked against the actual fan supplied.
Applications
- Industrial variable frequency drive cooling
- Compact inverter ventilation
- Industrial power electronics thermal management
- Electronic control enclosure cooling
- Telecommunications equipment ventilation
- Network equipment forced-air cooling
- Compact industrial controller cooling
- Replacement of compatible 40 mm 24 VDC axial cooling fans
Purchase Information
We support online purchase of the SUNON MB40202VX-0000-F99 fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON MB40202VX-0000-F99?
MB40202VX-0000-F99 is a SUNON 24 VDC axial cooling fan identified in industrial replacement-part listings. The closely related manufacturer-recognized part number is MB40202VX-000U-F99.
What is the rated voltage of MB40202VX-0000-F99?
Supplier specifications identify a rated supply voltage of 24 VDC.
What are the dimensions of MB40202VX-0000-F99?
The external dimensions are 40 x 40 x 20 mm.
What is the rated power consumption?
Multiple supplier listings specify 1.54 W for MB40202VX-0000-F99, matching the published power rating of MB40202VX-000U-F99.
What is the rated current?
The manufacturer-recognized MB40202VX-000U-F99 has a rated current of 0.064 A. Verify the electrical label on the requested 0000 version before installation.
What is the fan speed?
The documented MB40202VX-000U-F99 reference is rated at 8200 RPM. Exact performance equivalence with MB40202VX-0000-F99 has not been independently established.
What airflow does this fan provide?
The SUNON MB40202VX-000U-F99 reference specifies 10.8 CFM, equivalent to approximately 0.302 m³/min. Confirm this rating for the actual 0000 configuration.
What is the static pressure rating?
The documented MB40202VX-000U-F99 version is specified at 0.270 inH2O, approximately 67.3 Pa.
What bearing system does the fan use?
The reference MB40202VX-000U-F99 uses SUNON Vapo bearing technology within its MagLev motor design.
How many wires does MB40202VX-0000-F99 have?
The manufacturer-recognized MB40202VX-000U-F99 uses three wire leads. Suppliers list different connection options for the 0000 designation, so verify the actual fan wiring and connector before ordering.
What is the difference between MB40202VX-0000-F99 and MB40202VX-000U-F99?
The 0000 designation appears in replacement-part listings, whereas 000U-F99 is a recognized manufacturer product number. Although the published voltage, dimensions and power ratings align, the two complete designations have not been confirmed to be identical.
What should be checked before ordering MB40202VX-0000-F99?
Verify the complete model designation, 24 VDC supply, 1.54 W rating, 40 x 40 x 20 mm dimensions, mounting-hole spacing, bearing specification, lead count, locked rotor signal, connector pinout and required airflow against the existing equipment. Do not assume that the 0000 and 000U suffixes are interchangeable without confirmation.
