Technical Specifications

Key Features

Applications

• Industrial control cabinet ventilation with compatible AC power
• Industrial electronic equipment thermal management
• Power supply enclosure forced-air cooling
• Telecommunications equipment ventilation
• Industrial measurement instrument cooling
• Compact electronic control enclosure ventilation
• Commercial electrical equipment heat dissipation
• Replacement of compatible 80 mm 220-240 VAC axial cooling fans

Purchase Information

We support online purchase of the SUNON MA2082-HVL GN fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is SUNON MA2082-HVL GN?

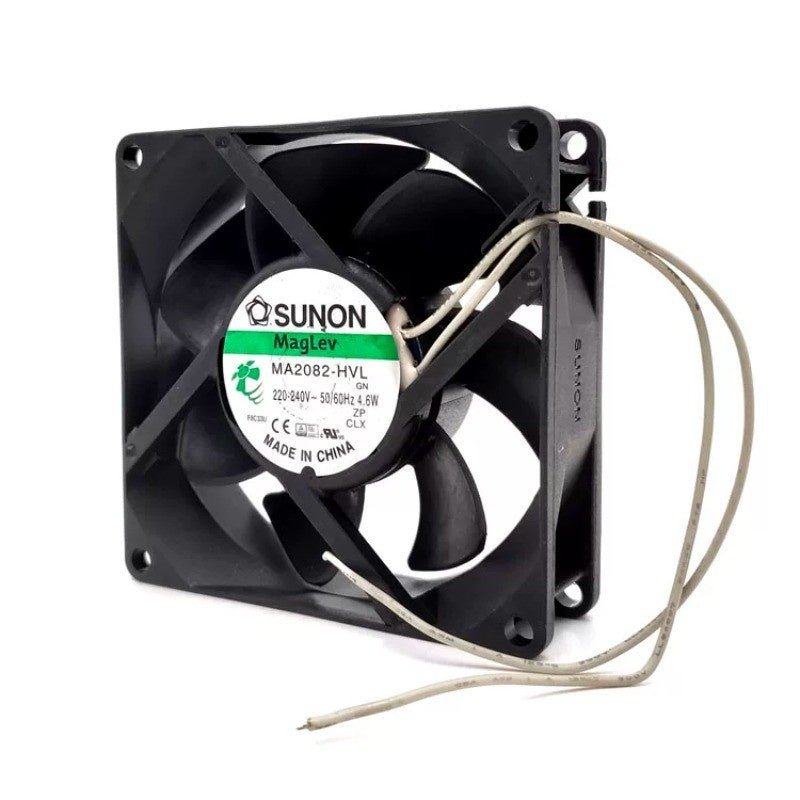

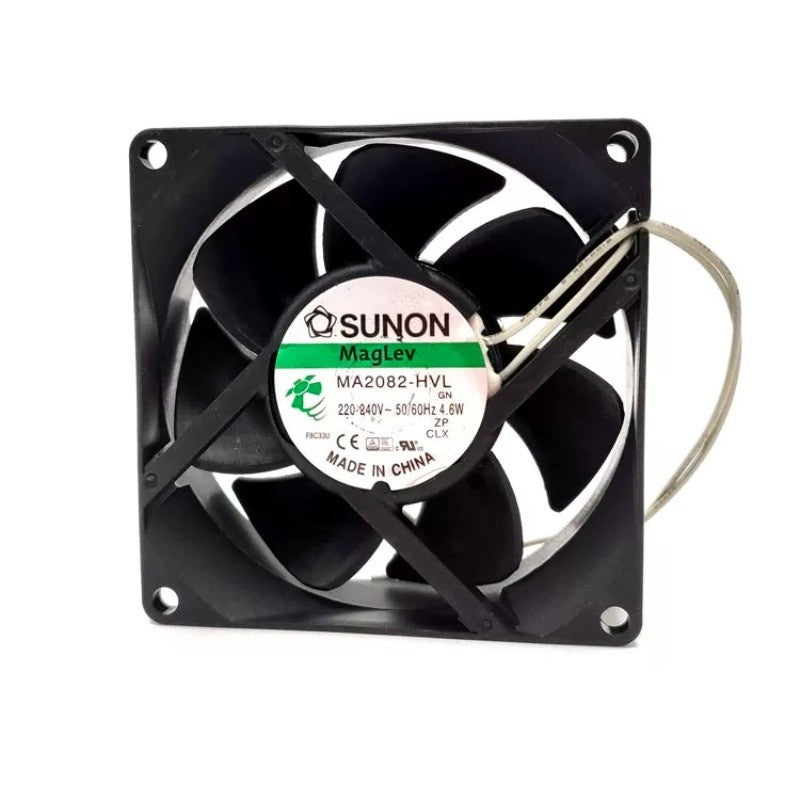

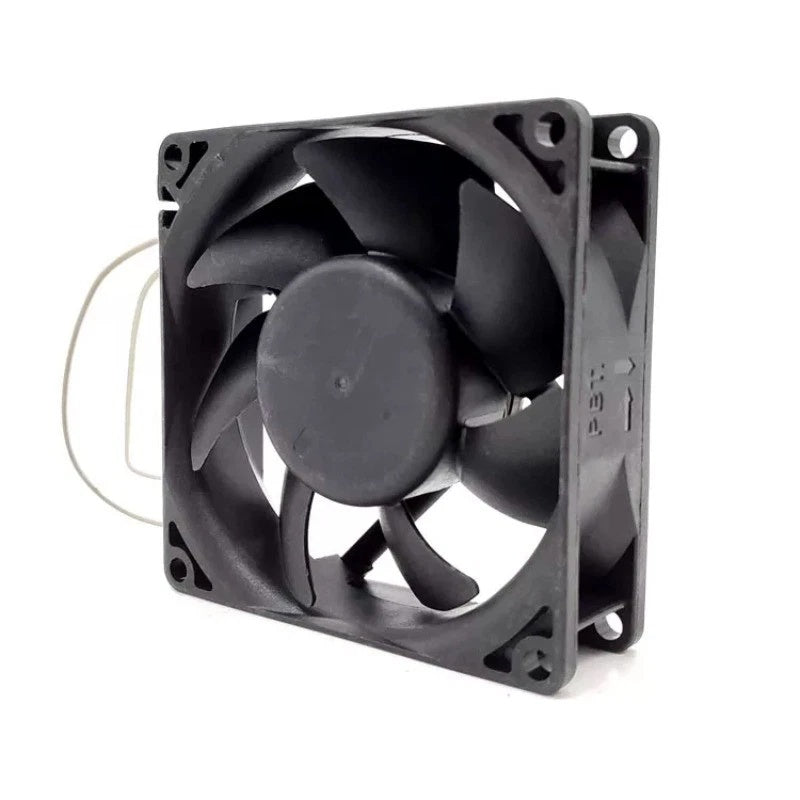

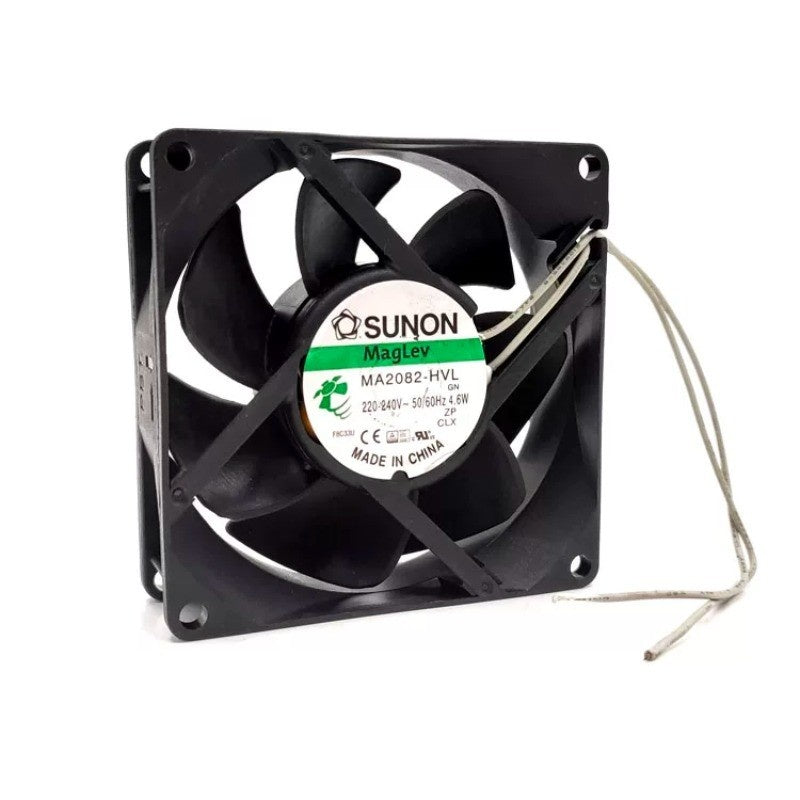

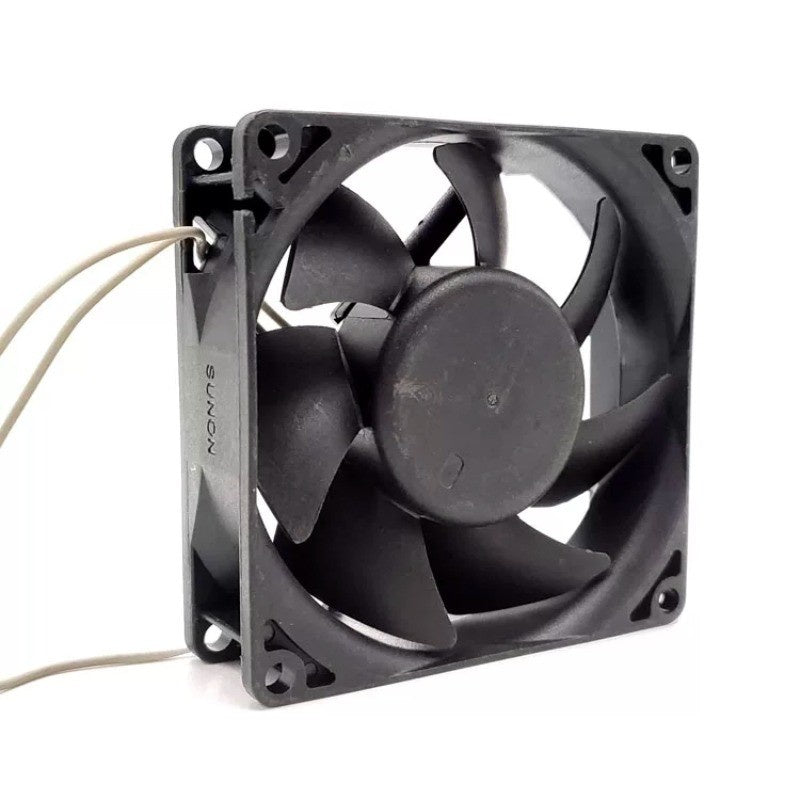

MA2082-HVL GN is a SUNON MagLev MA-series AC axial cooling fan with an 80 x 80 x 25 mm housing, a 220-240 VAC rated supply and a Vapo bearing system.

What is the rated voltage of MA2082-HVL GN?
The manufacturer specifies 220-240 VAC at 50/60 Hz. The detailed technical specification identifies an operating voltage range of 150-250 VAC and a starting voltage of 150 VAC at 25°C.

What are the dimensions of MA2082-HVL GN?
The nominal dimensions are 80 x 80 x 25 mm. The manufacturer mechanical drawing specifies an 80 ±0.5 mm frame width and 71.5 ±0.3 mm mounting-hole spacing.

What is the rated current?
The SUNON catalog identifies 0.215 A at 50 Hz and 0.225 A at 60 Hz. The separate model-specific specification A08000420G-00 reports 209/220 mA RMS and 102/101 mA True RMS, respectively. Check the applicable specification and supply conditions when sizing electrical protection.

What is the power consumption?
SUNON specifies 4.6 W input power at both 50 Hz and 60 Hz. The manufacturer notes a ±15% tolerance for rated power and current.

What is the rated fan speed?
The manufacturer specifies 3200 RPM at 50 Hz and 3300 RPM at 60 Hz, with a tolerance of ±20% in the detailed technical specification.

What airflow does MA2082-HVL GN provide?
The SUNON datasheet specifies 40 CFM at 50 Hz and 41 CFM at 60 Hz, equivalent to approximately 68.0 and 69.7 m³/h respectively.

What is the static pressure rating?
The published maximum static pressure is 0.14 inH2O at 50 Hz and 0.15 inH2O at 60 Hz, approximately 34.9 and 37.4 Pa respectively.

What bearing system does MA2082-HVL GN use?
The manufacturer identifies a SUNON Vapo bearing system. The fan belongs to the MagLev motor range and uses a PBT thermoplastic frame and impeller.

What is the acoustical noise level?
The manufacturer specifies 32 dB(A) at 50 Hz and 33 dB(A) at 60 Hz. Actual installed noise can vary with mounting conditions, airflow restrictions and surrounding equipment.

How is MA2082-HVL GN electrically connected?
The manufacturer drawing specifies two AC power leads using UL 3266 24 AWG wire, with a nominal lead length of 300 ±50 mm. Because the fan operates from AC mains voltage, installation should be carried out by qualified personnel with appropriate isolation, wiring and external circuit protection.

What should be checked before ordering MA2082-HVL GN?
Confirm the complete SUNON model number, 220-240 VAC supply, 50/60 Hz frequency, 4.6 W input power, 80 x 80 x 25 mm dimensions, 71.5 mm mounting-hole spacing, Vapo bearing construction, two-wire connection, connector termination, airflow direction and required cooling performance. MA1082-HVL GN is a different 115 VAC version and should not be directly substituted without verifying the supply voltage and equipment requirements.
