24 VDC Brushless Cooling
The SUNON KDE2406PTS3 is a 24 VDC brushless axial fan designed to provide forced-air cooling for compatible electronic and industrial equipment.
SUNON

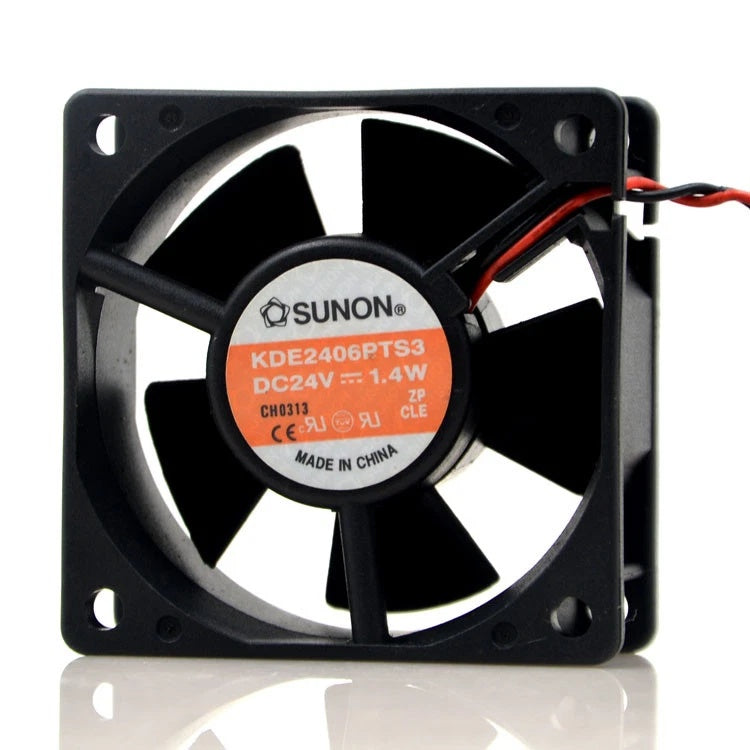

SUNON KDE2406PTS3 DC Axial Fan 24VDC 60x60x25mm 1.4W
$6.02
Available
PRODUCT GALLERY
01 / 8

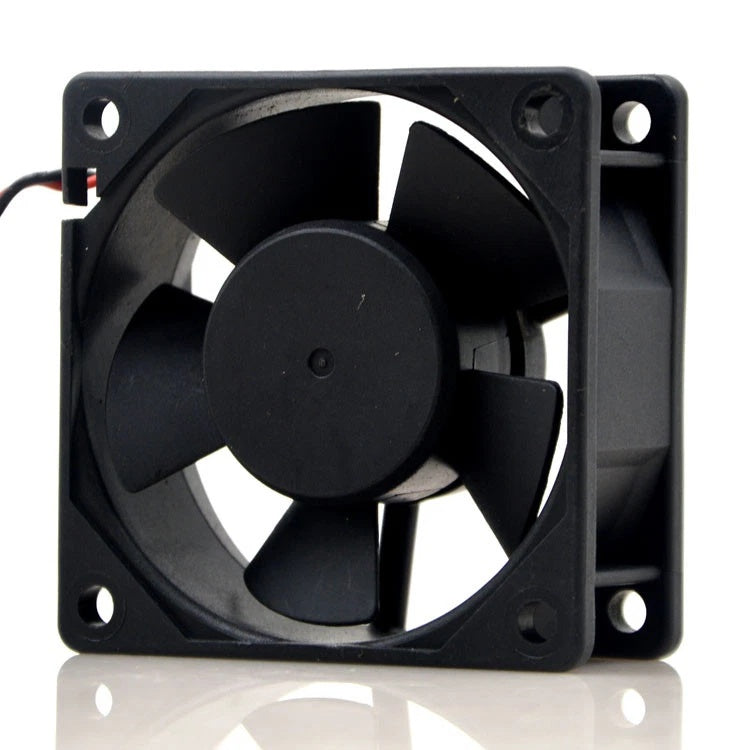

Product images for part identification
SUNON
SUNON KDE2406PTS3 DC Axial Fan 24VDC 60x60x25mm 1.4W
PRODUCT PRICE
USD
$6.02
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | KDE2406PTS3 |
| Product Category | DC Axial Fan |
| Product Series | KDE Series |
| Fan Type | DC Brushless Axial Cooling Fan |
| Dimensions | 60 x 60 x 25 mm |
| Rated Voltage | 24 VDC |
| Rated Power Consumption | 1.4 W |
| Approximate Rated Current | 0.06 A |
| Manufacturer Catalog Variant | KDE2406PTS3 V |
| Catalog Fan Speed | 3100 RPM for KDE2406PTS3 V |
| Catalog Airflow | 16 CFM for KDE2406PTS3 V |
| Catalog Static Pressure | 0.10 inH2O for KDE2406PTS3 V |
| Catalog Acoustical Noise | 25 dB(A) for KDE2406PTS3 V |
| Bearing System | Sleeve Bearing |
| Cooling Method | Forced-Air Cooling |
| Related Documented Part Number | KD2406PTS3.13.A.GN; verify exact interchangeability |
| Connection Type | DC Lead Wires; verify termination |
Key Features
60 x 60 x 25 mm Frame
The fan uses a compact 60 mm square housing with a 25 mm depth, providing a standard dimensional reference for equipment cooling installations.
1.4 W Power Consumption
SUNON KDE-series documentation specifies 1.4 W for the KDE2406PTS3 V configuration, corresponding to approximately 0.06 A at 24 VDC.
16 CFM Catalog Airflow
The manufacturer catalog identifies 16 CFM airflow and 0.10 inH2O static pressure for the KDE2406PTS3 V configuration.
Sleeve Bearing Design
The KDE2406PTS3 is identified with sleeve bearing construction in published SUNON product information.
Documented Acoustic Performance
The KDE2406PTS3 V is specified at 3100 RPM and 25 dB(A). Other documented KD2406PTS3 configurations have different performance values, so complete model identification is important.
Applications
- Industrial electronic equipment cooling
- Compact electrical enclosure ventilation
- Industrial power supply cooling
- Inverter and converter ventilation after compatibility verification
- Industrial control electronics cooling
- Network and communications equipment ventilation
- Forced-air cooling of electronic circuit assemblies
- Replacement of compatible 60 mm DC axial cooling fans
Purchase Information
We support online purchase of the SUNON KDE2406PTS3 fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON KDE2406PTS3?
KDE2406PTS3 is a SUNON KDE-series DC brushless axial cooling fan with a nominal 60 x 60 x 25 mm housing.
What is the rated voltage of KDE2406PTS3?
The manufacturer catalog specifies 24 VDC.
What are the dimensions of KDE2406PTS3?
The documented dimensions are 60 x 60 x 25 mm. Confirm mounting-hole dimensions against the installed fan.
What is the rated power consumption?
SUNON lists 1.4 W for the KDE2406PTS3 V configuration.
What is the current rating of KDE2406PTS3?
At 24 VDC, the documented 1.4 W power rating corresponds to approximately 0.06 A. Confirm the electrical marking on the supplied unit.
What is the fan speed?
The SUNON KDE catalog lists 3100 RPM for KDE2406PTS3 V. A separately identified KD2406PTS3 variant is listed at 3300 RPM, so the complete designation should be checked.
What is the airflow rating?
SUNON specifies 16 CFM for KDE2406PTS3 V under its catalog test conditions.
What is the static pressure rating?
The KDE2406PTS3 V catalog entry lists 0.10 inH2O static pressure.
What bearing system does KDE2406PTS3 use?
The published KDE-series catalog identifies a sleeve bearing for this model.
What is the acoustical noise level?
The manufacturer lists 25 dB(A) for the KDE2406PTS3 V configuration.
Are KDE2406PTS3 and KD2406PTS3 identical?
Not necessarily. The KDE and KD designations appear in separate product records with different listed operating speeds and noise values. Verify the full model number and electrical and mechanical specifications before substitution.
What should be checked before ordering KDE2406PTS3?
Confirm the full model marking, 24 VDC supply, 1.4 W power rating, 60 x 60 x 25 mm frame, bearing type, mounting-hole spacing, lead-wire polarity, connector termination and required airflow against the existing equipment.
