24 VDC Brushless Cooling
The SUNON KDE2406PTB3 is a 24 VDC brushless axial cooling fan designed to provide forced-air ventilation for compatible electronic and industrial equipment.
SUNON
SUNON KDE2406PTB3 DC Axial Fan 24VDC 60x60x25mm
$9.87
Available
PRODUCT GALLERY
01 / 3

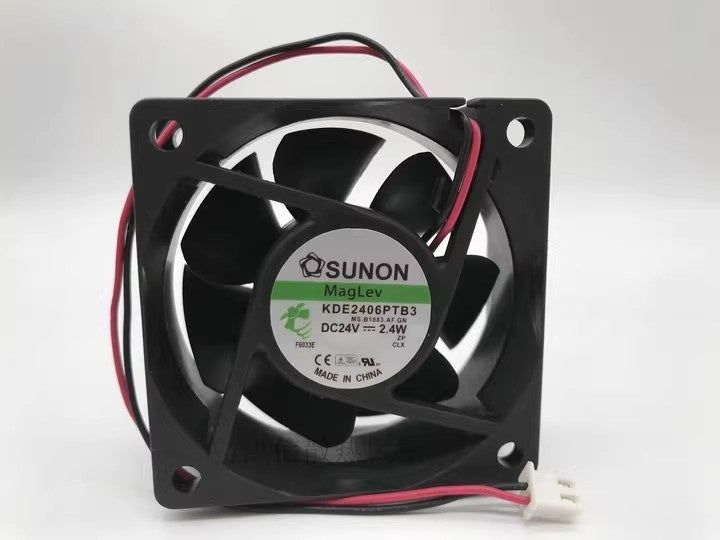

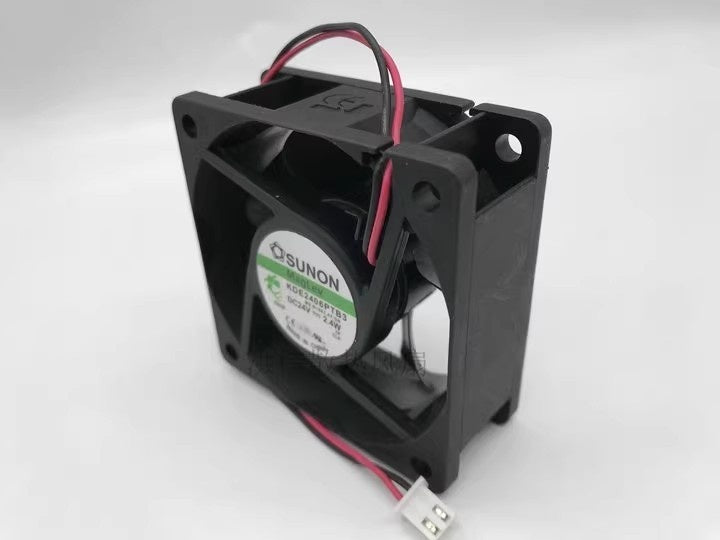

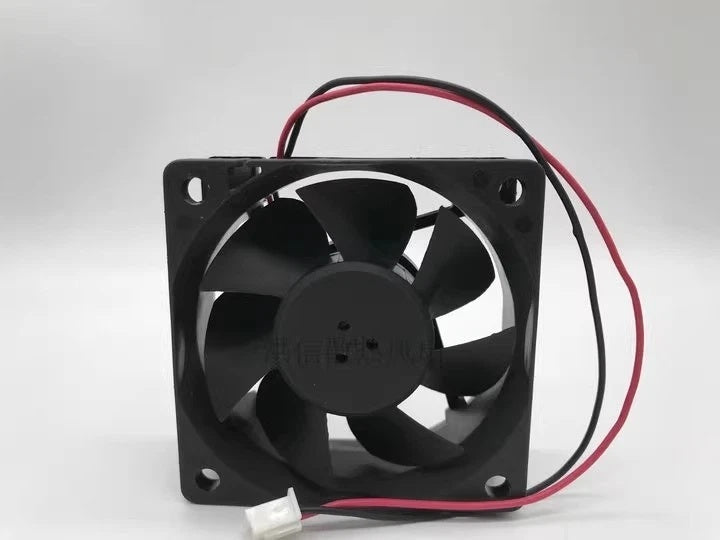

Product images for part identification
SUNON
SUNON KDE2406PTB3 DC Axial Fan 24VDC 60x60x25mm
PRODUCT PRICE
USD
$9.87
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | KDE2406PTB3 |
| Product Category | DC Axial Fan |
| Product Series | KDE Traditional Motor Series |
| Fan Type | DC Brushless Axial Cooling Fan |
| Dimensions | 60 x 60 x 25 mm |
Key Features
60 x 60 x 25 mm Frame
The fan features a 60 mm square housing with a 25 mm depth, providing a defined mounting format for compact electronic enclosures and equipment cooling assemblies.
Manufacturer Catalog Performance
The SUNON KDE Traditional Motor catalog identifies KDE2406PTB3 V with 1.4 W power, 3200 RPM speed, 16.8 CFM airflow and 0.11 inH2O static pressure.
Ball Bearing Construction
The manufacturer catalog classifies KDE2406PTB3 V as a ball bearing fan, distinguishing its bearing design from the sleeve bearing KDE2406PTS3 configuration.
Higher-Performance MS.B1883 Version
The separately documented KDE2406PTB3 MS.B1883.A.X.GN configuration is listed at 2.4 W, 4800 RPM and 23.5 CFM. These ratings should not be applied automatically to other versions.
Multiple Wiring Configurations
The MS.B1883.A.X.GN configuration is listed with a three-wire connection for speed feedback, while other replacement listings describe two-wire versions. Connector and signal compatibility must be verified before installation.
Applications
- Industrial inverter and converter cooling
- Switching power supply ventilation
- Industrial electronic control equipment cooling
- Server and communication equipment ventilation
- Electronic instrumentation thermal management
- Compact electrical enclosure forced-air cooling
- Industrial drive maintenance and cooling fan replacement
- Replacement of compatible 60 mm 24 VDC axial cooling fans
Purchase Information
We support online purchase of the SUNON KDE2406PTB3 fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON KDE2406PTB3?
KDE2406PTB3 is a SUNON KDE-series DC brushless axial cooling fan with a 60 x 60 x 25 mm housing and a nominal 24 VDC supply.
What is the rated voltage of KDE2406PTB3?
The documented manufacturer catalog and MS.B1883 replacement configurations are rated at 24 VDC.
What are the dimensions of KDE2406PTB3?
The external dimensions are 60 x 60 x 25 mm. Verify the mounting-hole pattern and lead exit position against the existing fan.
What is the power consumption?
SUNON's KDE catalog specifies 1.4 W for KDE2406PTB3 V. The separately documented MS.B1883.A.X.GN configuration is listed at 2.4 W. Confirm which configuration is required.
What is the rated current?
Replacement specifications for MS.B1883.A.X.GN identify 0.10 A at 24 VDC. A separate two-wire replacement listing gives 0.14 A. These are configuration-specific supplier values.
What is the rated fan speed?
The manufacturer catalog lists 3200 RPM for KDE2406PTB3 V. Suppliers specify 4800 RPM for MS.B1883.A.X.GN, while a separate two-wire replacement lists 5300 RPM.
What airflow does KDE2406PTB3 provide?
The manufacturer catalog specifies 16.8 CFM for KDE2406PTB3 V. The separately listed MS.B1883.A.X.GN version is rated at 23.5 CFM by replacement suppliers.
What is the static pressure rating?
SUNON specifies 0.11 inH2O for KDE2406PTB3 V. The MS.B1883 replacement configuration is separately listed at 0.24 inH2O.
What bearing system does KDE2406PTB3 use?
The SUNON KDE Traditional Motor catalog identifies KDE2406PTB3 V as a ball bearing model. Verify bearing construction separately when ordering a special suffix configuration.
How many wires does KDE2406PTB3 have?
The MS.B1883.A.X.GN version is documented with three wires and a three-pin connector. Two-wire replacement configurations also appear in supplier listings. Match the existing connector and signal requirements.
Is KDE2406PTB3 interchangeable with KDE2406PTS3?
Not automatically. The manufacturer catalog distinguishes the PTB3 ball bearing configuration from the PTS3 sleeve bearing configuration. Performance ratings and special suffix options may also differ.
What should be checked before ordering KDE2406PTB3?
Confirm the complete SUNON model and suffix, 24 VDC supply, rated current and power, 60 x 60 x 25 mm dimensions, bearing type, mounting-hole spacing, airflow requirements, two-wire or three-wire connection, signal function and connector pinout. The catalog V and MS.B1883 configurations have different published performance values and should not be treated as identical.
Need help confirming a model?
Send us your part number and technical requirements.
