Technical Specifications

Key Features

Applications

• Industrial control cabinet ventilation
• Compact switching power supply cooling
• Embedded computer equipment thermal management
• Network and communication equipment ventilation
• Industrial automation electronics cooling
• Electronic instrumentation enclosure ventilation
• Compact electronic equipment forced-air cooling
• Replacement of compatible 60 mm 12 VDC axial cooling fans

Purchase Information

We support online purchase of the SUNON KDE1206PTS1 fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is SUNON KDE1206PTS1?

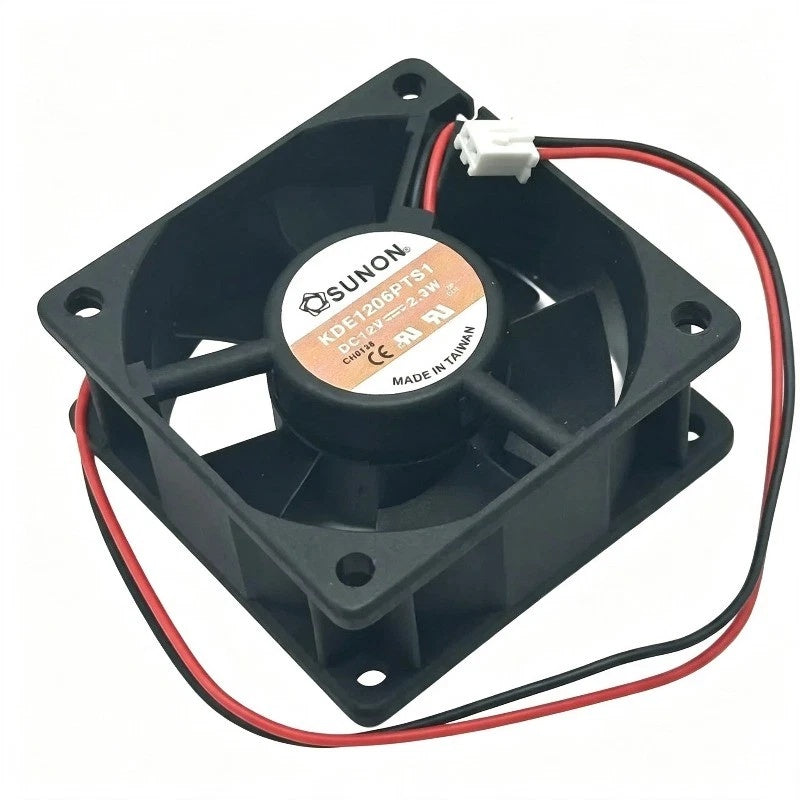

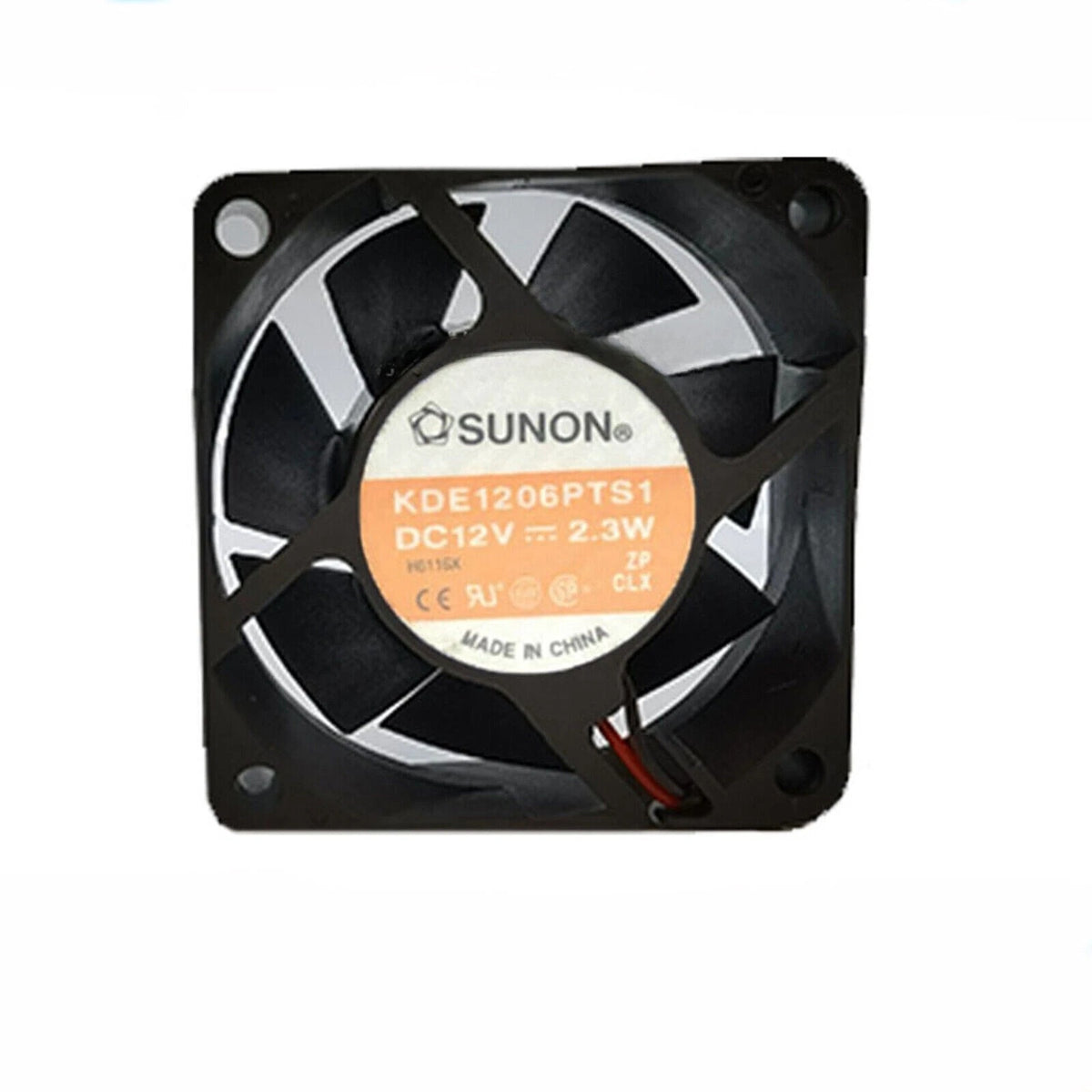

KDE1206PTS1 is a SUNON KDE-series brushless DC axial cooling fan with a nominal 60 x 60 x 25 mm housing and a rated voltage of 12 VDC.

What is the rated voltage of KDE1206PTS1?
SUNON manufacturer catalogs and commercial listings identify a rated voltage of 12 VDC. Confirm the supply polarity and applicable operating voltage range before installation.

What are the dimensions of KDE1206PTS1?
The nominal dimensions are 60 x 60 x 25 mm. Verify the mounting-hole pattern, cable exit position and available installation clearance against the existing fan.

What is the rated current?
The SUNON September 2000 catalog specifies 0.19 A for KDE1206PTS1 V. A current value for the unspecified-suffix replacement unit was not independently verified, so the actual fan label should be checked.

What is the power consumption?
Different published configurations have different ratings. SUNON lists 2.3 W for KDE1206PTS1 V and 1.9 W for KDE1206PTS1 H. Radwell lists 2.2 W for the base KDE1206PTS1 model. Confirm the supplied version before selecting a power supply or replacement.

What is the rated fan speed?
SUNON catalogs specify 4300 RPM for KDE1206PTS1 V and KDE1206PTS1 H. An exact-model replacement listing also specifies 4300 RPM.

What airflow does KDE1206PTS1 provide?
SUNON lists 22.5 CFM, approximately 38.2 m³/h, for both the V and H catalog configurations. Airflow should be confirmed against the required replacement version and operating conditions.

What is the static pressure rating?
The published V and H catalog configurations specify 0.20 inH2O, approximately 49.8 Pa, maximum static pressure.

What bearing system does KDE1206PTS1 use?
SUNON model documentation identifies a sleeve bearing system. Related PTB models use ball bearings and should not automatically be treated as equivalent.

What is the acoustical noise level?
The SUNON V and H catalog configurations both specify 33.5 dB(A). Actual installed noise can vary with mounting conditions and airflow restrictions.

How is KDE1206PTS1 electrically connected?
A commercially listed KDE1206PTS1 replacement fan uses a two-pin connection. Confirm the wire count, connector housing, electrical polarity and cable length on the actual unit before installation.

What should be checked before ordering KDE1206PTS1?
Confirm the complete SUNON model number and suffix, 12 VDC supply, applicable power and current ratings, 60 x 60 x 25 mm dimensions, sleeve bearing construction, 4300 RPM rated speed, mounting arrangement, wire polarity, connector type and cooling requirements. The V, H and base-model commercial listings differ in published power consumption, so they should not automatically be substituted for one another. KDE1206PTS2, KDE1206PTS3 and KDE1206PTB1 also have different performance or bearing specifications.
