12 VDC MagLev Cooling
The KDE1206PHV2 features SUNON MagLev brushless motor technology, with a rated 12 VDC supply and an operating voltage range of 6-13.8 VDC for the documented MS.A.GN configuration.
SUNON

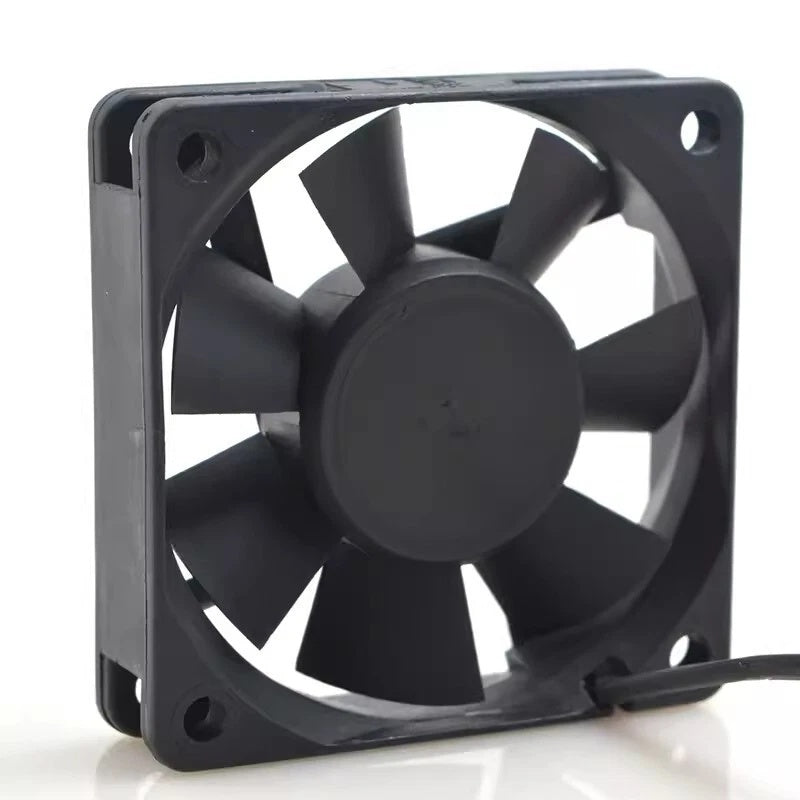

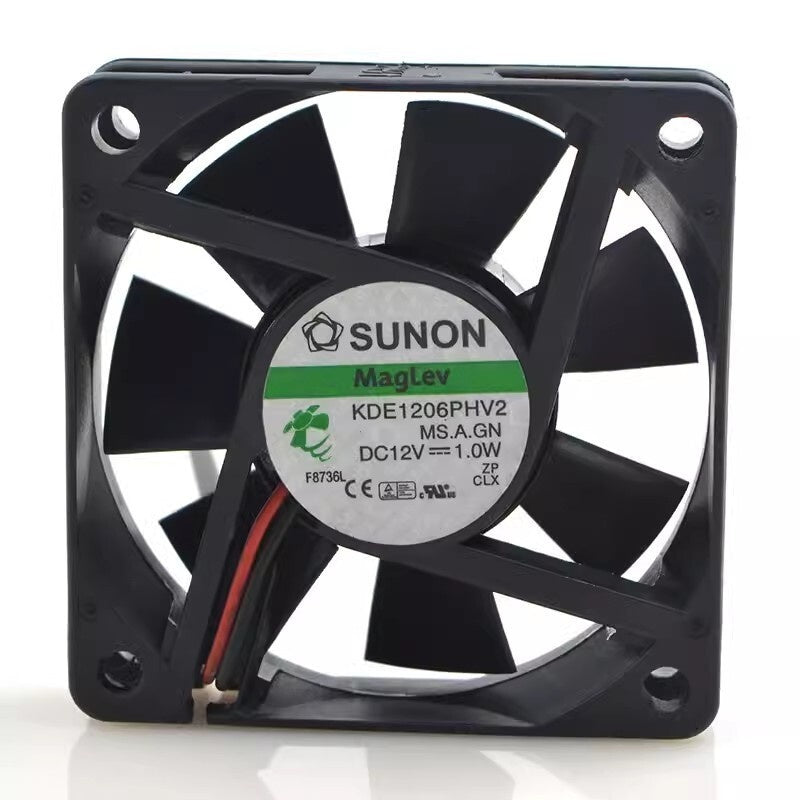

SUNON KDE1206PHV2 DC Axial Fan 12VDC 60x60x15mm 0.08A
$13.54
Available
PRODUCT GALLERY
01 / 2
Product images for part identification
SUNON
SUNON KDE1206PHV2 DC Axial Fan 12VDC 60x60x15mm 0.08A
PRODUCT PRICE
USD
$13.54
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | KDE1206PHV2 |
| Product Category | DC Axial Fan |
| Product Series | KDE MagLev Series |
| Documented Part Number | MS.A.GN |
| Manufacturer Specification Number | D06026410G-00 |
| Fan Type | DC Brushless Axial Cooling Fan |
| Motor Design | Single-Coil, Four-Pole Brushless DC Motor |
| Dimensions | 60 x 60 x 15 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 6-13.8 VDC |
| Starting Voltage | 6 VDC at 25°C |
| Rated Current | 0.08 A |
| Rated Power | 1.0 W |
| Rated Speed | 3800 RPM ±15% |
| Air Delivery | 18 CFM |
| Static Pressure | 0.14 inH2O |
| Noise Level | 31 dB(A) |
| Bearing System | Vapo Bearing |
| Rotation Direction | Counterclockwise Viewed from Front of Fan Blade |
| Airflow Direction | Toward Label Side |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Frame Material | PBT Thermoplastic, UL 94V-0 |
| Impeller Material | PBT Thermoplastic, UL 94V-0 |
| Electrical Connection | 2 Wire Leads: Red Positive (+), Black Negative (-) |
| Lead Wire Specification | UL 1007, 26 AWG |
| Lead Wire Length | 300 ±50 mm |
| Mounting Hole Spacing | 50 ±0.3 mm |
| Locked Rotor Protection | Automatic Restart Capability |
| Weight | 42 g |
Key Features
60 x 60 x 15 mm Frame
The compact axial fan measures 60 x 60 x 15 mm and has a nominal 50 mm mounting-hole spacing for integration into compatible electronic equipment.
3800 RPM Rated Speed
The manufacturer specifies a rated speed of 3800 RPM with a tolerance of ±15% for the KDE1206PHV2 MS.A.GN configuration.
18 CFM Air Delivery
The published air delivery is 18 CFM, with a static pressure rating of 0.14 inH2O under the manufacturer's specified conditions.
Vapo Bearing System
The fan incorporates a SUNON Vapo bearing and a PBT thermoplastic frame and impeller rated UL 94V-0. The documented acoustical noise level is 31 dB(A).
Automatic Restart Protection
The manufacturer specifies automatic restart capability after a locked rotor condition is removed. The standard MS.A.GN configuration uses red positive and black negative power leads.
Applications
- Compact electronic equipment cooling
- Industrial control module ventilation
- Electronic power supply cooling
- Network and communications equipment ventilation
- Small electronic enclosure airflow management
- Embedded computer thermal management
- Localized forced-air cooling of circuit assemblies
- Replacement of compatible 60 mm DC axial cooling fans
Purchase Information
We support online purchase of the SUNON KDE1206PHV2 fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON KDE1206PHV2?
KDE1206PHV2 is a SUNON KDE-series MagLev DC brushless axial cooling fan with a 60 x 60 x 15 mm housing.
What is the rated voltage of KDE1206PHV2?
The manufacturer's MS.A.GN specification identifies a rated supply voltage of 12 VDC.
What is the operating voltage range?
The documented operating range is 6-13.8 VDC, with a starting voltage of 6 VDC at 25°C.
What are the dimensions of KDE1206PHV2?
The manufacturer specifies external dimensions of 60 x 60 x 15 mm and nominal mounting-hole spacing of 50 mm.
What are the rated current and power consumption?
The SUNON MS.A.GN specification lists 0.08 A rated current and 1.0 W rated power. Older catalog configurations may have different ratings.
What is the rated fan speed?
The documented rated speed is 3800 RPM with a tolerance of ±15%.
What airflow does KDE1206PHV2 provide?
The manufacturer specifies 18 CFM for the MS.A.GN configuration.
What is the static pressure rating?
The published static pressure is 0.14 inH2O for the documented configuration.
What bearing system does KDE1206PHV2 use?
It uses a SUNON Vapo bearing system with MagLev motor technology.
What is the acoustical noise level?
The manufacturer's MS.A.GN specification lists 31 dB(A) under its stated measurement conditions.
How is KDE1206PHV2 connected?
The manufacturer's mechanical drawing identifies two UL 1007 26 AWG leads, red positive and black negative, approximately 300 mm long. Verify the actual connector termination before installation.
What should be checked before ordering KDE1206PHV2?
Confirm the complete model and MS.A.GN part number, 12 VDC supply, 0.08 A current, 60 x 60 x 15 mm dimensions, mounting-hole spacing, connector termination, airflow direction and cooling requirements. KDE1206PHV1 and KDE1206PHV3 have different performance ratings and should not automatically be substituted.
