12 VDC MagLev Cooling
The KDE1204PKV1 is a SUNON brushless axial cooling fan featuring MagLev motor technology and a 12 VDC rated supply in the documented MS.A.GN configuration.
SUNON

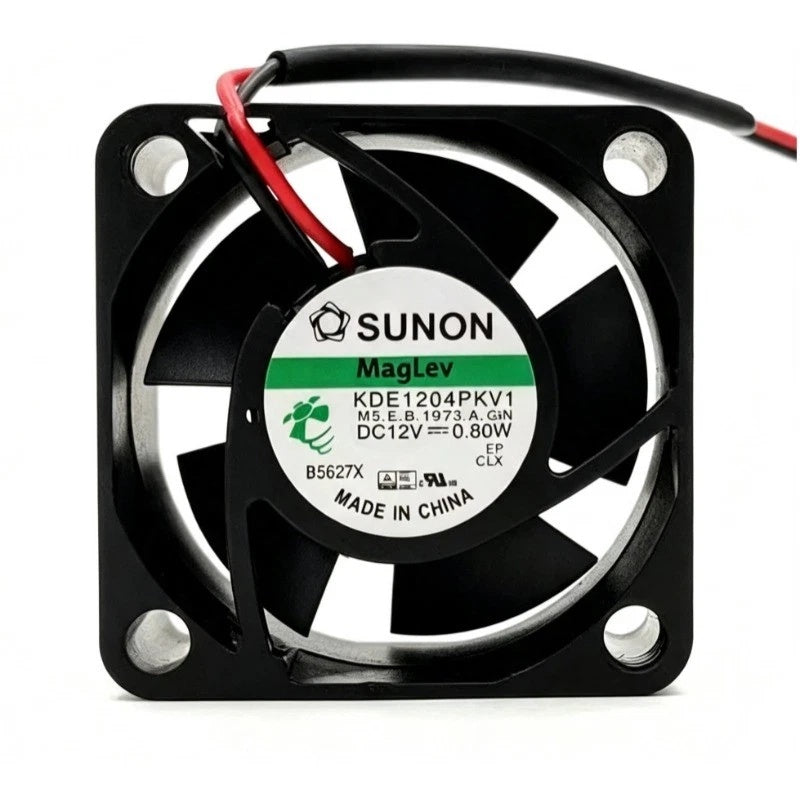

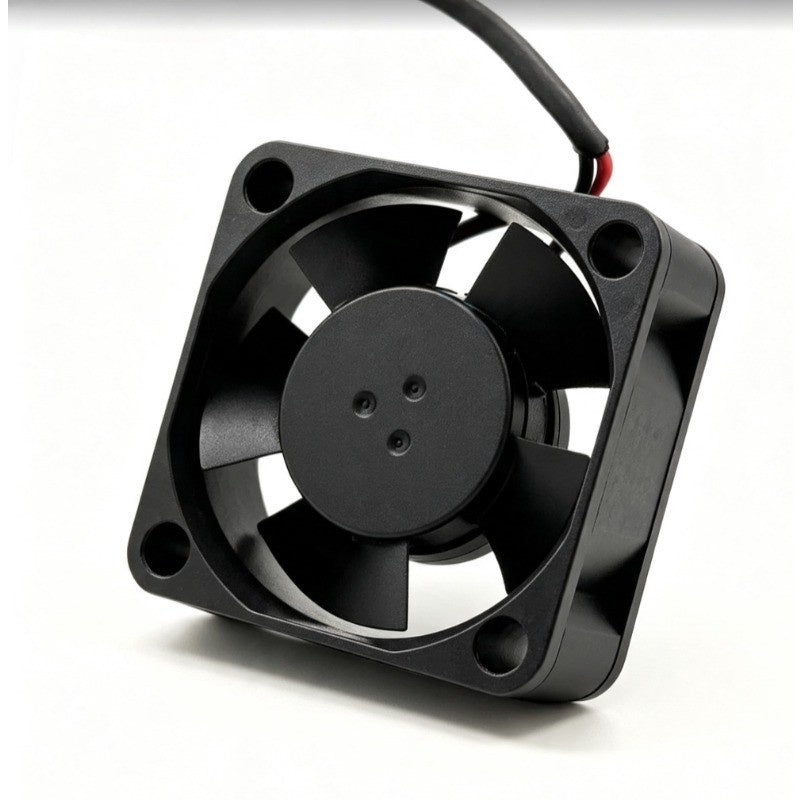

SUNON KDE1204PKV1 DC Axial Fan 12VDC 40x40x20mm 0.07A
$6.48
Available
PRODUCT GALLERY
01 / 8
Product images for part identification
SUNON
SUNON KDE1204PKV1 DC Axial Fan 12VDC 40x40x20mm 0.07A
PRODUCT PRICE
USD
$6.48
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | KDE1204PKV1 |
| Product Category | DC Axial Fan |
| Product Series | KDE MagLev Series |
| Documented Configuration | KDE1204PKV1.MS.A.GN |
| Fan Type | DC Brushless Axial Cooling Fan |
| Motor Technology | SUNON MagLev |
| Dimensions | 40 x 40 x 20 mm |
| Rated Voltage | 12 VDC |
| Rated Current | 0.07 A |
| Power Consumption | 0.8 W |
| Rated Speed | 7200 RPM |
| Airflow | 8.9 CFM |
| Static Pressure | 0.21 inH2O |
| Acoustical Noise | 25.5 dB(A) |
| Bearing System | Vapo Bearing |
| Weight | 31 g |
Key Features
40 x 40 x 20 mm Frame
The compact square housing measures 40 x 40 x 20 mm, with a documented 32 mm mounting-hole spacing for integration into compatible electronic equipment.
7200 RPM Rated Speed
The SUNON MagLev catalog specifies a rated fan speed of 7200 RPM for KDE1204PKV1.MS.A.GN.
8.9 CFM Airflow
The documented fan delivers 8.9 CFM airflow with a static pressure rating of 0.21 inH2O under the manufacturer's specified test conditions.
Vapo Bearing Technology
The fan uses SUNON Vapo bearing technology and has a published acoustical noise rating of 25.5 dB(A).
0.8 W Power Consumption
The MS.A.GN configuration is specified at 0.07 A and 0.8 W with a 12 VDC supply, providing defined electrical requirements for equipment cooling design.
Applications
- Compact industrial electronic equipment cooling
- Network switch and router ventilation
- Embedded computer thermal management
- Small electronic enclosure airflow management
- Industrial control module cooling
- Telecommunications equipment ventilation
- Localized forced-air cooling of circuit assemblies
- Replacement of compatible 40 mm DC axial cooling fans
Purchase Information
We support online purchase of the SUNON KDE1204PKV1 fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON KDE1204PKV1?
KDE1204PKV1 is a SUNON KDE-series MagLev DC brushless axial cooling fan with a 40 x 40 x 20 mm housing.
What is the rated voltage of KDE1204PKV1?
The manufacturer specifies 12 VDC for the documented KDE1204PKV1.MS.A.GN configuration.
What are the dimensions of KDE1204PKV1?
The external dimensions are 40 x 40 x 20 mm, with a nominal mounting-hole spacing of 32 mm.
What is the rated current?
The SUNON MagLev catalog specifies 0.07 A for KDE1204PKV1.MS.A.GN.
What is the power consumption?
The documented MS.A.GN version is rated at 0.8 W.
What is the fan speed?
The manufacturer's rated speed is 7200 RPM for KDE1204PKV1.MS.A.GN.
What airflow does KDE1204PKV1 provide?
SUNON specifies 8.9 CFM airflow for the documented configuration.
What is the static pressure rating?
The manufacturer lists 0.21 inH2O static pressure under the catalog test conditions.
What bearing system is used?
KDE1204PKV1.MS.A.GN uses a SUNON Vapo bearing with MagLev motor technology.
What is the acoustical noise level?
The published acoustical noise rating is 25.5 dB(A) for the documented MS.A.GN configuration.
What are the mounting and wiring specifications?
The SUNON catalog drawing specifies four mounting holes with 4.3 mm nominal diameter, 32 mm hole spacing and UL 1007 26 AWG lead wires approximately 300 mm long. Verify the actual connector termination and polarity before installation.
What should be checked before ordering KDE1204PKV1?
Verify the full model and MS.A.GN configuration, 12 VDC supply, 0.07 A current, 0.8 W power, 40 x 40 x 20 mm dimensions, mounting pattern, wire termination, airflow direction and cooling requirements against the existing equipment. KDE1204PKV2 and KDE1204PKV3 have different performance ratings and should not automatically be substituted.
