24 VDC Brushless Cooling
The SUNON KD2408PTS3 is a 24 VDC brushless axial cooling fan from the KD General Motor series, intended for forced-air cooling in compatible electronic and industrial equipment.
SUNON
SUNON KD2408PTS3 DC Axial Fan 24VDC 80x80x25mm 31CFM
$9.45
Available
PRODUCT GALLERY
01 / 3

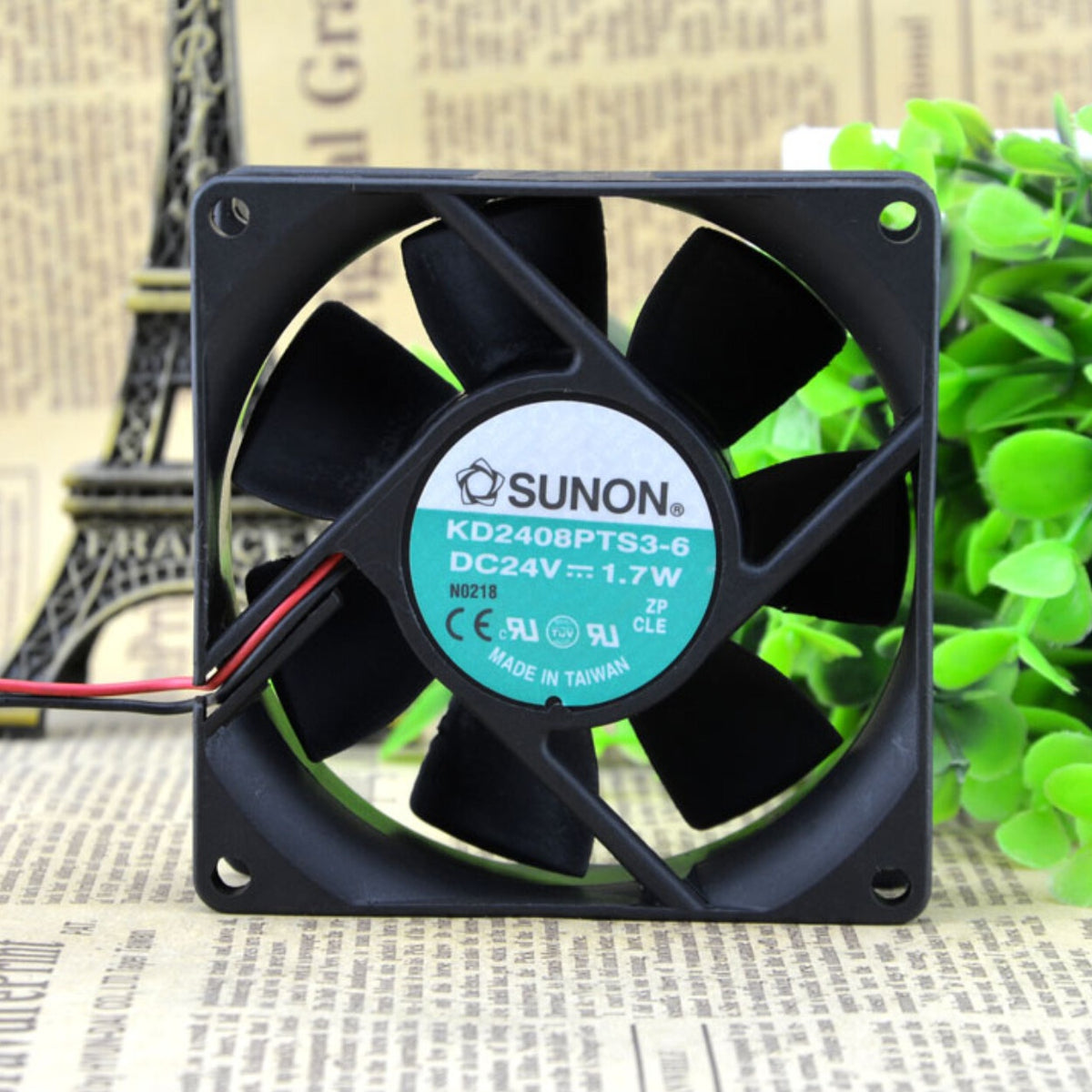

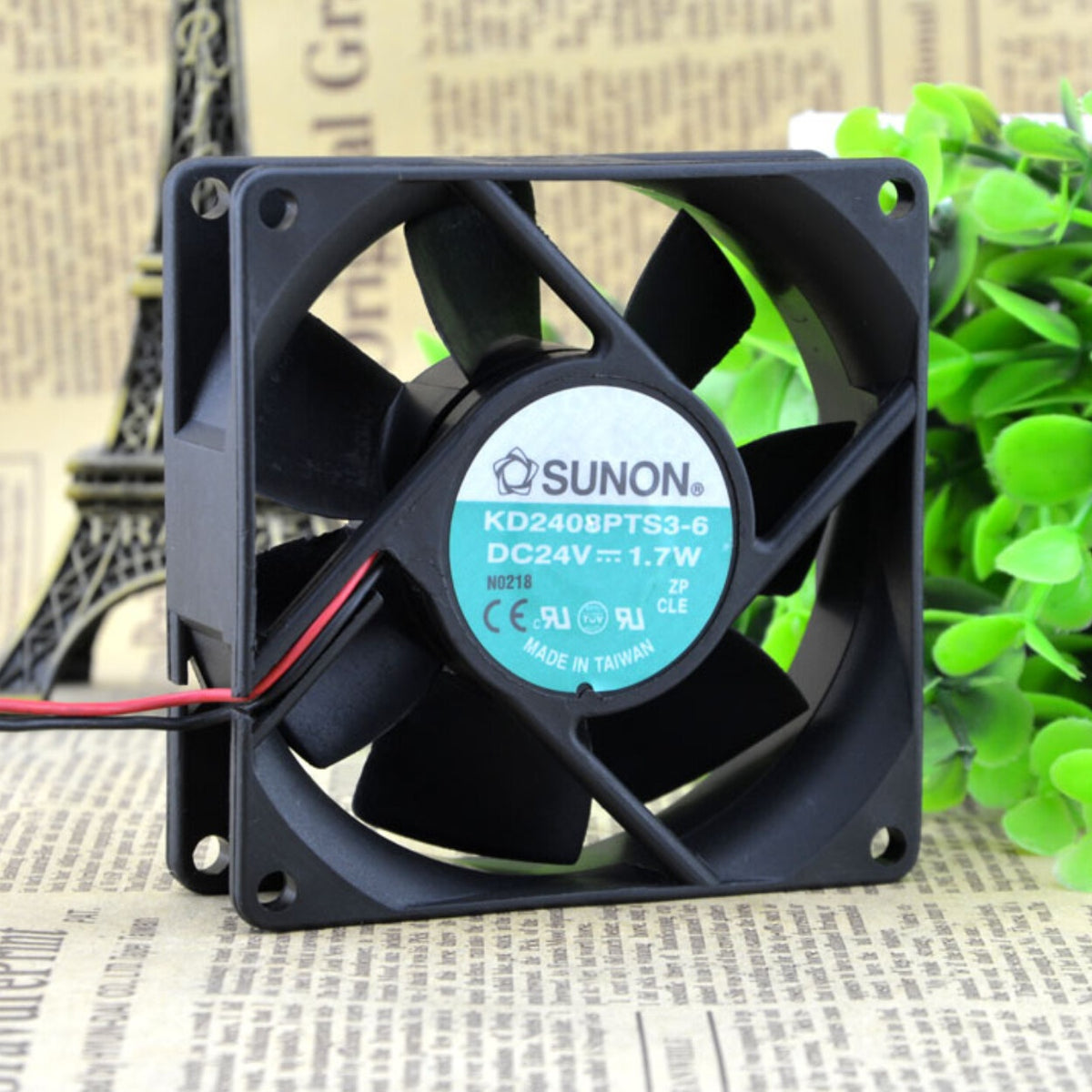

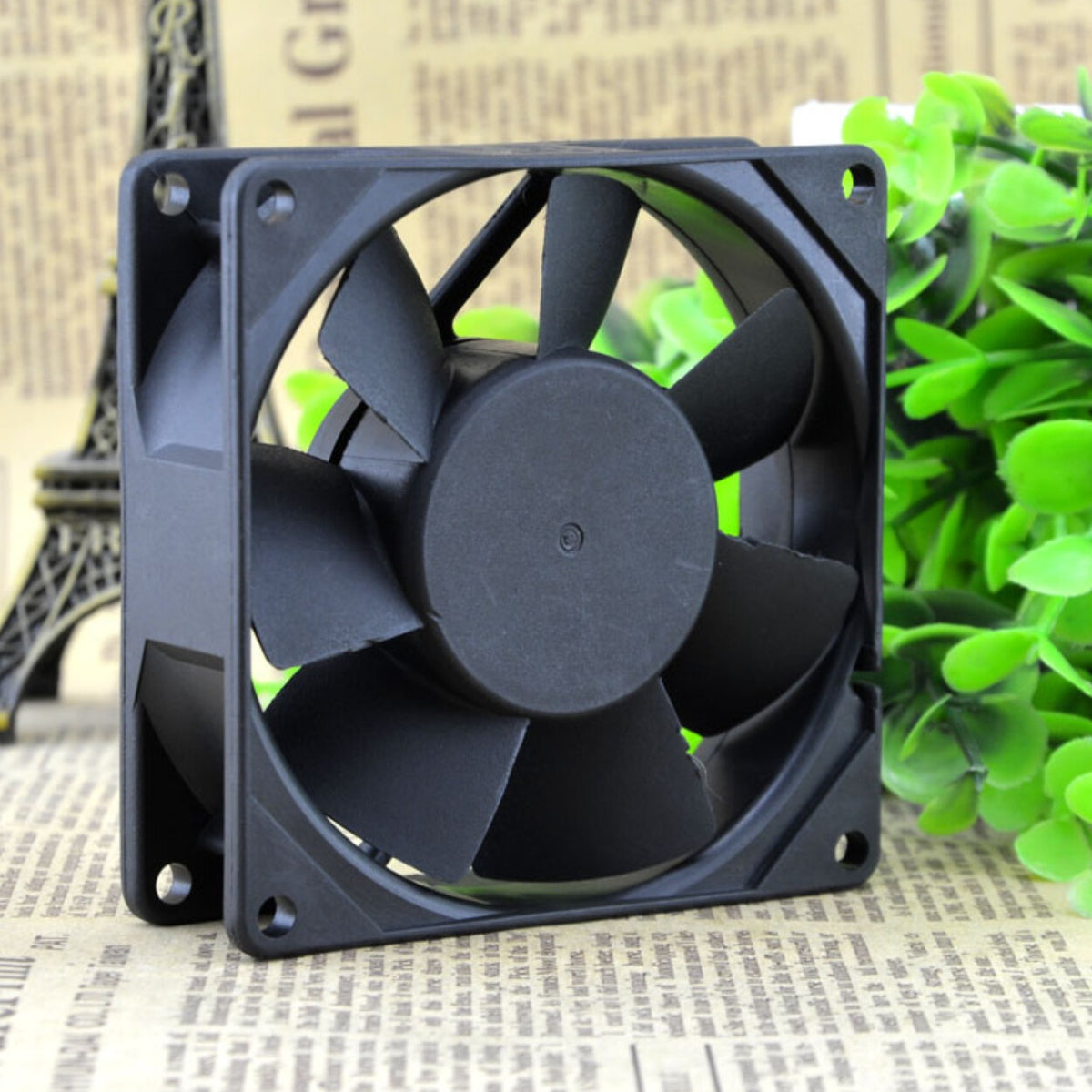

Product images for part identification
SUNON
SUNON KD2408PTS3 DC Axial Fan 24VDC 80x80x25mm 31CFM
PRODUCT PRICE
USD
$9.45
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | KD2408PTS3 |
| Product Category | DC Axial Fan |
| Product Series | KD General Motor Series |
| Documented Part Number | KD2408PTS3 13.A |
| Additional Documented Configuration | KD2408PTS3 13.A.GN |
| Fan Type | DC Brushless Tubeaxial Cooling Fan |
| Dimensions | 80 x 80 x 25 mm |
| Rated Voltage | 24 VDC |
| Catalog Rated Current | 0.05 A in SUNON 2004 catalog; 0.044 A in a later SUNON catalog |
| Catalog Rated Power | 1.2 W in SUNON 2004 catalog; 1.1 W in a later SUNON catalog |
| Rated Speed | 2300 RPM |
| Air Delivery | 31.0 CFM (approximately 52.7 m³/h) |
| Static Pressure | 0.11 inH2O (approximately 27.4 Pa) |
| Acoustical Noise | 26 dB(A) |
| Bearing System | Lubricated Sleeve Bearing |
| Catalog Weight | 80 g in SUNON 2004 catalog; 83 g in a later SUNON catalog |
Key Features
80 x 80 x 25 mm Frame
The fan uses an 80 mm square housing with a nominal 25 mm thickness, providing a defined mechanical format for equipment ventilation and compatible cooling fan replacement.
2300 RPM Rated Speed
SUNON catalog specifications identify a 2300 RPM rated speed for the KD2408PTS3 13.A configuration. Other suffix configurations can have different speed ratings.
31 CFM Air Delivery
The manufacturer specifies 31.0 CFM airflow with a static pressure of 0.11 inH2O, providing a documented performance reference for cooling system design.
Lubricated Sleeve Bearing
KD2408PTS3 13.A uses a lubricated sleeve bearing system. The manufacturer also specifies an acoustical noise level of 26 dB(A) under catalog test conditions.
Configuration-Specific Power Ratings
SUNON's 2004 catalog lists 0.05 A and 1.2 W, while a later manufacturer catalog lists 0.044 A and 1.1 W for the 13.A configuration. Confirm the complete part number and electrical marking before installation.
Applications
- Industrial control cabinet ventilation
- Switching power supply cooling
- Industrial automation equipment thermal management
- Electronic enclosure forced-air cooling
- Network and communication equipment ventilation
- Industrial instrumentation cooling
- Compact inverter and converter ventilation after compatibility verification
- Replacement of compatible 80 mm 24 VDC axial cooling fans
Purchase Information
We support online purchase of the SUNON KD2408PTS3 fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON KD2408PTS3?
KD2408PTS3 is a SUNON KD-series DC brushless axial cooling fan with an 80 x 80 x 25 mm frame and a 24 VDC rated supply.
What is the rated voltage of KD2408PTS3?
SUNON's published catalogs specify 24 VDC for the KD2408PTS3 13.A configuration.
What are the dimensions of KD2408PTS3?
The manufacturer specifies an 80 x 80 x 25 mm fan frame. Confirm the exact mounting-hole pattern and cable clearance against the installed unit.
What is the rated current?
SUNON's 2004 catalog specifies 0.05 A, while a later catalog lists 0.044 A for KD2408PTS3 13.A.GN. Use the electrical marking and specification for the actual configuration.
What is the rated power consumption?
The 2004 manufacturer catalog lists 1.2 W, while another SUNON catalog lists 1.1 W for the 13.A.GN version. These are distinct published specification revisions.
What is the rated fan speed?
The KD2408PTS3 13.A configuration has a documented rated speed of 2300 RPM. The separately listed KD2408PTS3 13.GN version has a 2200 RPM rating.
What airflow does KD2408PTS3 provide?
SUNON specifies 31.0 CFM, approximately 52.7 m³/h, for the KD2408PTS3 13.A configuration.
What is the static pressure rating?
The manufacturer catalog identifies 0.11 inH2O, approximately 27.4 Pa, for the documented 13.A configuration.
What bearing system does KD2408PTS3 use?
SUNON identifies a lubricated sleeve bearing system. This distinguishes KD2408PTS3 from the ball bearing KD2408PTB3 model.
What is the acoustical noise level?
The manufacturer specifies 26 dB(A) for KD2408PTS3 13.A under its published test conditions.
Is KD2408PTS3 interchangeable with KDE2408PTS3-6?
Not automatically. KDE2408PTS3-6 is separately documented with 0.10 A, 2.4 W, 2200 RPM and 29.4 CFM. Those ratings differ from the KD2408PTS3 13.A catalog data, so electrical and cooling compatibility must be confirmed.
What should be checked before ordering KD2408PTS3?
Verify the complete model and suffix, 24 VDC supply, applicable current and power ratings, 80 x 80 x 25 mm dimensions, mounting-hole arrangement, lubricated sleeve bearing, wire polarity, connector termination, airflow direction and cooling performance. KD2408PTS1, KD2408PTS2, KD2408PTB3 and KDE2408PTS3-6 are different variants and should not automatically be substituted.
