Technical Specifications

Key Features

Applications

• Compact industrial control cabinet ventilation
• Switching power supply cooling
• Industrial automation equipment thermal management
• Embedded computing equipment ventilation
• Network and communication equipment cooling
• Electronic instrumentation enclosure airflow management
• Compact power electronics forced-air cooling
• Replacement of compatible 60 mm 24 VDC axial cooling fans

Purchase Information

We support online purchase of the SUNON KD2406PTB1 fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is SUNON KD2406PTB1?

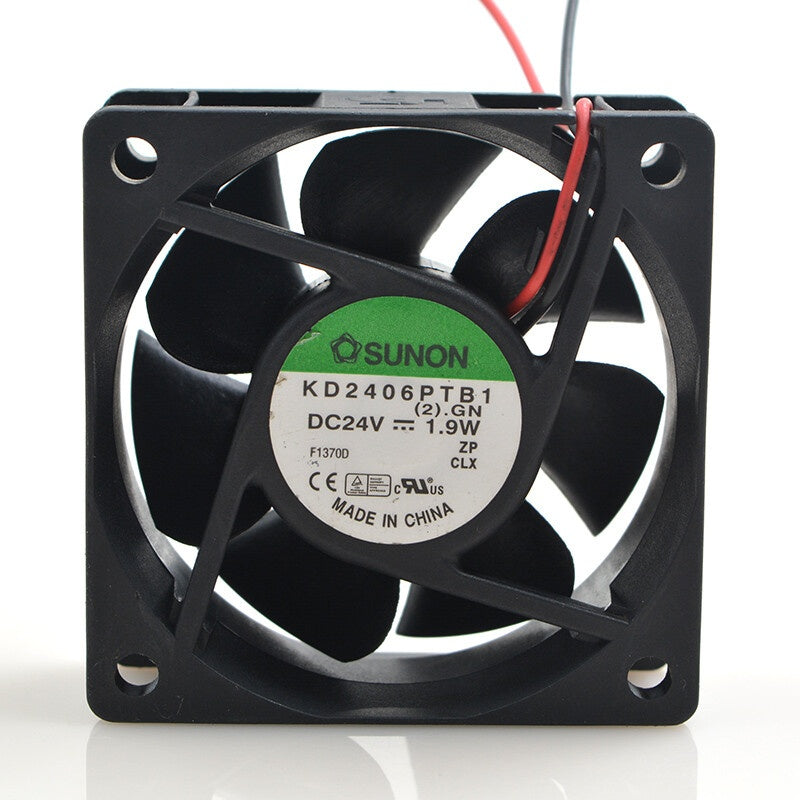

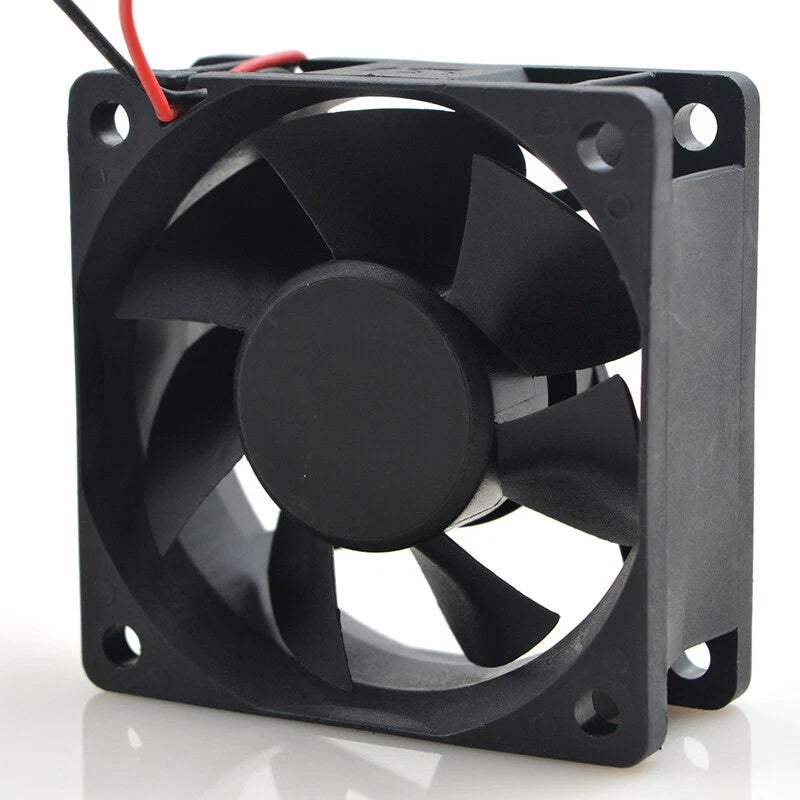

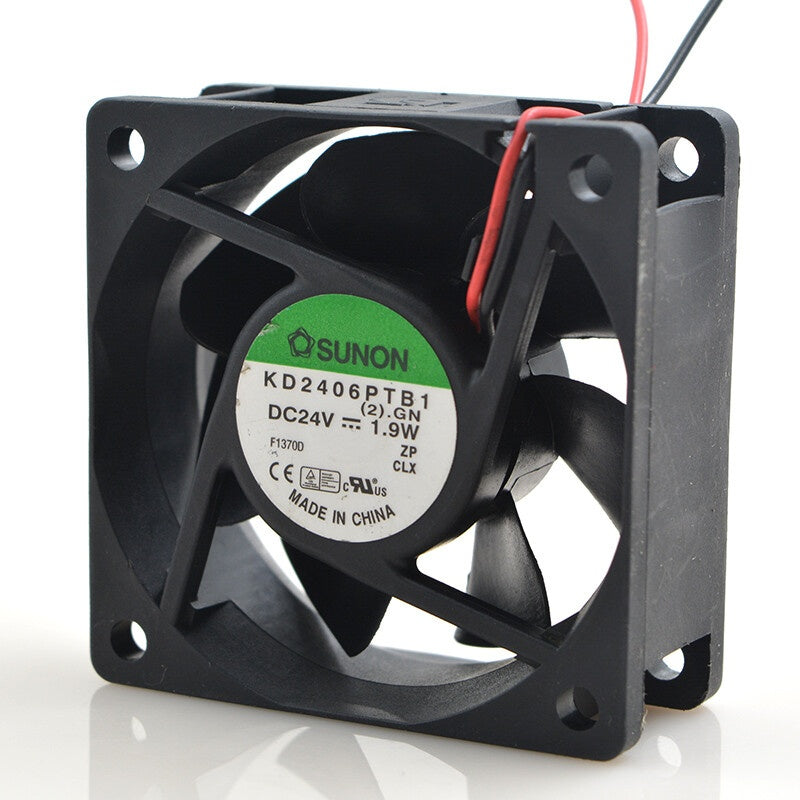

KD2406PTB1 is a SUNON KD-series DC brushless axial cooling fan with a nominal 60 x 60 x 25 mm housing and a rated voltage of 24 VDC.

What is the rated voltage of KD2406PTB1?
The manufacturer specifies 24 VDC, with an operating voltage range of 20.4-27.6 VDC and a starting voltage of 16 VDC.

What are the dimensions of KD2406PTB1?
The nominal dimensions are 60 x 60 x 25 mm. The manufacturer mechanical drawing specifies a frame width of 60 ±0.5 mm, thickness of 25.5 ±0.5 mm and mounting-hole spacing of 50 ±0.3 mm.

What is the rated current?
SUNON manufacturer specification D600036 identifies a rated current of 0.11 A for KD2406PTB1. A separately documented (2).GN configuration has a different current rating.

What is the rated power consumption?
The exact-model manufacturer datasheet specifies 2.6 W. DigiKey lists 2.0 W for the related KD2406PTB1 (2).GN configuration. Confirm which version is required before ordering.

What is the rated fan speed?
The manufacturer specifies 5100 RPM ±400 RPM for KD2406PTB1. The separately documented (2).GN configuration is rated at 4500 RPM.

What airflow does KD2406PTB1 provide?
Manufacturer specification D600036 identifies 22.1 CFM, approximately 37.6 m³/h. The separately listed (2).GN configuration is rated at 23.5 CFM.

What is the static pressure rating?
The manufacturer specifies 0.22 inH2O, approximately 54.8 Pa. The (2).GN distributor configuration has a separately listed pressure rating of 0.21 inH2O.

What bearing system does KD2406PTB1 use?
The manufacturer identifies a precision ball bearing system. This distinguishes the PTB1 fan from related sleeve bearing PTS configurations.

What is the acoustical noise level?
The manufacturer's D600036 specification identifies 34.3 dB(A) under its documented free-air test conditions. The (2).GN distributor configuration is separately listed at 34.5 dB(A).

How is KD2406PTB1 electrically connected?
The manufacturer drawing specifies two DC power leads using UL 1007 26 AWG wire, with red for positive and black for negative. The documented lead length is 300 ±30 mm. Verify the supplied connector and termination before installation.

What should be checked before ordering KD2406PTB1?
Verify the complete SUNON model number and suffix, 24 VDC supply, 0.11 A rated current, 2.6 W power, 60 x 60 x 25 mm nominal dimensions, 50 mm mounting-hole spacing, precision ball bearing, lead polarity, connector termination, airflow direction and cooling performance. KD2406PTB1 (2).GN, KD2406PTB2, KD2406PTS1 and KDE2406PTB1 have separately documented performance characteristics and should not automatically be substituted.
