12 VDC Brushless Cooling
The SUNON KD1209PTS2-6 is a 12 VDC brushless axial cooling fan from the KD series, suitable for forced-air ventilation in compatible electronic equipment and industrial assemblies.
SUNON
SUNON KD1209PTS2-6 DC Axial Fan 12VDC 92x92x25mm 44CFM
$11.51
Available
PRODUCT GALLERY
01 / 3

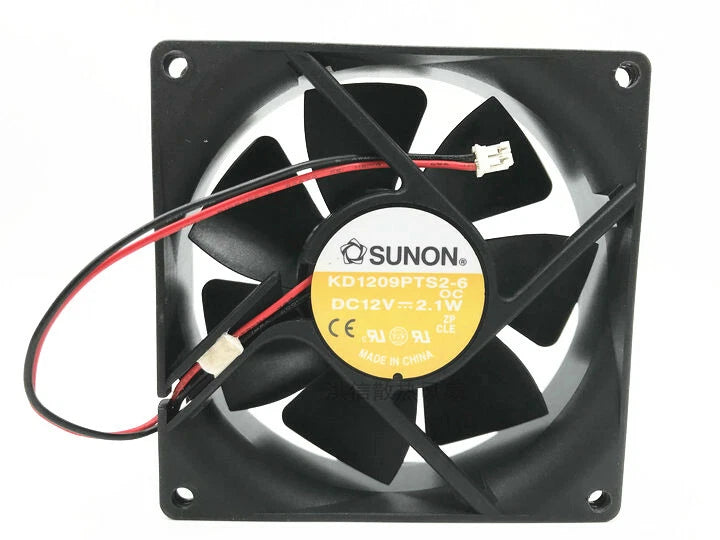

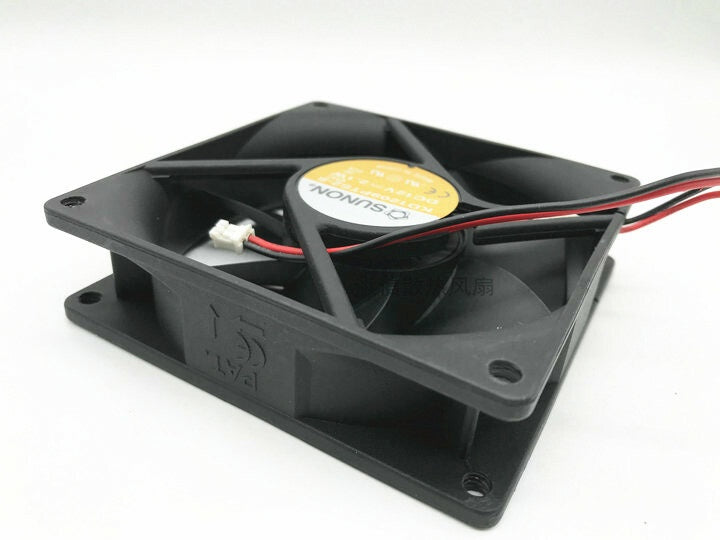

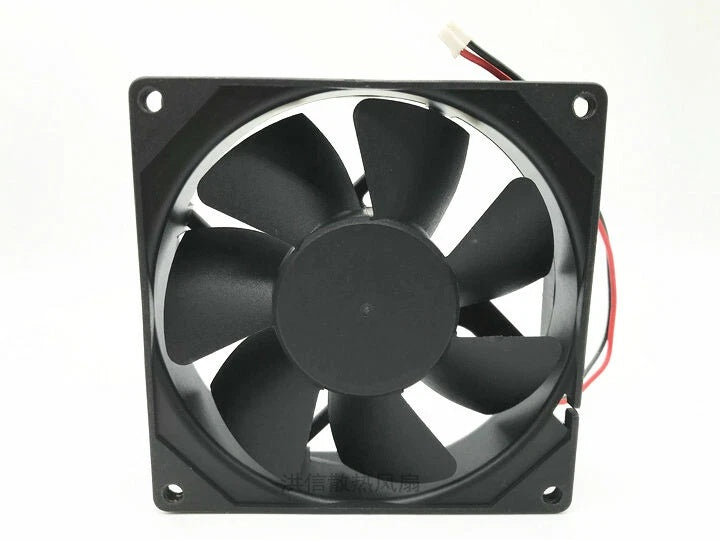

Product images for part identification
SUNON
SUNON KD1209PTS2-6 DC Axial Fan 12VDC 92x92x25mm 44CFM
PRODUCT PRICE
USD
$11.51
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | KD1209PTS2-6 |
| Product Category | DC Axial Fan |
| Product Series | KD General Motor Series |
| Fan Type | DC Brushless Axial Cooling Fan |
| Nominal Dimensions | 92 x 92 x 25 mm |
| Drawing Frame Width | 92 ±0.5 mm |
| Drawing Frame Thickness | 25.5 ±0.5 mm |
| Rated Voltage | 12 VDC |
| Rated Current | 0.16 A |
| Rated Power Consumption | 2.0 W |
| Rated Speed | 2700 RPM |
| Listed Weight | 135 g |
| Lead Wire Specification | UL 1007, 24 AWG |
| Drawing Lead Wire Length | 300 ±50 mm |
| Mounting Hole Center Spacing | 82.5 ±0.3 mm |
| Mounting Hole Diameter | 4.3 mm |
Key Features
92 x 92 x 25 mm Frame
The fan features a nominal 92 mm square housing with a 25 mm depth. Its technical drawing specifies 82.5 mm mounting-hole spacing for compatible equipment installations.
44 CFM Air Delivery
The published specification table identifies 44 CFM airflow and 0.17 inH2O static pressure, providing documented performance references for ventilation and cooling system evaluation.
2700 RPM Rated Speed
The KD1209PTS2-6 has a published rated speed of 2700 RPM, with 0.16 A current and 2.0 W input power at the specified 12 VDC supply.
Sleeve Bearing Construction
The specification identifies a sleeve bearing design, distinguishing KD1209PTS2-6 from ball bearing models such as KD1209PTB2-6. Its published acoustical noise rating is 27 dB(A).
Two-Wire Power Connection
The mechanical drawing identifies red and black DC power leads using UL 1007 24 AWG wiring. Polarity, cable length and the connector termination must be checked before installation.
Applications
- Industrial electrical control cabinet ventilation
- Electronic equipment enclosure cooling
- Compact computer chassis airflow management
- Industrial automation equipment ventilation
- Switching power supply thermal management
- Telecommunications equipment forced-air cooling
- Electronic instrumentation enclosure ventilation
- Replacement of compatible 92 mm 12 VDC axial cooling fans
Purchase Information
We support online purchase of the SUNON KD1209PTS2-6 fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON KD1209PTS2-6?
KD1209PTS2-6 is a SUNON KD-series DC brushless axial cooling fan with a nominal 92 x 92 x 25 mm housing and a 12 VDC rated supply.
What is the rated voltage of KD1209PTS2-6?
The published technical specification identifies a rated voltage of 12 VDC.
What are the dimensions of KD1209PTS2-6?
The nominal external dimensions are 92 x 92 x 25 mm. The mechanical drawing specifies a frame width of 92 ±0.5 mm and a thickness of 25.5 ±0.5 mm.
What is the rated current?
The documented rated current is 0.16 A at 12 VDC for KD1209PTS2-6.
What is the power consumption?
The published technical specification lists 2.0 W input power. This rating applies to the KD1209PTS2-6 model and should not be replaced by values for the unsuffixed KD1209PTS2.
What is the rated fan speed?
The published rated speed is 2700 RPM for KD1209PTS2-6.
What airflow does KD1209PTS2-6 provide?
The specification identifies 44 CFM, approximately 74.8 m³/h, under its published test conditions.
What is the static pressure rating?
The documented static pressure is 0.17 inH2O, equivalent to approximately 42.3 Pa.
What bearing system does KD1209PTS2-6 use?
The technical specification identifies a sleeve bearing. The separately listed KD1209PTB2-6 uses a ball bearing and has different published speed and airflow values.
What is the acoustical noise level?
The published noise rating is 27 dB(A). The sound level in an installed enclosure may differ depending on airflow restrictions and mounting conditions.
How is KD1209PTS2-6 electrically connected?
The technical drawing identifies two DC power leads, with red for positive and black for negative. It specifies UL 1007 24 AWG wiring with a nominal lead length of 300 mm. Confirm the actual connector termination before installation.
What should be checked before ordering KD1209PTS2-6?
Verify the complete SUNON model number including the -6 suffix, 12 VDC supply, 0.16 A current, 2.0 W power consumption, 92 x 92 x 25 mm dimensions, 82.5 mm mounting-hole spacing, sleeve bearing, electrical polarity, cable termination and airflow requirements. KD1209PTS2 without the -6 suffix, KD1209PTS1-6A, KD1209PTS3-6 and KD1209PTB2-6 have different published specifications and should not automatically be substituted.
Need help confirming a model?
Send us your part number and technical requirements.
