12 VDC Brushless Cooling
The SUNON KD1208PTS1 is a 12 VDC brushless axial fan intended to provide forced-air cooling in compatible electrical and electronic equipment.
SUNON

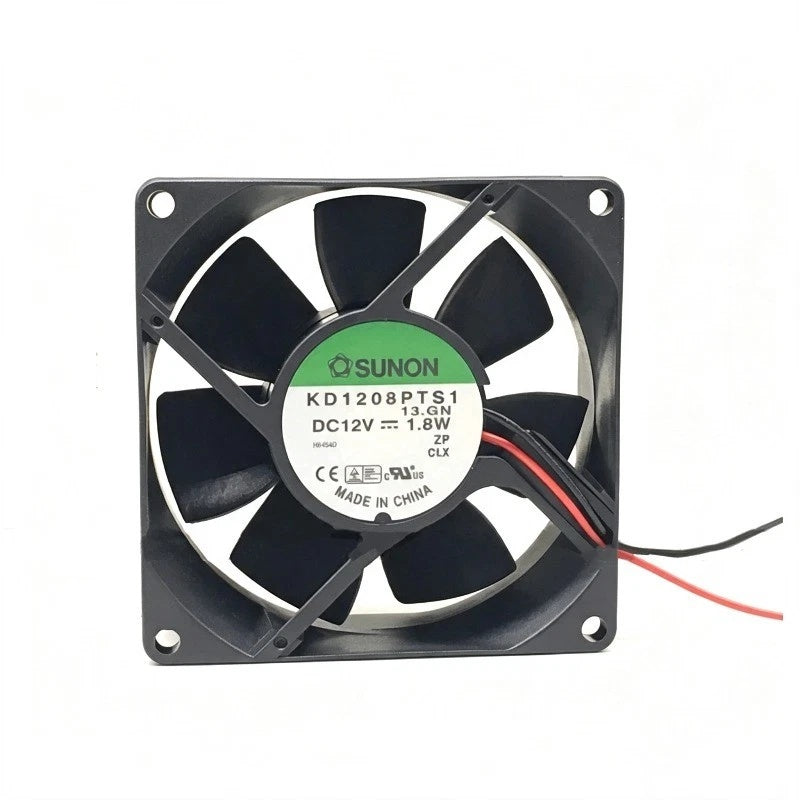

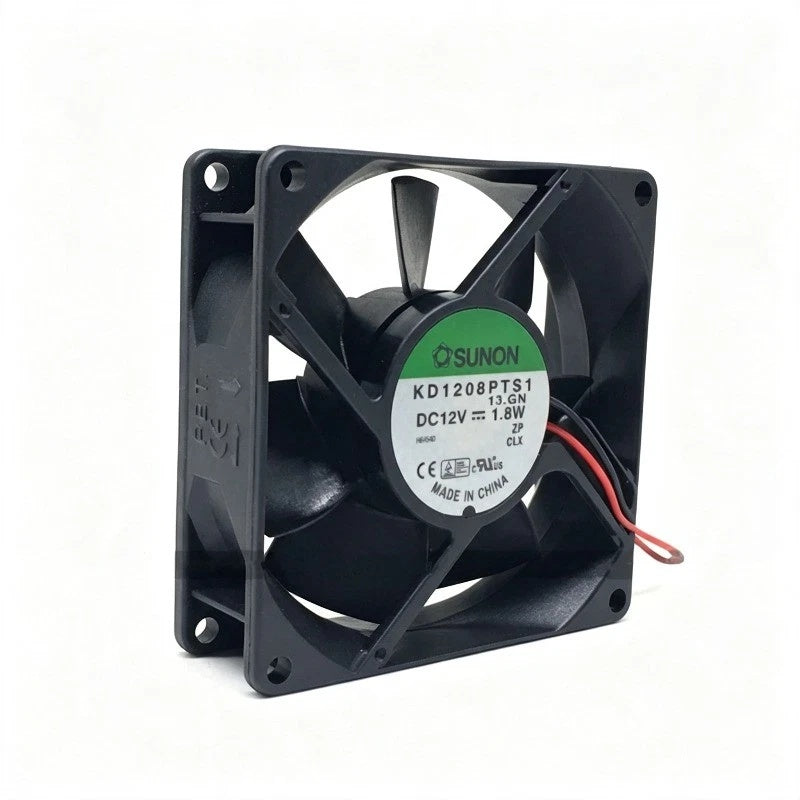

SUNON KD1208PTS1 DC Axial Fan 12VDC 80x80x25mm
$7.31
Available
PRODUCT GALLERY
01 / 9

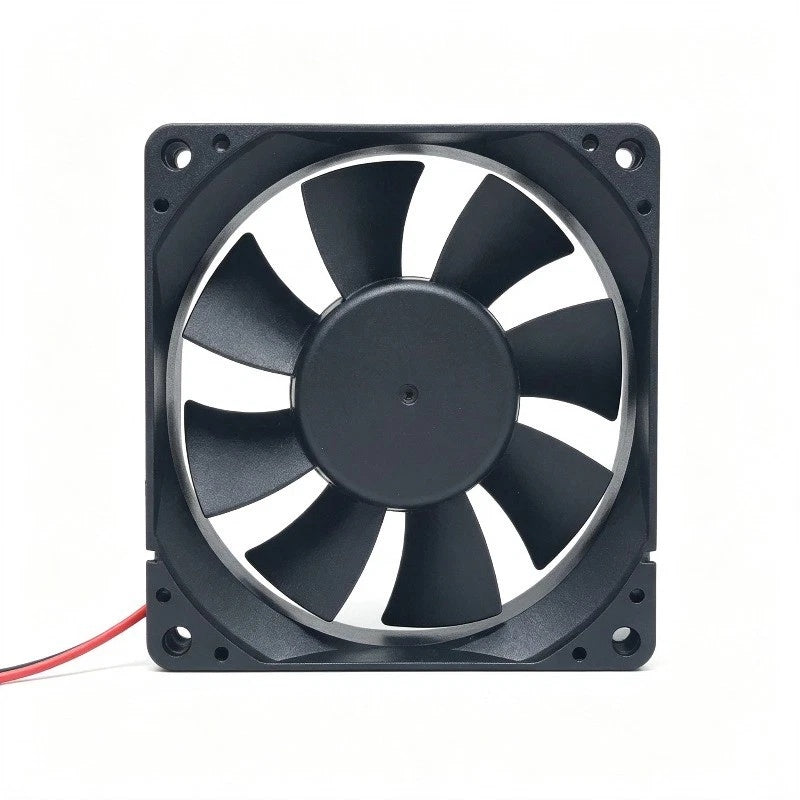

Product images for part identification
SUNON
SUNON KD1208PTS1 DC Axial Fan 12VDC 80x80x25mm
PRODUCT PRICE
USD
$7.31
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | KD1208PTS1 |
| Product Category | DC Axial Fan |
| Product Series | KD |
| Fan Type | DC Brushless Axial Cooling Fan |
| Rated Voltage | 12 VDC |
| Frame Dimensions | 80 x 80 x 25 mm |
| Rated Current in General KD Catalog | 0.16 A |
| Power Consumption in General KD Catalog | 1.9 W |
| Speed in General KD Catalog | 3000 RPM |
| Airflow in General KD Catalog | 40 CFM |
| Static Pressure in General KD Catalog | 0.18 inH2O |
| Acoustical Noise in General KD Catalog | 33 dB(A) |
| Bearing System | Lubricated Sleeve Bearing |
| Documented Variant | KD1208PTS1 H |
| KD1208PTS1 H Rated Current | 0.20 A |
| KD1208PTS1 H Rated Speed | 2850 RPM ±300 RPM |
| KD1208PTS1 H Airflow | 37.5 CFM |
| Electrical Termination | 2 Wire Leads for Documented Variants |
Key Features
80 x 80 x 25 mm Frame
The square 80 mm housing with a 25 mm depth provides a defined mechanical format for equipment cooling and replacement assessments.
Sleeve Bearing Construction
SUNON documents a lubricated sleeve bearing system for KD1208PTS1 configurations, supporting rotation of the axial cooling impeller.
Documented Airflow Performance
The general SUNON KD catalog identifies 40 CFM airflow at 3000 RPM for KD1208PTS1. The separately specified H version is rated at 37.5 CFM and 2850 RPM.
Two-Wire DC Connection
Documented configurations use two electrical leads for DC power. Verify polarity, wire length and connector termination before installation.
Model-Specific Electrical Ratings
Published SUNON documentation identifies different current and power values for KD1208PTS1 configurations. Select electrical specifications using the complete model and part-number suffix.
Applications
- Industrial electronic equipment cooling
- Electrical control cabinet ventilation
- Computer enclosure airflow management
- Electronic power supply ventilation
- Network equipment cooling assemblies
- Forced-air cooling of electronic circuit assemblies
- Maintenance of DC axial cooling systems
- Replacement of compatible 80 mm cooling fans
Purchase Information
We support online purchase of the SUNON KD1208PTS1 fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON KD1208PTS1?
KD1208PTS1 is a SUNON KD-series DC brushless axial cooling fan with an 80 x 80 x 25 mm frame.
What is the rated voltage of KD1208PTS1?
The published rated supply voltage is 12 VDC.
What are the dimensions of KD1208PTS1?
The documented frame dimensions are 80 x 80 x 25 mm.
What is the rated current of KD1208PTS1?
The general SUNON catalog lists 0.16 A, while the KD1208PTS1 H specification lists 0.20 A. Match the complete version before selecting a power supply.
What is the power consumption?
The general KD catalog specifies 1.9 W for KD1208PTS1. The documented H configuration specifies 2.4 W rated power.
What is the fan speed?
The general SUNON catalog lists 3000 RPM for KD1208PTS1. The H configuration has a specified speed of 2850 RPM with a tolerance of ±300 RPM.
What is the airflow rating?
The general KD catalog lists 40 CFM, while the documented H configuration specifies 37.5 CFM. Use the performance specification matching the complete variant.
What is the static pressure rating?
The general KD catalog lists 0.18 inH2O for KD1208PTS1, while the H specification identifies 0.17 inH2O.
What bearing system is used?
SUNON documents a lubricated sleeve bearing system for KD1208PTS1.
How many wires does the fan use?
The documented KD1208PTS1 configurations use two electrical leads. Confirm the exact connection arrangement before installation.
What is the operating temperature range?
The KD1208PTS1 H specification identifies an operating temperature range of -10°C to +70°C.
What should be checked before ordering KD1208PTS1?
Verify the full model designation and suffix, 12 VDC supply, current and power ratings, 80 x 80 x 25 mm dimensions, mounting geometry, two-wire connection, airflow requirements and compatibility with the existing equipment.
Need help confirming a model?
Send us your part number and technical requirements.
