Technical Specifications

Key Features

Applications

• Intel NUC DC3217IYE cooling fan replacement
• Compatible Intel NUC mini PC cooling systems
• Compact computer processor heatsink ventilation
• Dell compact computer cooling assemblies after part-number verification
• Low-profile embedded computer thermal management
• Mini PC and small-form-factor computer maintenance
• Compact electronics requiring directed blower airflow
• Replacement of compatible 5 VDC four-wire centrifugal cooling blowers

Purchase Information

We support online purchase of the SUNON GB0555PDV1-A fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

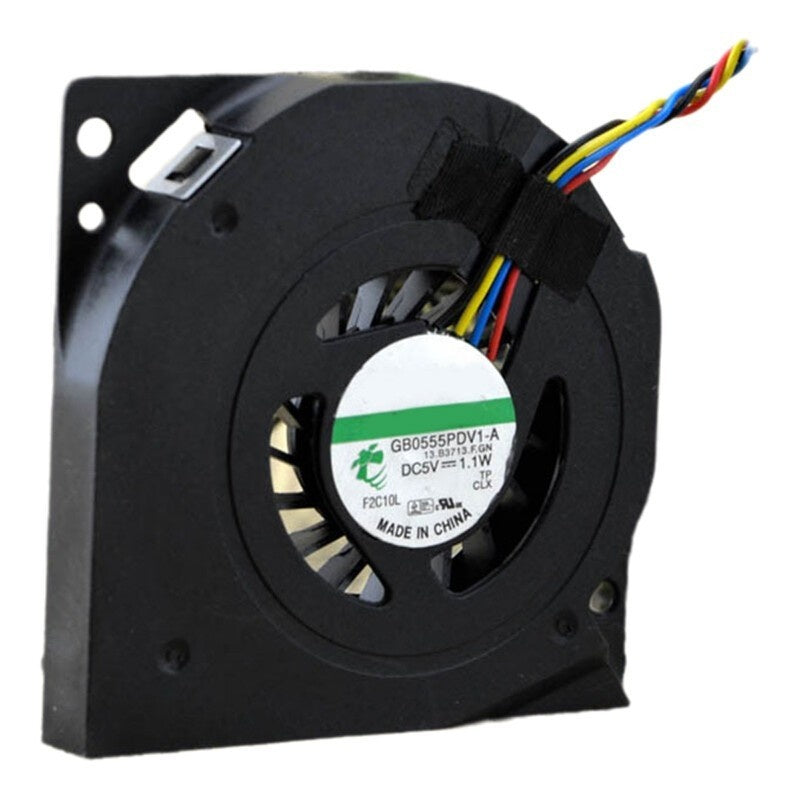

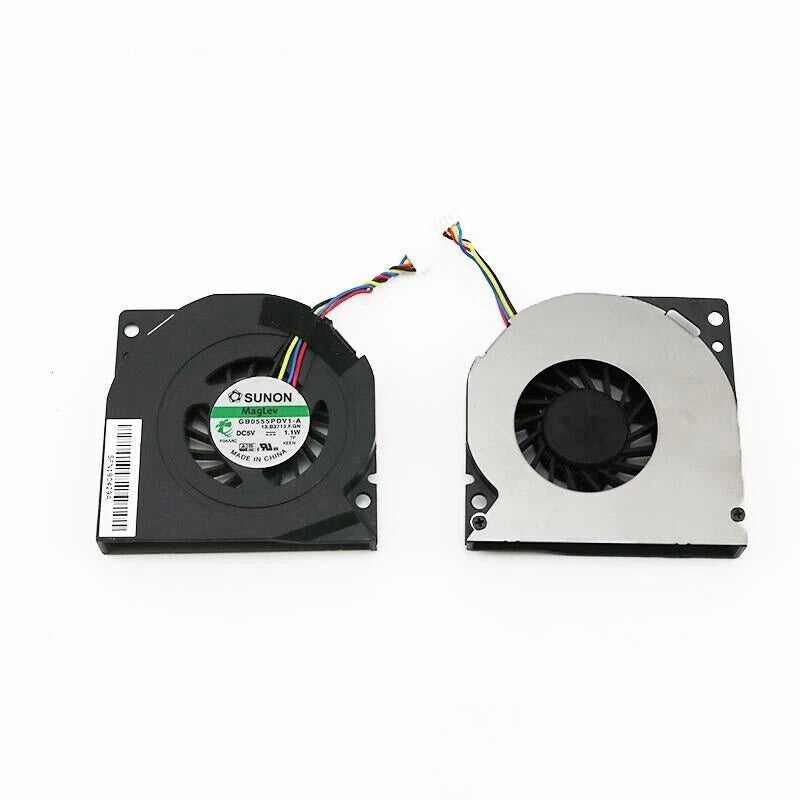

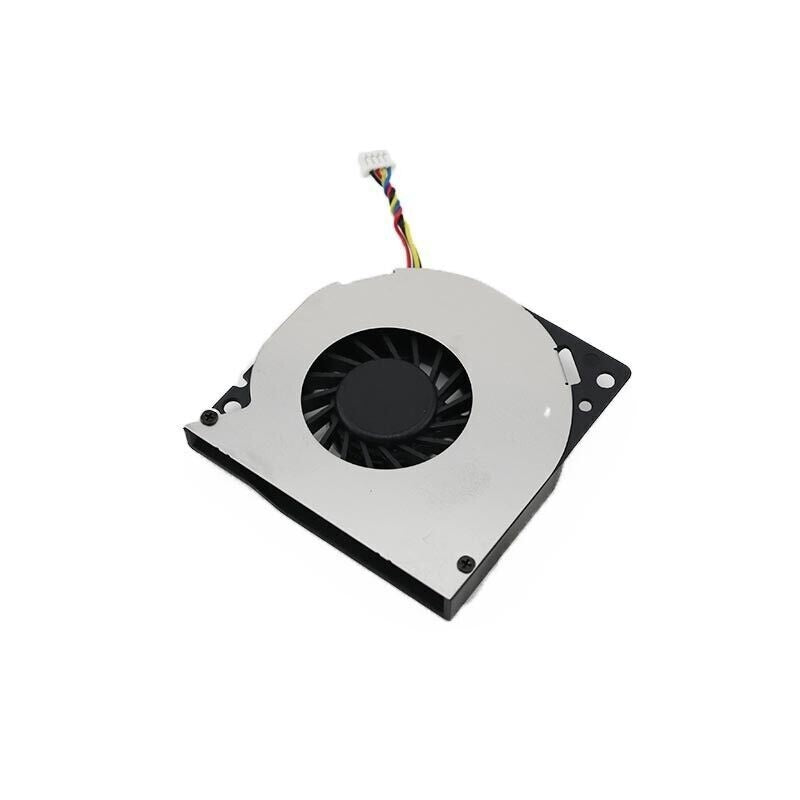

What is SUNON GB0555PDV1-A?
GB0555PDV1-A is a SUNON DC brushless centrifugal cooling blower documented in compact computer and Intel NUC replacement fan applications.

What is the rated voltage of GB0555PDV1-A?
The documented configurations use a 5 VDC rated power supply.

What is the rated power consumption?
Replacement specifications identify 1.1 W for the GB0555PDV1-A.13.B3713.F.GN configuration.

What is the rated current?
Several suppliers list 0.22 A for the 1.1 W version, while other listings and fan references specify 0.21 A. Confirm the electrical marking on the exact fan supplied.

Is GB0555PDV1-A an axial fan or a blower?
It is documented as a centrifugal blower in multiple replacement fan listings. This design directs air through a side outlet rather than producing conventional straight-through axial airflow.

What are the dimensions of GB0555PDV1-A?
Compact replacement listings identify a 55 mm class fan with dimensions of approximately 55 x 55 x 8 mm. A separate supplier specification gives a 20 mm depth, so the actual blower outline and thickness must be confirmed against the existing assembly.

How many wires does GB0555PDV1-A have?
The documented 13.B3713.F.GN and 13.B3442.F.GN configurations use four wires and a four-pin connector. Connector housings and cable lengths can differ.

Does GB0555PDV1-A support PWM speed control?
The documented four-wire 13.B3713.F.GN configuration is listed with PWM speed control and tachometer feedback. Verify the electrical signals and connector pin assignments for the exact version.

What bearing system does GB0555PDV1-A use?
The 13.B3713.F.GN configuration is listed with SUNON MagLev Vapo bearing technology. Verify the bearing specification for other suffix configurations.

Is GB0555PDV1-A compatible with Intel NUC computers?
Yes, replacement suppliers identify the 13.B3713.F.GN configuration for Intel NUC DC3217IYE and some additional compact computer assemblies. Compatibility is not universal across all NUC models.

What is the difference between 13.B3713.F.GN and 13.B3442.F.GN?
Both complete part numbers appear in SUNON GB0555PDV1-A replacement listings, but they are associated with different equipment references and wiring assemblies. Confirm connector, cable length, mounting geometry and performance before substitution.

What should be checked before ordering GB0555PDV1-A?
Verify the complete model and suffix, 5 VDC supply, rated current, 1.1 W power, blower housing dimensions, mounting points, side-outlet orientation, four-wire connector, PWM and tachometer pin assignments, cable length and exact computer model. Matching the base fan number alone does not guarantee interchangeability.
