Technical Specifications

Key Features

Applications

• XMG FUSION 15 L19 laptop cooling fan maintenance
• Eluktronics MAG-15 compatible thermal assembly replacement
• EVOO Gaming LP5 fan replacement after part-number verification
• Selected Schenker XMG NEO 15 cooling systems
• Selected XMG NEO 17 laptop cooling assemblies
• Compatible Tongfang GK5CN6Z and GK5CQ7Z chassis cooling
• Selected Medion Erazer gaming laptop thermal maintenance
• Replacement of matching SUNON EG50060S1-C380-S9A four-pin blowers

Purchase Information

We support online purchase of the SUNON EG50060S1-C380-S9A fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods. When requesting this model, please provide the complete fan part number, laptop chassis reference and any connector or cooling assembly requirements to help identify the correct configuration.

Frequently Asked Questions

What is SUNON EG50060S1-C380-S9A?

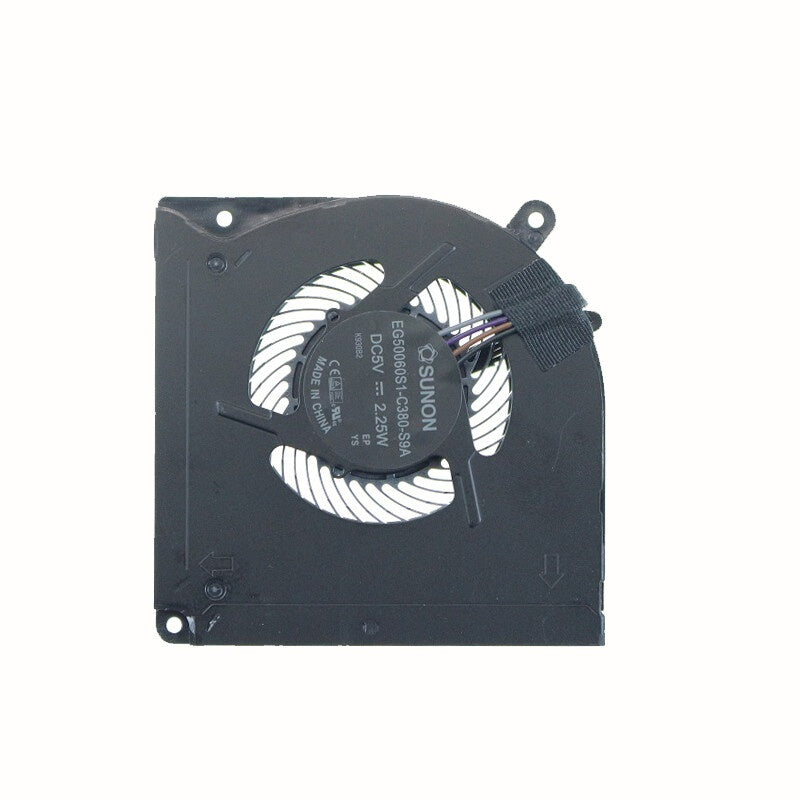

EG50060S1-C380-S9A is a SUNON DC centrifugal laptop cooling blower. Multiple replacement-part suppliers identify it as a 5 VDC, 2.25 W cooling fan with four wires and a four-pin connector.

What is the rated voltage of EG50060S1-C380-S9A?
The voltage is listed as 5 VDC by multiple exact-model suppliers. The operating voltage range and starting voltage were not independently verified in a manufacturer datasheet for the complete C380-S9A configuration.

What is the rated power consumption?
Multiple exact-model suppliers specify 2.25 W at 5 VDC. Some laptop owners have reported replacement units with the same model number but a 2.5 W label. Compare the electrical label on the actual fan and confirm the laptop's power requirements before substituting a different-rated unit.

What is the rated current?
Dividing the commonly listed 2.25 W power by 5 VDC gives approximately 0.45 A. This is a calculated value rather than an independently verified SUNON current specification. A 2.5 W unit would correspond to 0.50 A at 5 VDC if those values represent its operating electrical rating.

What are the dimensions of EG50060S1-C380-S9A?
A specialist parts supplier describes the bare fan as a 50 mm unit. However, this does not establish the complete centrifugal housing dimensions. The assembled laptop fan may include an irregularly shaped casing, mounting tabs and a directed exhaust outlet. Confirm the housing dimensions against the installed part.

Is EG50060S1-C380-S9A an axial fan or a centrifugal blower?
It is a laptop centrifugal cooling blower with a shrouded fan housing and directed outlet. Its mechanical arrangement is not equivalent to a conventional square-frame axial fan of the same nominal size class.

What is the rated fan speed?
An independently verified SUNON RPM rating for the complete EG50060S1-C380-S9A configuration was not located. Fan speeds published for other EG50060S1 suffixes should not be assigned to this model.

What are the airflow and static pressure ratings?
An exact-model SUNON airflow rating in CFM and maximum static pressure specification were not independently located. These parameters depend on the fan and housing configuration, so values from other EG-series versions should not be used without technical verification.

What bearing system does EG50060S1-C380-S9A use?
A manufacturer bearing specification for the exact C380-S9A configuration was not independently verified. The bearing design should be confirmed from an applicable SUNON technical document or the complete supplied assembly.

How is EG50060S1-C380-S9A electrically connected?
Commercial exact-model listings specify four wire leads and a four-pin connector. The individual power, ground, monitoring and control pin assignments have not been independently verified for this customer configuration. Do not connect it using the pinout of a different EG-series fan without checking compatibility.

Which laptops use EG50060S1-C380-S9A?
The model is associated with the XMG FUSION 15 L19, Eluktronics MAG-15 and Tongfang-based gaming laptops. Replacement suppliers also list selected XMG NEO, Medion Erazer and other systems. EVOO Gaming LP5 compatibility has been reported by users. The related THER7GK5C6-1411 fan part number is an important cross-reference, but compatibility must be confirmed for the specific laptop revision.

What should be checked before ordering EG50060S1-C380-S9A?
Confirm the complete SUNON EG50060S1-C380-S9A model designation, 5 VDC supply, 2.25 W electrical rating or the actual label rating, four-wire configuration, four-pin connector, connector orientation, cable length, housing shape, mounting-tab locations and air outlet direction. Check the THER7GK5C6-1411 reference and the laptop chassis identification. Distinguish a standalone fan from a complete fan-and-heatsink assembly. Other models such as EG75070S1-C450-S9A or EG50060S1-C331-S9A may differ in physical dimensions, electrical ratings or performance and should not automatically be substituted. XMG support specifically advises against replacing the specified laptop fans with a different type without supported compatibility information.
