5 VDC Brushless Cooling
The SUNON EG50040S1-CE30-S9A is a compact DC cooling blower identified by multiple replacement-part suppliers with a 5 VDC power supply and a 2.25 W electrical rating.
SUNON
SUNON EG50040S1-CE30-S9A DC Blower Fan 5VDC 2.25W 4-Pin
$20.57
Available
PRODUCT GALLERY
01 / 2

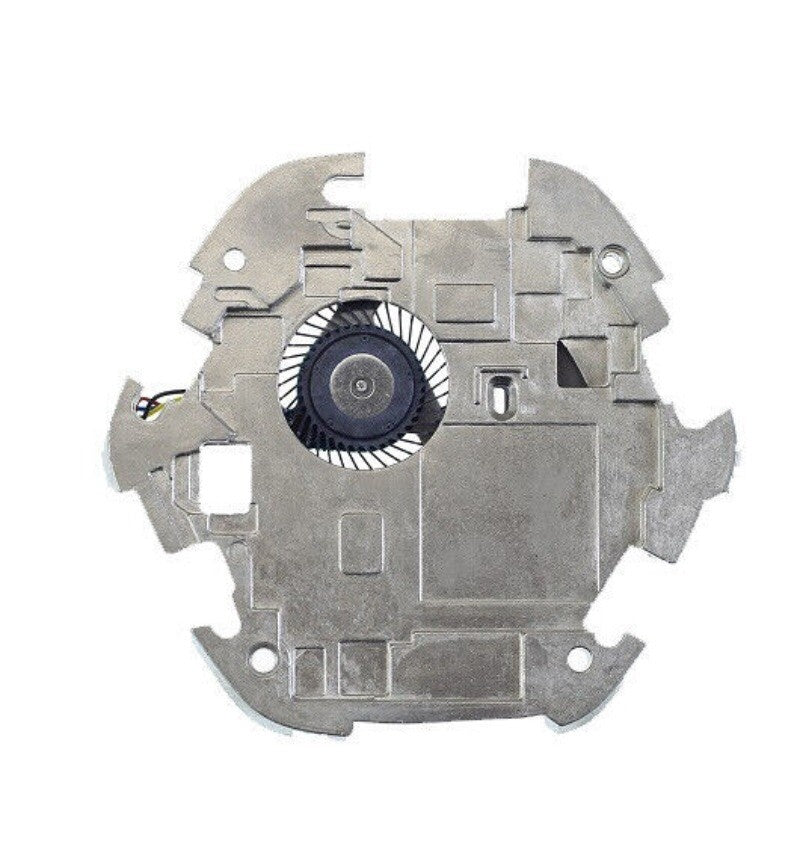

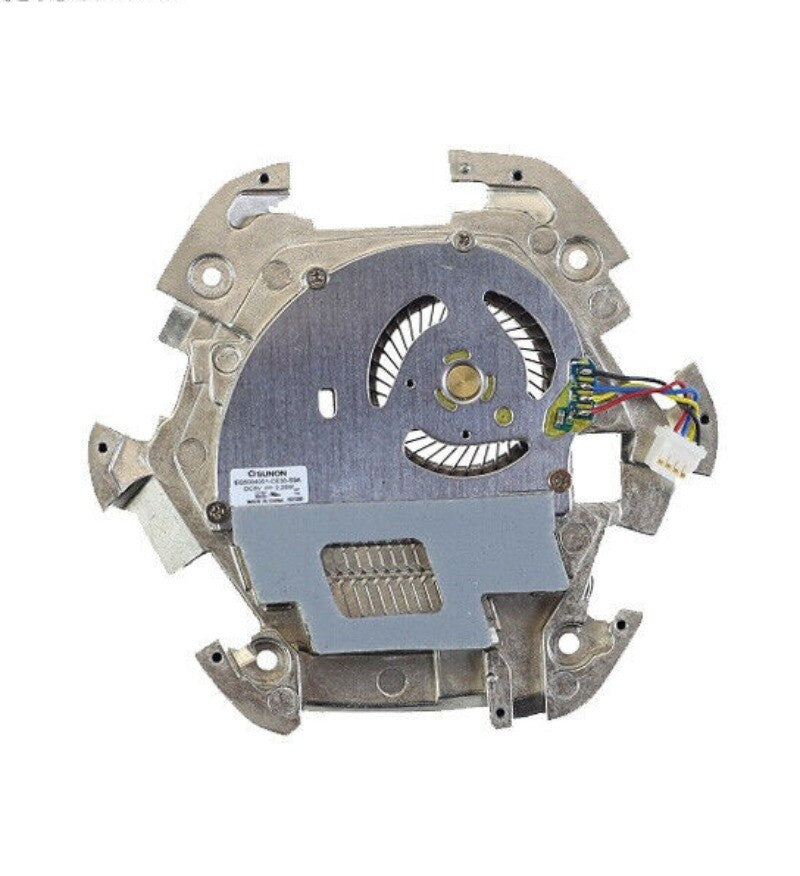

Product images for part identification
SUNON
SUNON EG50040S1-CE30-S9A DC Blower Fan 5VDC 2.25W 4-Pin
PRODUCT PRICE
USD
$20.57
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | EG50040S1-CE30-S9A |
| Product Category | DC Centrifugal Blower Fan |
| Product Series | EG Series |
| Product Type | Compact DC Brushless Equipment Cooling Blower |
| Motor Technology | DC Brushless Motor; Exact Internal Motor Design Not Independently Verified |
| Airflow Design | Shrouded Centrifugal Blower with Directed Air Outlet |
| Rated Voltage | 5 VDC According to Multiple Exact-Model Replacement-Part Listings |
| Supplier-Listed Rated Power | 2.25 W |
| Calculated Electrical Current | 0.45 A (450 mA), Calculated as 2.25 W Divided by 5 VDC |
| Connector Type | 4-Pin Connector |
Key Features
Directed Centrifugal Airflow
The fan uses a shrouded blower configuration for moving air through compatible compact equipment cooling passages. Its specific outlet shape and mounting arrangement must match the existing assembly.
Four-Wire Connection
Exact-model listings identify four electrical leads and a four-pin connector. The supplied connector orientation, cable routing and electrical pin assignments should be confirmed before installation.
2.25 W Published Power Rating
The model is widely listed at 2.25 W and 5 VDC. These ratings correspond mathematically to approximately 0.45 A, although the manufacturer's exact current specification remains unverified.
TA001-18001Y Parts Cross-Reference
Replacement suppliers associate EG50040S1-CE30-S9A with the TA001-18001Y part reference. This helps buyers compare cooling assemblies while checking the exact housing and connector requirements.
Compact Equipment Replacement
Commercial listings classify the model as a laptop CPU cooling fan, while device-owner reports identify related CE30 fan assemblies in Plume SuperPod units. Compatibility depends on the installed hardware revision.
Applications
- Compatible laptop CPU cooling fan assemblies
- Plume SuperPod cooling fan replacement after model verification
- Compact networking device thermal management
- Equipment cooling assemblies referencing TA001-18001Y
- Low-voltage electronic equipment requiring directed blower airflow
- Compact embedded computing equipment ventilation
- Maintenance of compatible four-pin 5 VDC cooling systems
- Replacement of matching SUNON EG50040S1-CE30-S9A blower fans
Purchase Information
We support online purchase of the SUNON EG50040S1-CE30-S9A fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods. Please specify the complete fan model, equipment model, connector details and whether a standalone fan or a complete cooling assembly is required.
Frequently Asked Questions
What is SUNON EG50040S1-CE30-S9A?
EG50040S1-CE30-S9A is a SUNON compact DC cooling blower. Multiple exact-model replacement listings describe a 5 VDC, 2.25 W fan with four wires and a four-pin connector.
What is the rated voltage of EG50040S1-CE30-S9A?
Commercial exact-model references identify a 5 VDC supply. The complete manufacturer's operating voltage range and starting voltage specifications were not independently located.
What is the rated power consumption?
The model is listed at 2.25 W by several replacement-part suppliers. This is a published commercial rating rather than a separately verified electrical value from a publicly available SUNON specification for CE30-S9A.
What is the rated current?
The published 2.25 W rating divided by the 5 VDC supply gives approximately 0.45 A, or 450 mA. This is a calculated reference value and should not be interpreted as a confirmed SUNON rated or maximum current.
What are the dimensions of EG50040S1-CE30-S9A?
An online marketplace identifies a 45 mm fan diameter attribute, but this is not sufficient to establish the full mechanical dimensions of the assembled centrifugal blower. The complete housing may include a shaped air duct, mounting tabs and cable routing features. Measure the existing fan assembly or obtain a matching technical drawing before replacement.
Is EG50040S1-CE30-S9A an axial fan or a centrifugal blower?
The replacement product is a compact shrouded blower used in equipment cooling assemblies. Its installation requirements differ from a conventional square-frame axial fan. Exact mounting and airflow orientation should be checked against the existing assembly.
What is the rated fan speed?
A verified RPM rating for the complete EG50040S1-CE30-S9A configuration was not independently located. Ratings from other SUNON EG50040S1 variants should not be substituted without a manufacturer specification.
What are the airflow and static pressure ratings?
A manufacturer airflow rating in CFM and maximum static pressure rating for CE30-S9A were not independently verified. Thermal replacement selection should therefore prioritize the exact fan assembly and compatible equipment part numbers instead of assuming specifications from related variants.
What bearing system does EG50040S1-CE30-S9A use?
Some marketplace product attributes describe the bearing as fluid type, but an individual SUNON manufacturer datasheet confirming the bearing construction for the complete CE30-S9A configuration was not located. Confirm the actual bearing design if it is a required purchasing parameter.
How is EG50040S1-CE30-S9A electrically connected?
Multiple exact-model listings identify four wire leads and a four-pin connector. The individual supply, ground, speed monitoring and speed-control pin assignments were not independently verified. A four-pin connection alone does not establish a universal PWM pinout, so connector wiring should be matched to the existing equipment before installation.
Can EG50040S1-CE30-S9A replace a Plume SuperPod cooling fan?
Some Plume SuperPod owners report using or finding EG50040S1-CE30 family fans inside their devices. A verified buyer review also reports replacing a noisy SuperPod fan using an EG50040S1-CE30-S9A listing. Other owners report an EG50060S1-CE30-S9A variant. These reports do not establish compatibility with every SuperPod version. Verify the installed fan label, housing, mounting and connector before choosing a replacement.
What should be checked before ordering EG50040S1-CE30-S9A?
Confirm the complete SUNON EG50040S1-CE30-S9A model number, 5 VDC supply, 2.25 W listed power rating, four-wire electrical connection, four-pin connector type, cable length, connector orientation, blower housing dimensions, mounting-hole locations and directed air outlet. The part reference TA001-18001Y appears in commercial replacement listings and may help identify a compatible cooling assembly. Related EG50040S1-CN60-S9A and EG50040S1-CJ40-S9A models are grouped with CE30-S9A by some sellers, but electrical and mechanical interchangeability was not independently established. Confirm whether the purchase includes the fan alone or an attached heatsink assembly, and compare the actual installed equipment part before substitution.
Need help confirming a model?
Send us your part number and technical requirements.
