Technical Specifications

Key Features

Applications

• HP EliteDesk 800 G1 Desktop Mini CPU cooling fan replacement
• HP ProDesk 600 G1 Desktop Mini cooling system maintenance
• Selected HP ProDesk 400 G1 Mini cooling assemblies after part-number verification
• Selected HP EliteDesk 705 G1 Mini cooling assemblies after compatibility verification
• Compatible ASUS PG27UQ monitor cooling fan replacement
• Electronic display equipment forced-air ventilation
• Compact desktop computer processor thermal management
• Replacement of compatible SUNON EF70151S1-C010-S9A cooling blowers

Purchase Information

We support online purchase of the SUNON EF70151S1-C010-S9A fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is SUNON EF70151S1-C010-S9A?

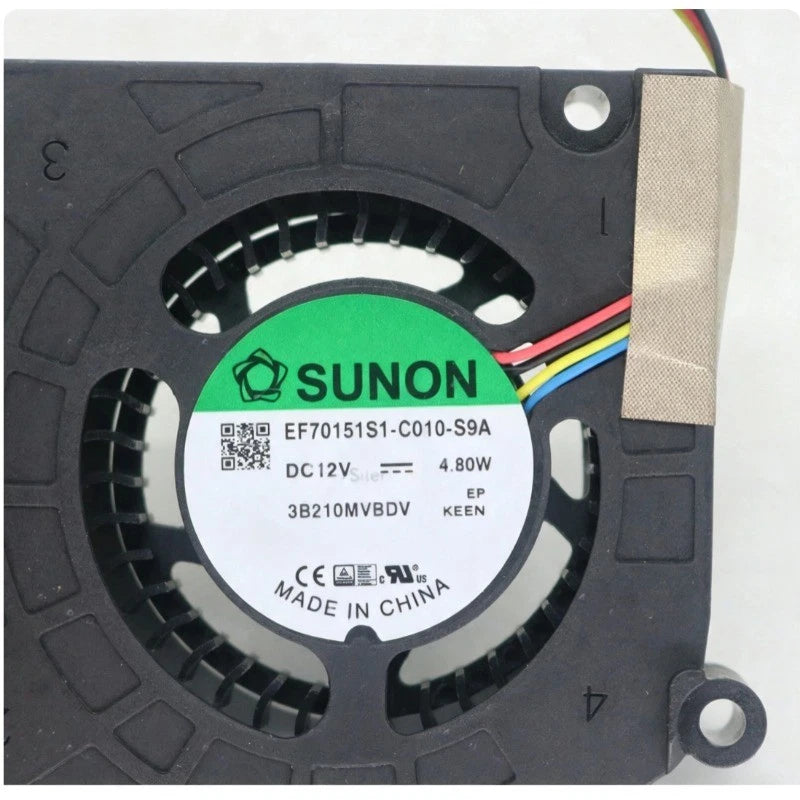

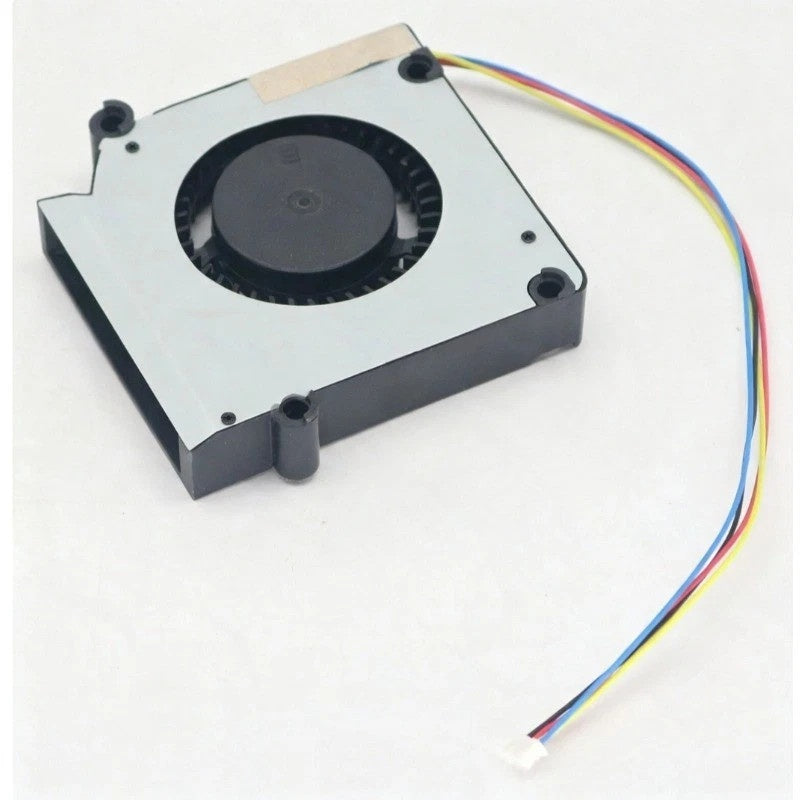

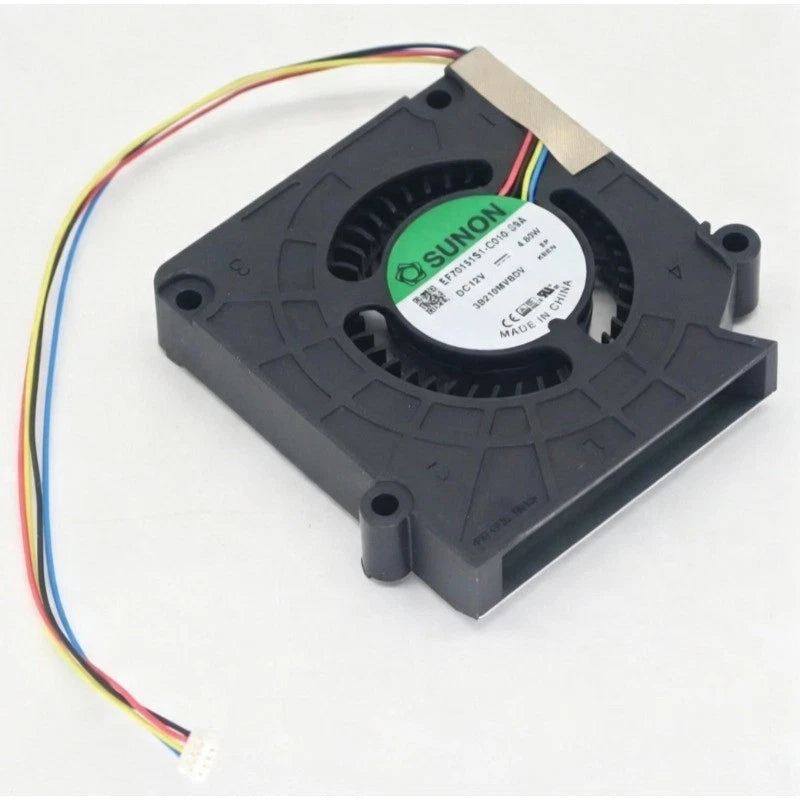

EF70151S1-C010-S9A is a SUNON DC brushless centrifugal cooling blower commonly identified in replacement listings for compact desktop computers and selected electronic display cooling assemblies.

What is the rated voltage of EF70151S1-C010-S9A?
Multiple exact-model commercial listings specify 12 VDC. The fan should be connected only to a compatible regulated DC power and control interface.

What are the dimensions of EF70151S1-C010-S9A?
Several replacement suppliers specify 70 x 70 x 15 mm. Other sellers report approximately 75 x 70 x 15 mm. A dimensioned SUNON mechanical drawing for this complete configuration was not independently located, so confirm the existing fan's housing dimensions, mounting positions and exhaust geometry.

What is the power consumption?
The published electrical power rating is 4.80 W at 12 VDC, as stated in multiple exact-model replacement listings.

What is the rated current?
A calculated current of approximately 0.40 A is obtained by dividing 4.80 W by 12 VDC. This is a calculation from the published electrical rating rather than a separately verified manufacturer current specification.

Is EF70151S1-C010-S9A an axial fan or a centrifugal blower?
It is commonly identified as a centrifugal cooling blower. The shrouded fan directs airflow toward an equipment-specific outlet rather than using the standard open-frame configuration of an axial cooling fan.

What is the rated fan speed?
An exact-model SUNON RPM specification has not been independently verified. Speed values from related EF-series models should not be assigned to this configuration without supporting documentation.

What airflow or static pressure does EF70151S1-C010-S9A provide?
A manufacturer airflow rating in CFM and a maximum static pressure rating were not independently established for the complete C010-S9A configuration. These performance characteristics should be checked against the installed cooling assembly or a suitable manufacturer specification.

What bearing system does EF70151S1-C010-S9A use?
One exact-model replacement supplier identifies a dual ball bearing system. A corresponding manufacturer bearing specification for this complete part number was not independently located.

What is the acoustical noise level?
An exact-model manufacturer noise rating in dB(A) has not been independently verified. Noise depends on fan operating speed, enclosure design, mounting conditions and airflow restrictions.

How is EF70151S1-C010-S9A electrically connected?
Exact-model replacement listings identify four wire leads and a four-pin connector. A speed-control function is reported by a replacement supplier, but the exact connector pinout and signal characteristics were not independently verified. Match the connector housing, wire positions and electrical interface before installation.

What should be checked before ordering EF70151S1-C010-S9A?
Confirm the complete SUNON model number, 12 VDC supply, 4.80 W electrical rating, supplier-listed 70 x 70 x 15 mm size, blower housing geometry, mounting positions, exhaust orientation, four-wire connection, four-pin connector and equipment-specific compatibility. For HP Desktop Mini applications, compare part references 747932-001 and 768424-001 with the installed assembly. Other fan references, including BUB0712HH-DH09 and PVB070E12H-P01, may be listed as alternatives but should not be assumed electrically or mechanically identical. Verify whether the required replacement is a standalone blower or a complete cooling assembly before purchasing.
