Technical Specifications

Key Features

Applications

• Multimedia projector internal forced-air cooling
• Projector ventilation fan maintenance and replacement
• Industrial electronic equipment enclosure cooling
• Compact switching power supply ventilation
• Network and communication equipment thermal management
• Electronic instrumentation cooling assemblies
• Equipment requiring compatible fan rotation-status monitoring
• Replacement of matching 80 mm 12 VDC three-wire axial fans

Purchase Information

We support online purchase of the SUNON EE80251S1-D170-F99 fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is SUNON EE80251S1-D170-F99?

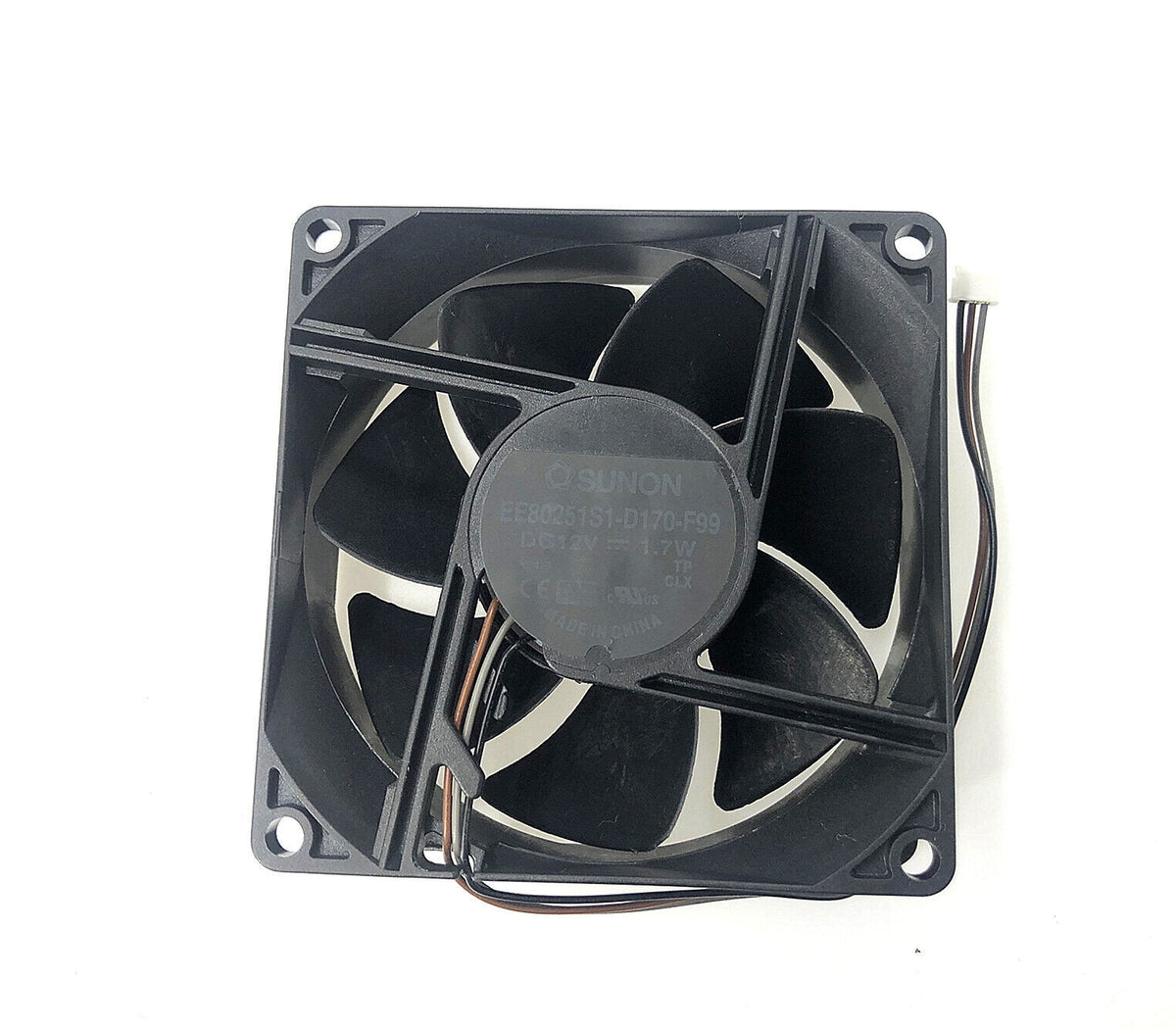

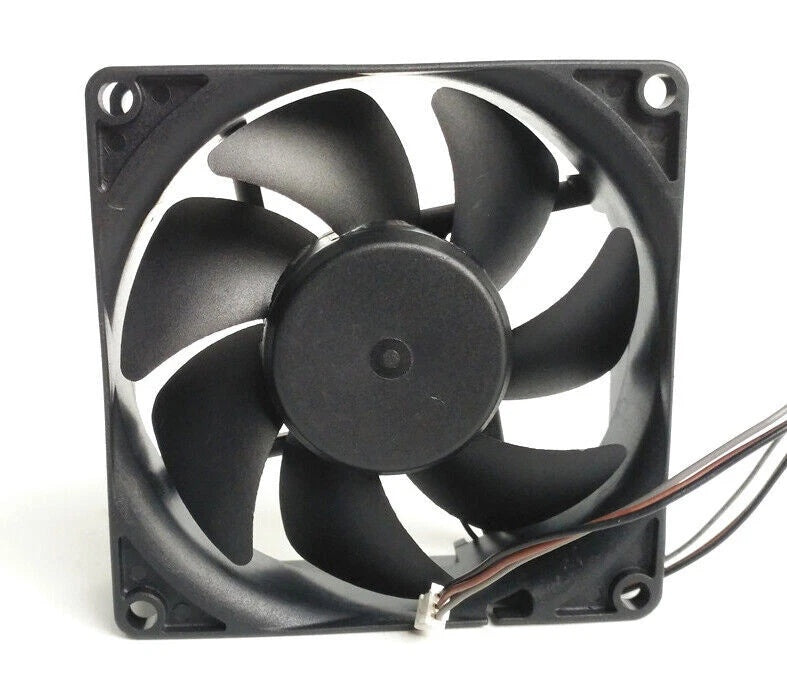

EE80251S1-D170-F99 is a SUNON EE-series DC brushless axial cooling fan featuring a nominal 80 x 80 x 25 mm housing, 12 VDC supply and a three-wire electrical connection.

What is the rated voltage of EE80251S1-D170-F99?
Multiple exact-model commercial listings specify 12 VDC. A supplier reports an operating voltage range of 4.5-13.8 VDC, but this range has not been independently confirmed in an exact D170-F99 manufacturer datasheet.

What are the dimensions of EE80251S1-D170-F99?
The nominal dimensions are 80 x 80 x 25 mm. The related SUNON EE8025 series drawing specifies 71.5 mm mounting-hole center spacing and 4.3 mm mounting holes. Confirm the actual assembly dimensions and cable exit position before installation.

What is the rated current?
An exact-model supplier lists 0.14 A. SUNON's related EE80251S1-0000-A99 catalog model is rated at 0.145 A. Because these have different customer and function suffixes, the complete D170-F99 electrical rating should be confirmed against the supplied fan label.

What is the power consumption?
Multiple replacement-part listings specify 1.7 W at 12 VDC for the complete EE80251S1-D170-F99 model.

What is the rated fan speed?
Commercial exact-model listings report 3200 RPM. This is consistent with SUNON's documented EE80251S1-0000-A99 catalog performance, but a separate exact D170-F99 manufacturer performance sheet was not independently located.

What airflow does EE80251S1-D170-F99 provide?
The published commercial airflow rating is 41.0 CFM, approximately 69.7 m³/h. This also matches the related EE80251S1 standard catalog configuration.

What is the maximum static pressure?
Exact-model suppliers report 0.18 inH2O, approximately 44.8 Pa. The same figure appears in SUNON's related EE80251S1 series performance table.

What bearing system does EE80251S1-D170-F99 use?
The complete model is identified as a sleeve bearing fan by commercial suppliers. The S designation in SUNON's model numbering system also identifies sleeve bearing construction.

What is the acoustical noise level?
Exact-model product listings report 33 dB(A), consistent with the related EE80251S1 catalog model. Actual installed noise can vary with mounting conditions, enclosure design and airflow restrictions.

How is EE80251S1-D170-F99 electrically connected?
Replacement listings specify three wire leads, commonly terminating in a three-pin connector. SUNON defines the F99 suffix as automatic restart with an R-type rotation detector signal on the third wire. This should not automatically be treated as a frequency-generator tachometer output or PWM control input. Confirm the actual connector, wire colors, polarity, output levels and signal requirements before integration.

What should be checked before ordering EE80251S1-D170-F99?
Confirm the complete SUNON model number including D170-F99, 12 VDC supply, 1.7 W rating, 80 x 80 x 25 mm frame dimensions, mounting-hole spacing, sleeve bearing type, three-wire connection, three-pin connector, wire polarity, R-type rotation detector interface, airflow direction and required cooling performance. The related EE80251S1-0000-A99 is a different functional configuration, while EE80252S1 models use 24 VDC. Do not automatically substitute these versions without verifying electrical, signal and mechanical compatibility.
