AC Axial Fan Design
Designed for axial airflow in industrial equipment cooling and ventilation applications.
SUNON
SUNON A2175-HBT AC Axial Fan 220-240VAC 50/60Hz
$31.05
Available
PRODUCT GALLERY
01 / 3

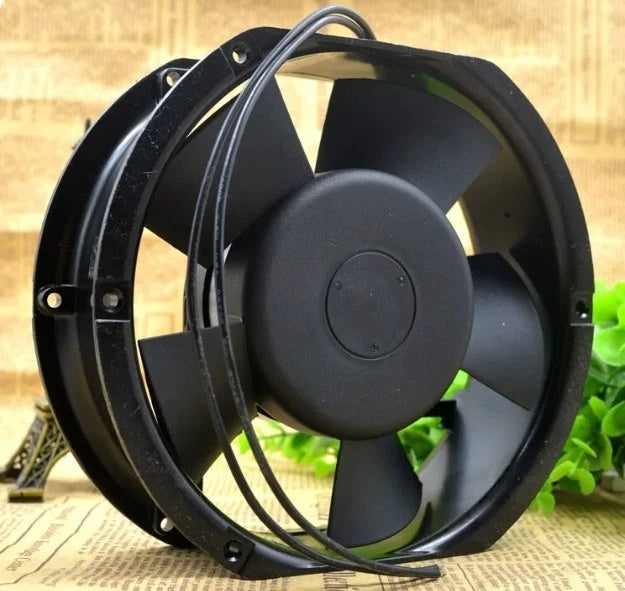

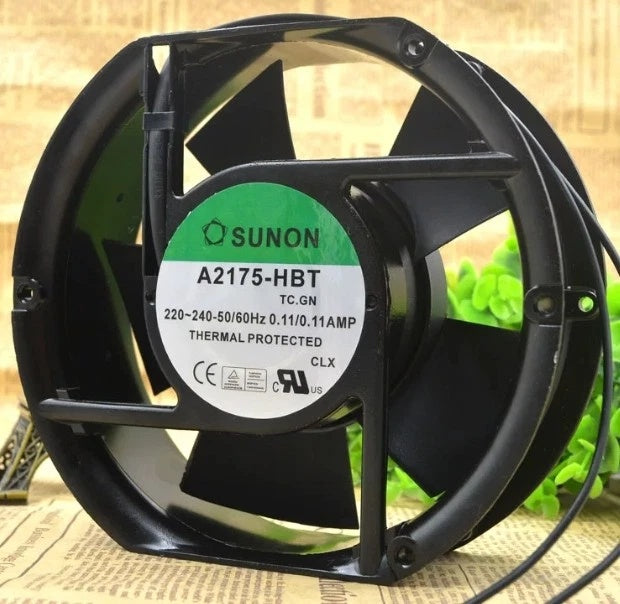

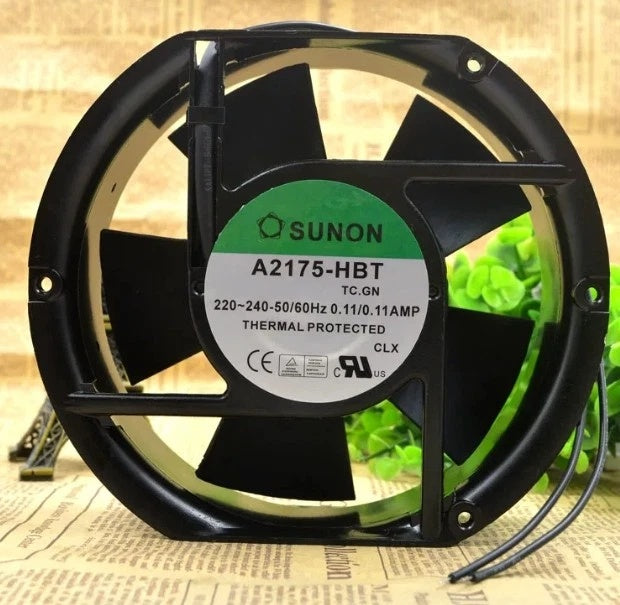

Product images for part identification
SUNON
SUNON A2175-HBT AC Axial Fan 220-240VAC 50/60Hz
PRODUCT PRICE
USD
$31.05
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SUNON |
| Model Number | A2175-HBT |
| Product Category | AC Axial Fan |
| Rated Voltage | 220-240 VAC |
| Rated Frequency | 50/60 Hz |
| Fan Dimensions | 171.5 x 151.5 x 51 mm |
| Bearing Type | Ball Bearing |
| Frame Material | Aluminum Alloy |
| Power Connection | Terminals |
| Operating Voltage Range | 150-250 VAC |
Key Features
220-240 VAC Supply
Specified for a rated AC supply voltage of 220-240 VAC. Verify the power supply requirements before installation.
50/60 Hz Operation
Supports the documented 50 Hz and 60 Hz AC supply frequencies.
Ball Bearing System
Uses a ball-bearing configuration according to the published product specifications.
Aluminum Alloy Frame
The fan frame is identified as aluminum alloy in the product catalog.
Terminal Power Connection
Uses a terminal-type power connection. Check the electrical connection arrangement before installation.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control panel airflow management
- Industrial machinery ventilation
- Power equipment cooling
- Electronic enclosure ventilation
- Industrial ventilation systems
- Equipment air circulation
Purchase Information
We support online purchase of the SUNON A2175-HBT AC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SUNON A2175-HBT?
SUNON A2175-HBT is an AC axial fan designed for equipment cooling and ventilation applications.
What voltage does A2175-HBT use?
The product catalog identifies a rated voltage of 220-240 VAC. Confirm the actual equipment supply requirements before installation.
What operating frequency does this fan support?
The listed rated frequency is 50/60 Hz.
What are the dimensions of A2175-HBT?
The catalog lists dimensions of approximately 171.5 x 151.5 x 51 mm. Verify the mounting layout against the installation requirements.
What type of bearing does this fan use?
The catalog identifies a ball-bearing configuration.
What material is the fan frame made from?
The published catalog identifies the frame material as aluminum alloy.
What type of electrical connection does A2175-HBT use?
The listed power connection type is terminals. Check the terminal arrangement and wiring documentation before connecting the fan.
What is the operating voltage range?
The detailed specification for the A2175-HBT TC.R.GN variant lists an operating voltage range of 150-250 VAC. Confirm the complete part number because specifications can differ between variants.
Can A2175-HBT be considered for equipment cooling?
It can be considered for equipment ventilation and cooling after the airflow requirements, electrical supply and mechanical installation have been checked.
What should be checked before ordering?
Verify the complete model and part number, rated voltage, frequency, dimensions, bearing type, terminal arrangement and required airflow against the existing installation.
Can A2175-HBT be used in place of another axial fan?
Do not assume interchangeability from dimensions alone. Compare electrical, airflow, mounting and connection requirements before selecting a fan for an existing system.
Need help confirming a model?
Send us your part number and technical requirements.
