In-Line Installation
The ZU05L is an in-line vacuum ejector that can be installed directly in piping runs, saving space in compact pneumatic circuits.
SMC

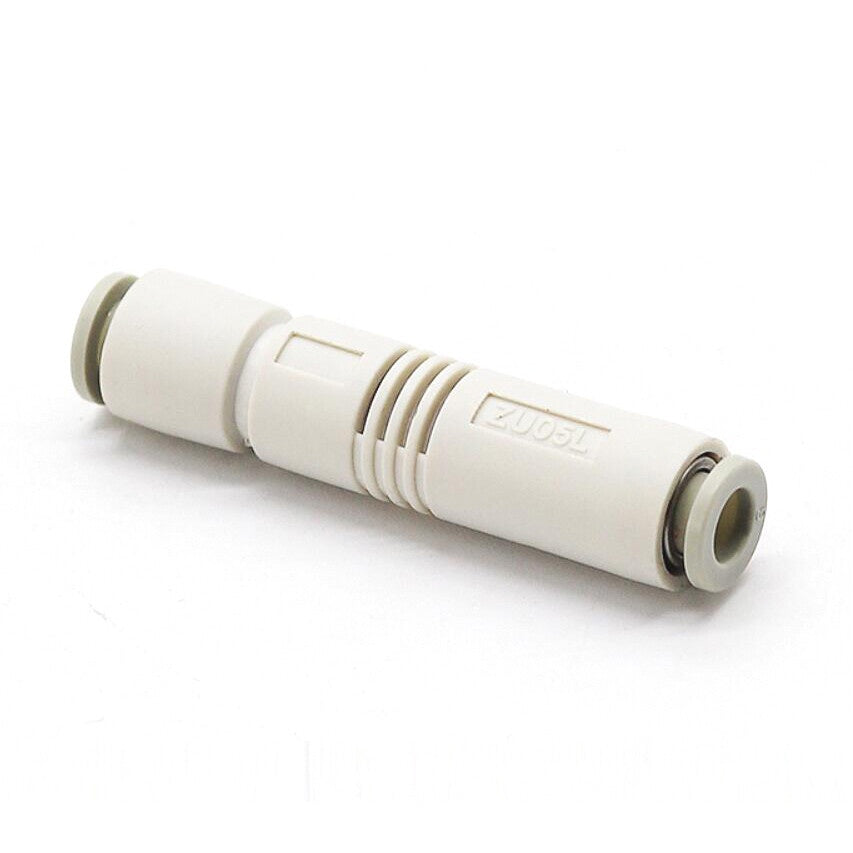

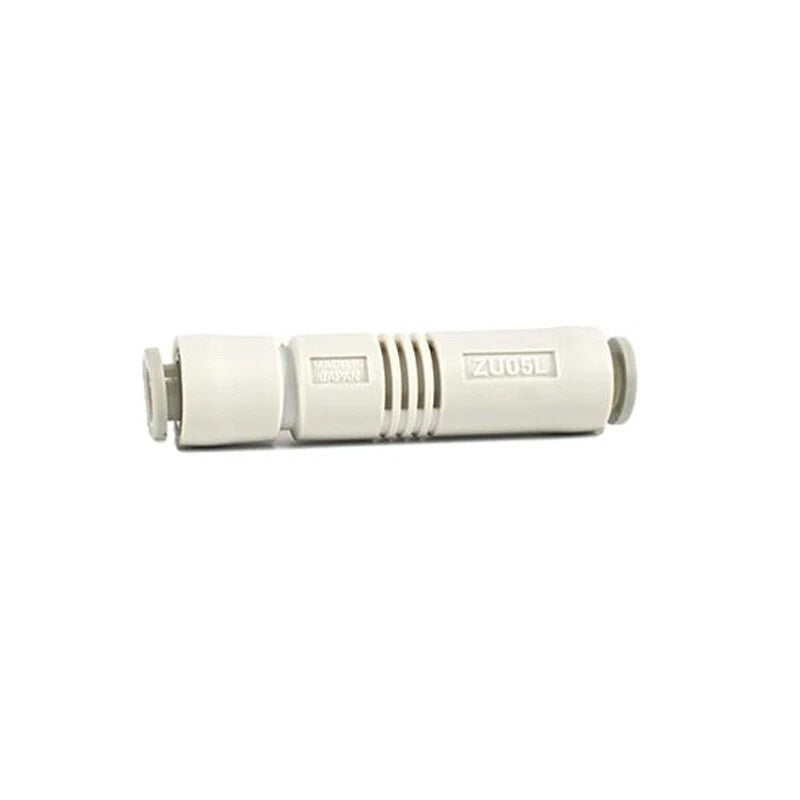

SMC ZU05L Vacuum Ejector 0.5mm Nozzle
$8.95
Available
PRODUCT GALLERY
01 / 3
Product images for part identification
SMC
SMC ZU05L Vacuum Ejector 0.5mm Nozzle
PRODUCT PRICE
USD
$8.95
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SMC |
| Model Number | ZU05L |
| Product Category | Vacuum Ejector |
| Product Family | ZU Series |
| Type | In-Line, Large Flow Type |
| Nozzle Diameter | 0.5 mm |
| Maximum Vacuum Pressure | -48 kPa |
| Maximum Suction Flow | 12 L/min (ANR) |
| Air Consumption | 14 L/min (ANR) |
| Standard Supply Pressure | 0.45 MPa |
| Maximum Operating Pressure | 0.6 MPa |
| Fluid | Air |
| Operating Temperature | 5°C to 50°C |
| Mass | 6.5 g |
Key Features
0.5 mm Nozzle, Large Flow Type
The 0.5 mm nozzle and large-flow design deliver a maximum suction flow of 12 L/min (ANR) with air consumption of 14 L/min (ANR) at 0.45 MPa supply.
-48 kPa Maximum Vacuum
Generates a maximum vacuum pressure of -48 kPa under standard supply pressure conditions, suitable for pick-and-place and light holding duties.
Lightweight Resin Body
The resin body construction contributes to a mass of just 6.5 g, minimizing load on end-of-arm tooling and tubing.
One-Touch Fitting Integrated
The ZU series incorporates one-touch tube fittings for straightforward connection to SUP and VAC ports in standard pneumatic tubing systems.
Applications
- End-of-arm vacuum gripping in pick-and-place systems
- Small part handling in electronics assembly
- Packaging film and label transfer
- Workpiece clamping on machining fixtures
- Vacuum suction for printed circuit board handling
- Lightweight material positioning
- Compact pneumatic circuit vacuum generation
- Point-of-use vacuum for automated stations
Purchase Information
We support online purchase of the SMC ZU05L Vacuum Ejector. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SMC ZU05L? The ZU05L is an in-line vacuum ejector from the SMC ZU series with a 0.5 mm nozzle, classified as a large-flow type for pneumatic vacuum generation.
What is the nozzle diameter of the ZU05L? The ZU05L has a nozzle diameter of 0.5 mm.
What vacuum pressure can the ZU05L generate? The maximum vacuum pressure is -48 kPa under standard supply pressure of 0.45 MPa.
What is the maximum suction flow of the ZU05L? The maximum suction flow is 12 L/min (ANR).
What air consumption does the ZU05L require? Air consumption is 14 L/min (ANR) at a supply pressure of 0.45 MPa.
What is the operating temperature range? The ZU05L is specified for fluid and ambient temperatures of 5°C to 50°C.
What fluid is used with the ZU05L? The operating fluid is air.
What is the mass of the ZU05L? The ZU05L weighs approximately 6.5 g.
How is the ZU05L installed? The ZU05L is an in-line type ejector that is installed directly in the piping run between the SUP and VAC ports.
What should be checked before ordering? Confirm the required nozzle diameter (0.5 mm), vacuum pressure and suction flow requirements, supply pressure, tubing connection sizes, and operating temperature compatibility.
