Integrated Valve Function
The ZK2A12K5AL-06 combines an ejector with supply and release valves (both N.C.), allowing vacuum generation and release to be controlled directly at the unit.
SMC
SMC ZK2A12K5AL-06 Vacuum Ejector 1.2mm Nozzle 24VDC
$196.16
Available
PRODUCT GALLERY
01 / 1

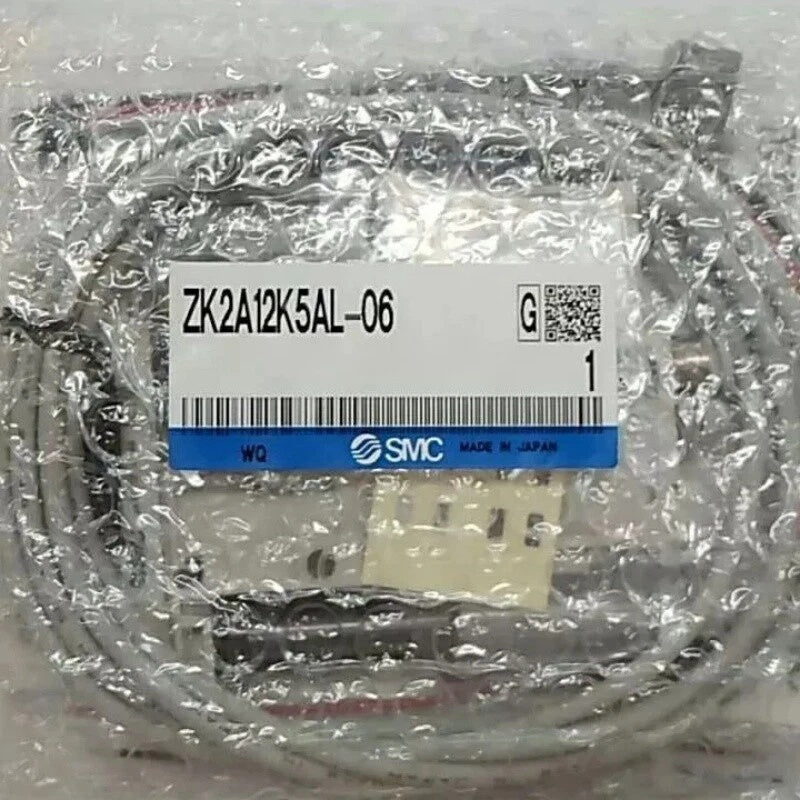

Product images for part identification
SMC
SMC ZK2A12K5AL-06 Vacuum Ejector 1.2mm Nozzle 24VDC
PRODUCT PRICE
USD
$196.16
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SMC |
| Model Number | ZK2A12K5AL-06 |
| Product Category | Vacuum Ejector |
| Product Family | ZK2 Series |
| Type | Ejector Unit with Supply and Release Valves |
| Nozzle Diameter | 1.2 mm |
| Rated Voltage | 24 VDC |
| Supply / Release Valve Combination | Supply N.C. / Release N.C. |
| Vacuum Port Size | ø6 mm One-Touch Fitting |
| Pressure Switch | Vacuum Pressure Switch, 0 to -101 kPa, NPN 2 Outputs |
| Connector | L-Type Plug Connector with Lead Wire |
Key Features
1.2 mm Nozzle
The 1.2 mm nozzle supports vacuum generation suitable for a range of industrial pick-and-place and holding applications.
Built-In Vacuum Pressure Switch
A vacuum pressure switch with a range of 0 to -101 kPa and NPN 2 outputs is integrated for local monitoring and control feedback.
24 VDC Solenoid Valves
The supply and release valves are rated for 24 VDC operation, compatible with standard industrial control power.
L-Type Plug Connector
The L-type plug connector with lead wire simplifies electrical connection and maintenance.
Applications
- Vacuum gripping on robotic end-effectors
- Pick-and-place material handling
- Packaging and labeling automation
- Workpiece clamping on assembly fixtures
- Electronic component handling
- Automated vacuum chuck systems
- Point-of-use vacuum generation with control valves
- General factory automation vacuum circuits
Purchase Information
We support online purchase of the SMC ZK2A12K5AL-06 Vacuum Ejector. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SMC ZK2A12K5AL-06? The ZK2A12K5AL-06 is a vacuum ejector unit from the SMC ZK2 series with an integrated supply valve, release valve, and vacuum pressure switch.
What is the nozzle diameter of the ZK2A12K5AL-06? The nozzle diameter is 1.2 mm.
What is the rated voltage? The unit is rated for 24 VDC.
What valve combination is used? The K in the model number indicates a supply valve N.C. and release valve N.C. combination.
What pressure switch is integrated? The unit includes a vacuum pressure switch with a range of 0 to -101 kPa and NPN 2 outputs.
What is the vacuum port size? The 06 suffix indicates a ø6 mm one-touch fitting for the vacuum port.
What type of electrical connection is provided? The unit uses an L-type plug connector with lead wire.
What is the function of the integrated valves? The supply valve controls the supply of compressed air to the ejector, and the release valve controls the release of vacuum for quick workpiece detachment.
What should be checked before ordering? Confirm the nozzle diameter (1.2 mm), valve combination (N.C./N.C.), pressure switch output type (NPN, 2 outputs), port size (ø6 mm), and supply voltage (24 VDC).
