Built-In Silencer
The ZH13BSA-08-10 features an integrated silencer in a compact box-type body, reducing exhaust noise at the point of use.
SMC

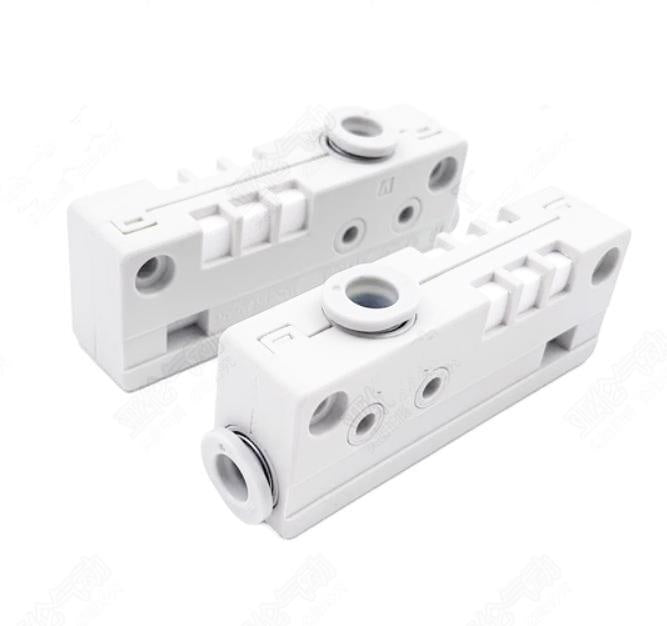

SMC ZH13BSA-08-10 Vacuum Ejector 1.3mm Nozzle 8mm
$214.85
Available
PRODUCT GALLERY
01 / 3

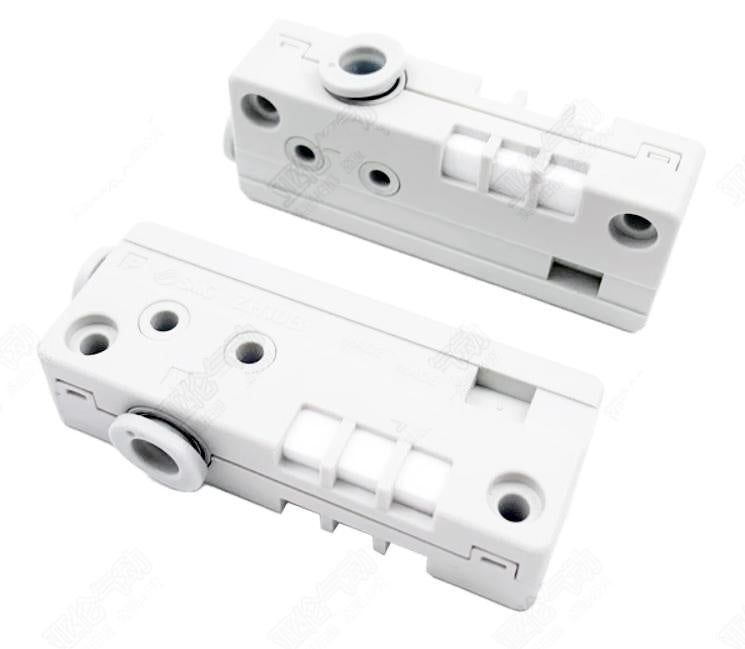

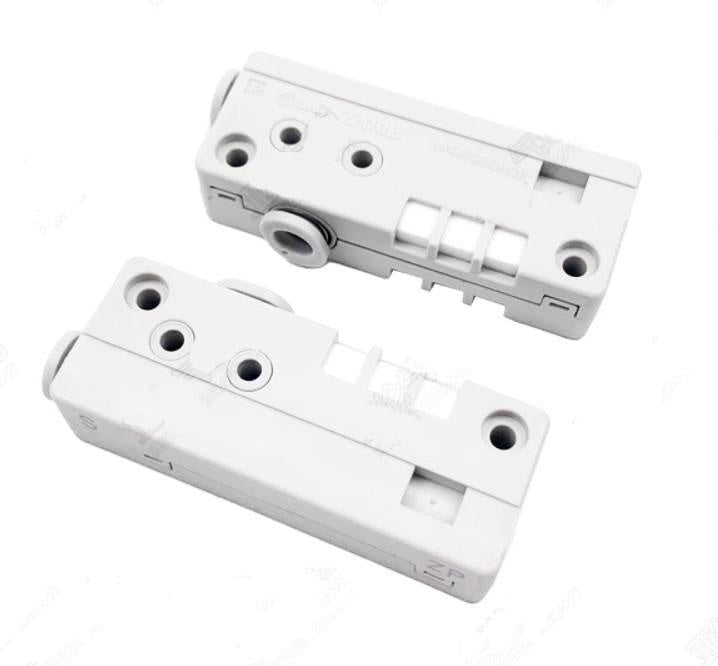

Product images for part identification
SMC
SMC ZH13BSA-08-10 Vacuum Ejector 1.3mm Nozzle 8mm
PRODUCT PRICE
USD
$214.85
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SMC |
| Model Number | ZH13BSA-08-10 |
| Product Category | Vacuum Ejector |
| Product Family | ZH Series |
| Type | Compact Box-Type, Built-In Silencer |
| Nozzle Diameter | 1.3 mm |
| Maximum Vacuum Pressure | -90 kPa (Type S) |
| Maximum Suction Flow | 40 L/min |
| SUP Port | ø8 mm One-Touch Fitting |
| VAC Port | ø10 mm One-Touch Fitting |
| Bracket | With Bracket |
| Dimensions | 77 mm (L) x 20 mm (W) x 32 mm (H) |
| Mass | Approx. 26 g |
Key Features
1.3 mm Nozzle, -90 kPa Vacuum
The 1.3 mm nozzle generates a maximum vacuum pressure of -90 kPa (Type S) with a suction flow of 40 L/min.
ø8 SUP / ø10 VAC Ports
The unit is configured with an ø8 mm one-touch fitting for the supply port and an ø10 mm one-touch fitting for the vacuum port.
Compact and Lightweight
With approximate dimensions of 77 x 20 x 32 mm and a mass of about 26 g, the ejector is suited to space-constrained installations.
Mounting Bracket Included
A bracket is provided for direct mounting, simplifying installation on machine frames and end-effectors.
Applications
- Point-of-use vacuum generation on packaging machines
- Material handling end-effectors
- Pick-and-place systems for cartons and film
- Vacuum holding on assembly fixtures
- Food and beverage packaging automation
- Logistics and sorting conveyor vacuum systems
- General industrial vacuum circuits
- Compact vacuum stations with noise reduction needs
Purchase Information
We support online purchase of the SMC ZH13BSA-08-10 Vacuum Ejector. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SMC ZH13BSA-08-10? The ZH13BSA-08-10 is a compact box-type vacuum ejector from the SMC ZH series with a built-in silencer and 1.3 mm nozzle.
What is the nozzle diameter of the ZH13BSA-08-10? The nozzle diameter is 1.3 mm.
What is the maximum vacuum pressure? The maximum vacuum pressure is -90 kPa (Type S).
What is the maximum suction flow? The maximum suction flow is 40 L/min.
What are the port sizes? The unit has an ø8 mm one-touch fitting for SUP and an ø10 mm one-touch fitting for VAC.
Does the ZH13BSA-08-10 have a silencer? Yes. It has a built-in silencer in the compact box-type body.
What are the approximate dimensions and mass? Approximate dimensions are 77 mm (L) x 20 mm (W) x 32 mm (H), with a mass of about 26 g.
Is a mounting bracket included? Yes. The model includes a bracket for mounting.
What is the difference between Type S and Type L? Type S provides a maximum vacuum pressure of -90 kPa, while Type L provides -66 kPa. The ZH13BSA-08-10 uses Type S.
What should be checked before ordering? Confirm the nozzle diameter (1.3 mm), vacuum pressure requirement (-90 kPa), suction flow (40 L/min), port sizes (ø8 SUP / ø10 VAC), and available mounting space.
